YTH 1848 XP (954170057-E) - Husqvarna 48" Yard Tractor (2003-01) ELECTRICAL Parts Diagram

48" Yard Tractor

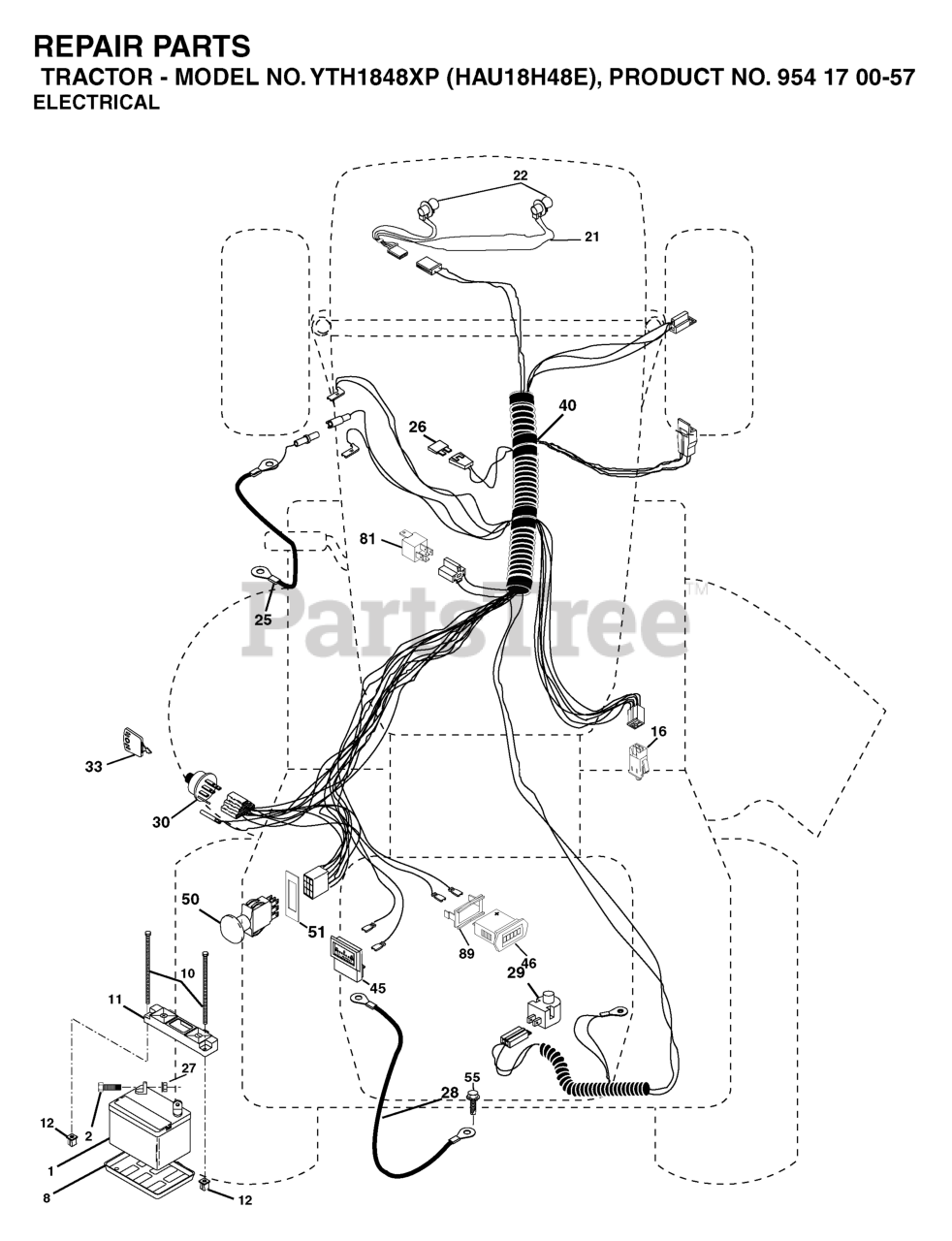

ELECTRICAL Parts Diagram

  • Title

24

Husqvarna 532124780

BATTERY CABLE GT
(Superseded to 532004799)

$17.99

$

In Stock, only 1 left!

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 20+

0

28

Husqvarna 532145491

CABLE GROUND 6 GA 21" 90T BLK

$10.99

$

Usually ships in 3-10 days

0

41

Husqvarna 871110408

BOLT
(Superseded to 596437001)

$3.99

$

In Stock, only 2 left!

0

46

Husqvarna 532169635

HOUR METER
(Superseded to 532169642)

$

$

Not available

1

Husqvarna 532144927

BATTERY 12V .35 AMP
(Superseded to 532123899)

$205.99

$

In Stock, Qty 7

0

33

Husqvarna 532140401

KEY MLD GEN DELTA

$7.49

$

In Stock, Qty 20+

0

12

Husqvarna 532145769

NUT, PUSH NYLON 1/4" BATTERY
(Superseded to 532150177)

$

$

Not available

30

Husqvarna 532175566

IGNITION SWITCH

$35.99

$

In Stock, Qty 20+

0

43

Husqvarna 532178861

SOLENOID
(Superseded to 532146154)

$27.99

$

In Stock, Qty 20+

0

51

Husqvarna 532140405

FRAME RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532145211

BOLT 1/4-20 X 7.5
(Superseded to 532150177)

$

$

Not available

22

Husqvarna 532004152

LIGHTBULB

$5.99

$

In Stock, Qty 20+

0

40

Husqvarna 532179724

HARNESS IGN.

$

$

Not available

55

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

50

Husqvarna 532174651

RP.PTO.SWITCH.8 TERMINAL.BLACK
(Superseded to 582107601)

$31.99

$

In Stock, Qty 20+

0

29

Husqvarna 532160784

PLUNGER SWITCH (COLOR:OLIVE)

$21.99

$

In Stock, only 2 left!

0

8

Husqvarna 532124886

BATTERY TRAY T
(Superseded to 532007603)

$7.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532122822

AMMETER

$33.99

$

In Stock, only 3 left!

0

25

Husqvarna 532146148

CABLE BATTERY 6 GA 22" W/16W

$26.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$7.49

$

In Stock, only 4 left!

0

21

Husqvarna 532175685

HARNESS.ASM.LIGHT WSL

$

$

Not available

27

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

81

Husqvarna 532109748

RELAY.ASSY.T

$23.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532150109

BATTERY HOLDDOWN FRONT MOUNT

$

$

Not available

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$3.99

$

In Stock, Qty 6

0

89

Husqvarna 532169639

BRACKET SNAP-IN HOURMETER

$

$

Not available

26

Husqvarna 532175158

FUSE 20AMP

$5.99

$

In Stock, Qty 5

0
