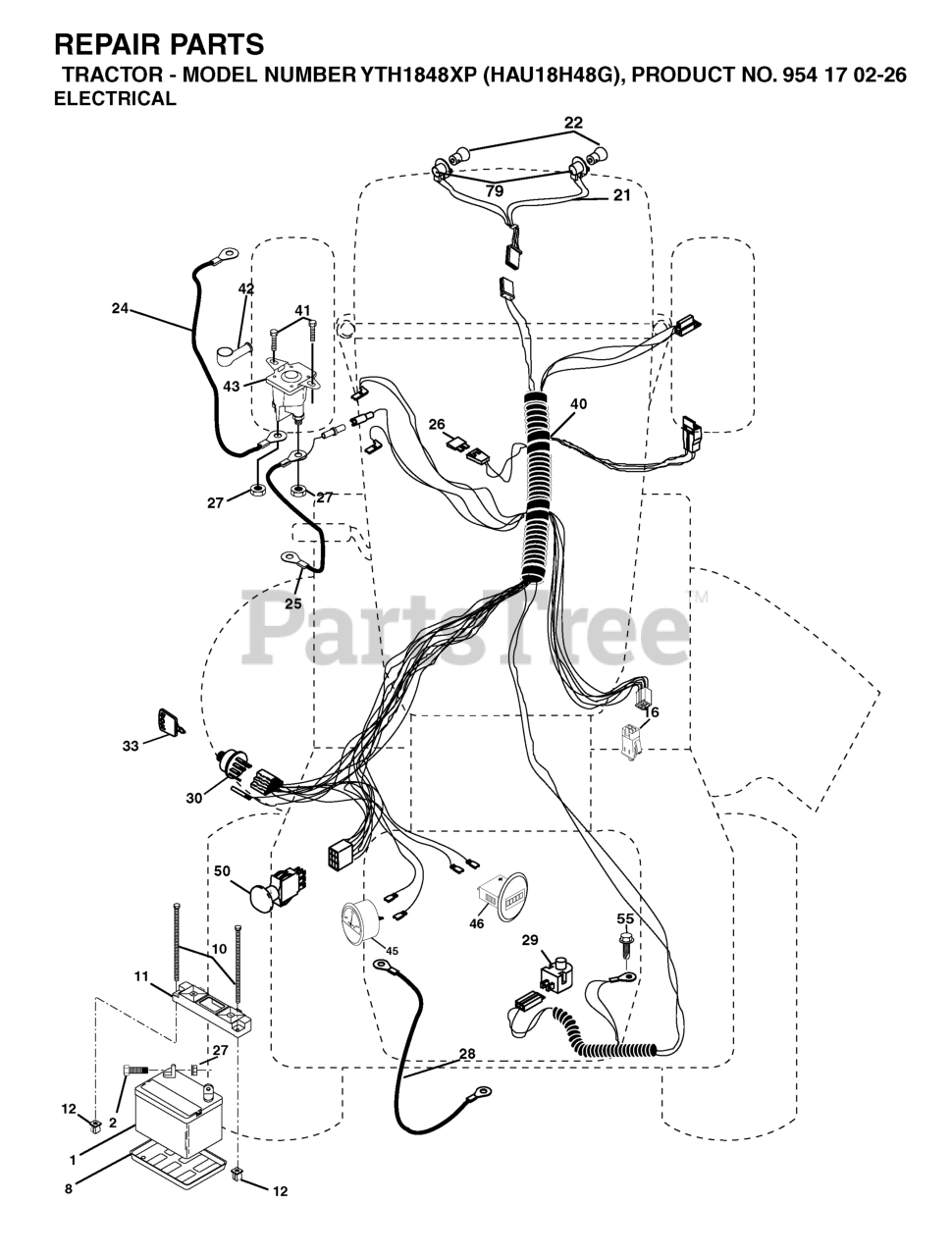

YTH 1848 XP (954170226-G) - Husqvarna 48" Yard Tractor (2004-09) ELECTRICAL Parts Diagram

48" Yard Tractor

ELECTRICAL Parts Diagram

  • Title

55

Husqvarna 817490508

Screw 5/16-18 x 1/2 Hex, Self Tapping 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

45

Husqvarna 532177500

RP AMMETER.ROUND.SILVER.DELTA

$

$

Not available

25

Husqvarna 532146148

CABLE BATTERY 6 GA 22" W/16W

$26.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532008860

NEEDS DESCRIPTION

$

$

Not available

1

Husqvarna 532144927

BATTERY 12V .35 AMP
(Superseded to 532123899)

$205.99

$

In Stock, Qty 7

0

22

Husqvarna 532004152

LIGHTBULB

$5.99

$

In Stock, Qty 20+

0

28

Husqvarna 532145491

CABLE GROUND 6 GA 21" 90T BLK

$10.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532178861

SOLENOID
(Superseded to 532146154)

$27.99

$

In Stock, Qty 20+

0

79

Husqvarna 532175242

BULB HOLDER ASM.

$17.99

$

In Stock, Qty 9

0

12

Husqvarna 532145769

NUT, PUSH NYLON 1/4" BATTERY
(Superseded to 532150177)

$

$

Not available

8

Husqvarna 532124886

BATTERY TRAY T
(Superseded to 532007603)

$7.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532188030

NEEDS DESCRIPTION

$

$

Not available

26

Husqvarna 532175158

FUSE 20AMP

$5.99

$

In Stock, Qty 5

0

21

Husqvarna 532175688

HARNESS.W/LIGHT SOCKET

$53.99

$

Usually ships in 3-10 days

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$3.99

$

In Stock, only 4 left!

0

30

Husqvarna 532175566

IGNITION SWITCH

$35.99

$

In Stock, Qty 20+

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 20+

0

11

Husqvarna 532150109

BATTERY HOLDDOWN FRONT MOUNT

$

$

Not available

27

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 532145211

BOLT 1/4-20 X 7.5
(Superseded to 532150177)

$

$

Not available

41

Husqvarna 817720408

SCREW
(Superseded to 596437001)

$3.99

$

In Stock, only 2 left!

0

50

Husqvarna 532174651

RP.PTO.SWITCH.8 TERMINAL.BLACK
(Superseded to 582107601)

$31.99

$

In Stock, Qty 20+

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$7.49

$

In Stock, only 4 left!

0

46

Husqvarna 532177501

RP HOURMETER SNAP-IN

$

$

Not available

33

Husqvarna 532140401

KEY MLD GEN DELTA

$7.49

$

In Stock, Qty 20+

0

29

Husqvarna 532121305

RP.SWITCH.PLUNGER.NC.GRAY
(Superseded to 532421062)

$15.99

$

In Stock, Qty 14

0
