YTH 18542 (960130002-02) - Husqvarna 42" Yard Tractor (2008-02) Mower Deck Parts Diagram

42" Yard Tractor

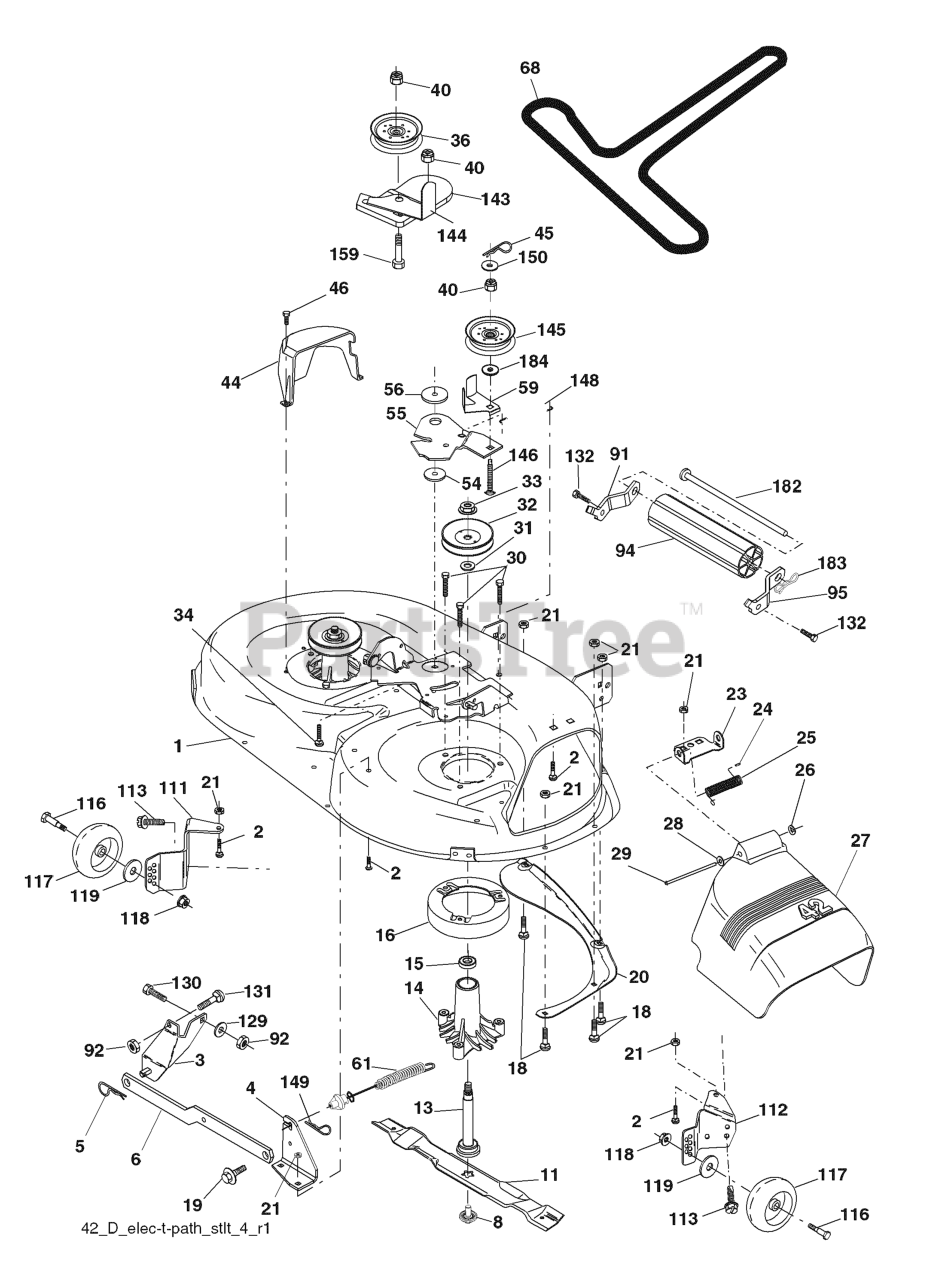

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532176922

DECK SVC 42"
(Superseded to 532176027)

$376.99

$

Usually ships in 3-10 days

0

2

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

3

Husqvarna 532138017

BRKT ASM SWAY BAR
(Superseded to 531165401)

$20.99

$

In Stock, Qty 13

0

4

Husqvarna 532165460

BRACKET SWAY BAR 42" DECK

$13.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

6

Husqvarna 532178024

BAR SWAY DECK
(Superseded to 531149301)

$13.99

$

In Stock, only 2 left!

0

8

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

Note: (The following blades are available)

$9.49

$

In Stock, Qty 20+

0

11

Husqvarna 532138971

42" HI-LIFT BLADE

Note: (for bagging and discharging)

$20.99

$

In Stock, Qty 20+

0

11

Husqvarna 532134149

BLADE.42".MULCH

Note: (for mulching mowers only)

$14.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532139775

BLADE.42"MULCH.PREMIUM
(Superseded to 594893101)

Note: (For better wear when mulching)

$

$

Not available

13

Husqvarna 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$62.99

$

In Stock, Qty 20+

0

14

Husqvarna 532187281

RP.HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$62.99

$

In Stock, Qty 20+

0

15

Husqvarna 532110485

BEARING

$14.99

$

In Stock, Qty 20+

0

16

Husqvarna 532174493

STRIPPER.MANDREL.ROUND.BLACK
(Superseded to 531167701)

$10.99

$

In Stock, Qty 20+

0

18

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.49

$

In Stock, Qty 20+

0

19

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available

20

Husqvarna 532159770

BAFFLE.VORTEX
(Superseded to 531167001)

$17.99

$

In Stock, only 3 left!

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

23

Husqvarna 532177563

BRKT, DEFL. MOWER
(Superseded to 529845901)

$5.99

$

In Stock, Qty 14

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 532123713

SPRING TORSION

$7.99

$

In Stock, Qty 16

0

26

Husqvarna 532110452

NUT PUSH M

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 532171859

SHIELD DEFLECTOR
(Superseded to 532130968)

$43.99

$

In Stock, Qty 20+

0

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga.

$

$

Not available

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$6.99

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$1.49

$

In Stock, Qty 20+

0

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$5.99

$

In Stock, Qty 20+

0

32

Husqvarna 532153535

PULLEY/MANDREL
(Superseded to 532173436)

$20.99

$

In Stock, Qty 20+

0

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$2.49

$

In Stock, Qty 20+

0

34

Husqvarna 872110612

BOLT.3/8-16X1.50
(Superseded to 596136101)

$3.49

$

In Stock, Qty 12

0

36

Husqvarna 532173438

PULLEY.IDLER.FLAT
(Superseded to 597025001)

$28.99

$

In Stock, Qty 20+

0

40

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

44

Husqvarna 532140088

GUARD MANDREL LH BLACK

$39.99

$

In Stock, Qty 7

0

45

Husqvarna 532124788

RETAINER M
(Superseded to 532004497)

$4.99

$

In Stock, Qty 20+

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

54

Husqvarna 532178515

WASHER

$6.99

$

In Stock, Qty 20+

0

55

Husqvarna 532155046

ARM IDLER 42" MOWER LT/YT
(Superseded to 531166601)

$22.99

$

In Stock, Qty 20+

0

56

Husqvarna 532122052

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, Qty 20+

0

59

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$5.99

$

In Stock, Qty 20+

0

61

Husqvarna 532174882

SPRING EXT ELEC CLUTCH

$20.99

$

In Stock, Qty 9

0

68

Husqvarna 532174883

V-BELT PRIMARY 42"

$51.99

$

In Stock, Qty 20+

0

91

Husqvarna 532180532

BRACKET ASM NOSEROLLER LH
(Superseded to 531151201)

$5.99

$

In Stock, Qty 8

0

92

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

94

Husqvarna 532132264

NOSE ROLLER

$37.99

$

In Stock, Qty 20+

0

95

Husqvarna 532180533

BRACKET ASM NOSEROLLER RH
(Superseded to 531150601)

$5.99

$

In Stock, only 1 left!

0

111

Husqvarna 532404784

BRKT.WHEEL.GAUGE.LH.42"
(Superseded to 531170801)

$17.99

$

Usually ships in 3-10 days

0

112

Husqvarna 532404785

BRKT.WHEEL.GAUGE.RH.42"
(Superseded to 531170901)

$14.99

$

Usually ships in 3-10 days

0

113

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$5.99

$

In Stock, Qty 20+

0

116

Husqvarna 532124842

BOLT M
(Superseded to 596434402)

$4.99

$

In Stock, Qty 20+

0

117

Husqvarna 532188606

WHEEL.GAGE.HALF.SPOKED
(Superseded to 589527401)

$11.99

$

In Stock, Qty 20+

0

118

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$

$

Not available

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

129

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

130

Husqvarna 874780616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 15

0

131

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

In Stock, only 2 left!

0

132

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 12

0

143

Husqvarna 532157109

BRACKET, ARM IDLER
(Superseded to 529844301)

$9.49

$

In Stock, Qty 14

0

144

Husqvarna 532173441

KEEPER BELT 42" CLUTCH

$7.99

$

In Stock, Qty 17

0

145

Husqvarna 532173437

PULLEY.IDLER.FLAT.PLATED

$28.99

$

In Stock, Qty 17

0

146

Husqvarna 532173443

BOLT CARRIAGE IDLER

$6.99

$

In Stock, Qty 20+

0

148

Husqvarna 532169022

IDLER RETURN SPRING

$4.99

$

In Stock, Qty 20+

0

149

Husqvarna 532165898

SPRING.RETAINER.YELLOW.ZINC

$4.99

$

In Stock, only 2 left!

0

150

Husqvarna 819091210

WASHER LT
(Superseded to 596039801)

$3.49

$

Usually ships in 3-10 days

0

159

Husqvarna 872140614

BOLT
(Superseded to 596987501)

$4.99

$

In Stock, Qty 12

0

182

Husqvarna 532179126

ROD ROLLER NOSE STANDARD

$

$

Not available

183

Husqvarna 532194209

PIN.COTTER.7/16.BOW TI.

$3.49

$

In Stock, Qty 20+

0

184

Husqvarna 819131410

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

184

Husqvarna 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

Note: (Includes housing, shaft assembly, and bearing only - pulley/nut/washer and blade bolt/washers not included)

$62.99

$

In Stock, Qty 20+

0

184

Husqvarna 532418856

DECK.SVC.42"HP.E.GWB.4B418/431

Note: (Std. deck Order separately gauge wheel components Key Nos. 116-119)

$

$

Not available
