YTH 18K42 (960430250-00) - Husqvarna 42" Yard Tractor (2017-09) ENGINE Parts Diagram

42" Yard Tractor

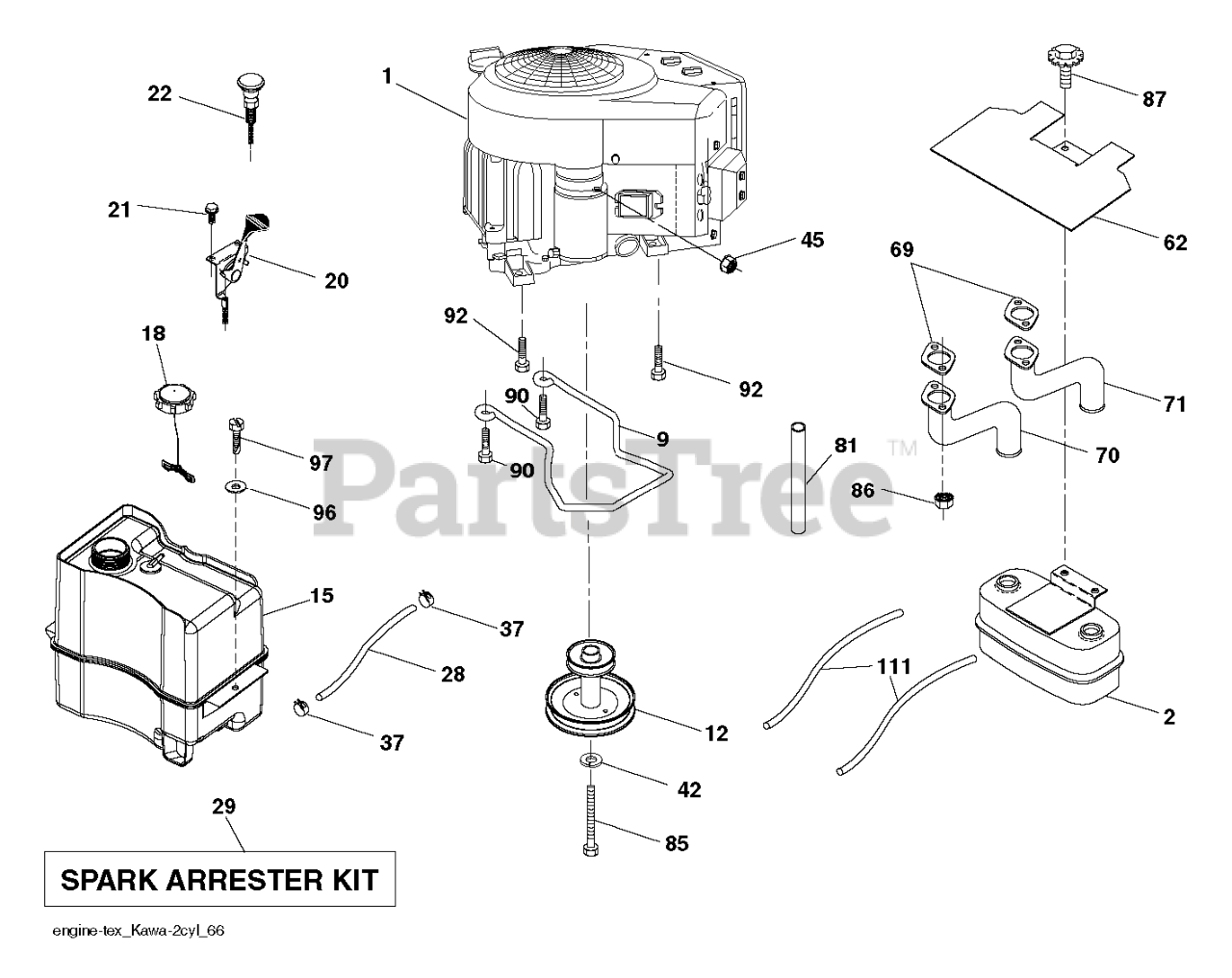

ENGINE Parts Diagram

  • Title

70

Husqvarna 583955601

TUBE.EXHAUST.LH.FR961/FR730

Note: LH

$37.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

15

Husqvarna 532433004

TANK.ASM.FT.2.5GAL.W/CAP.EPA17
(Superseded to 532433005)

$

$

Not available

2

Husqvarna 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET

$44.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 14

0

96

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 587044820

HOSE 1/4" LOW PERMEATION FUEL

$7.49

$

In Stock, Qty 11

0

69

Husqvarna 532178151

GASKET

$2.49

$

In Stock, Qty 13

0

1

000000000

Note: ENGINE KAWA MODEL NO. FR600V-AS11 (581477001)

$

$

Not available

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

87

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 15

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

22

Husqvarna 532189541

CONTROL, CHOKE
(Superseded to 532187768)

$37.99

$

In Stock, only 1 left!

0

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$6.49

$

In Stock, only 4 left!

0

20

Husqvarna 532412165

CONTROL.THROTTLE.COBRA.BLACK

$44.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$4.99

$

In Stock, Qty 13

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532438596

CAP.2.25'.VENTED.TETHER .EPA

$37.99

$

In Stock, only 1 left!

0

111

Husqvarna 532414119

RP PURGE LINE
(Superseded to 532448562)

$

$

Not available

9

Husqvarna 501832601

KEEPER.BELT.ENG.4.25"2.BLT.431
(Superseded to 501832602)

$

$

Not available

71

Husqvarna 583955701

TUBE.EXHAUST.RH.FR961/FR730

Note: RH

$37.99

$

In Stock, only 1 left!

0

85

Husqvarna 501606501

BOLT.HEX.7/16-20X4.GR5.1.5BLUE

$4.99

$

In Stock, only 4 left!

0

12

Husqvarna 586478501

ENGINE.PULLEY

$40.99

$

In Stock, only 3 left!

0
