YTH 18K46 (960430144-00) - Husqvarna 46" Yard Tractor (2012-08) ENGINE Parts Diagram

46" Yard Tractor

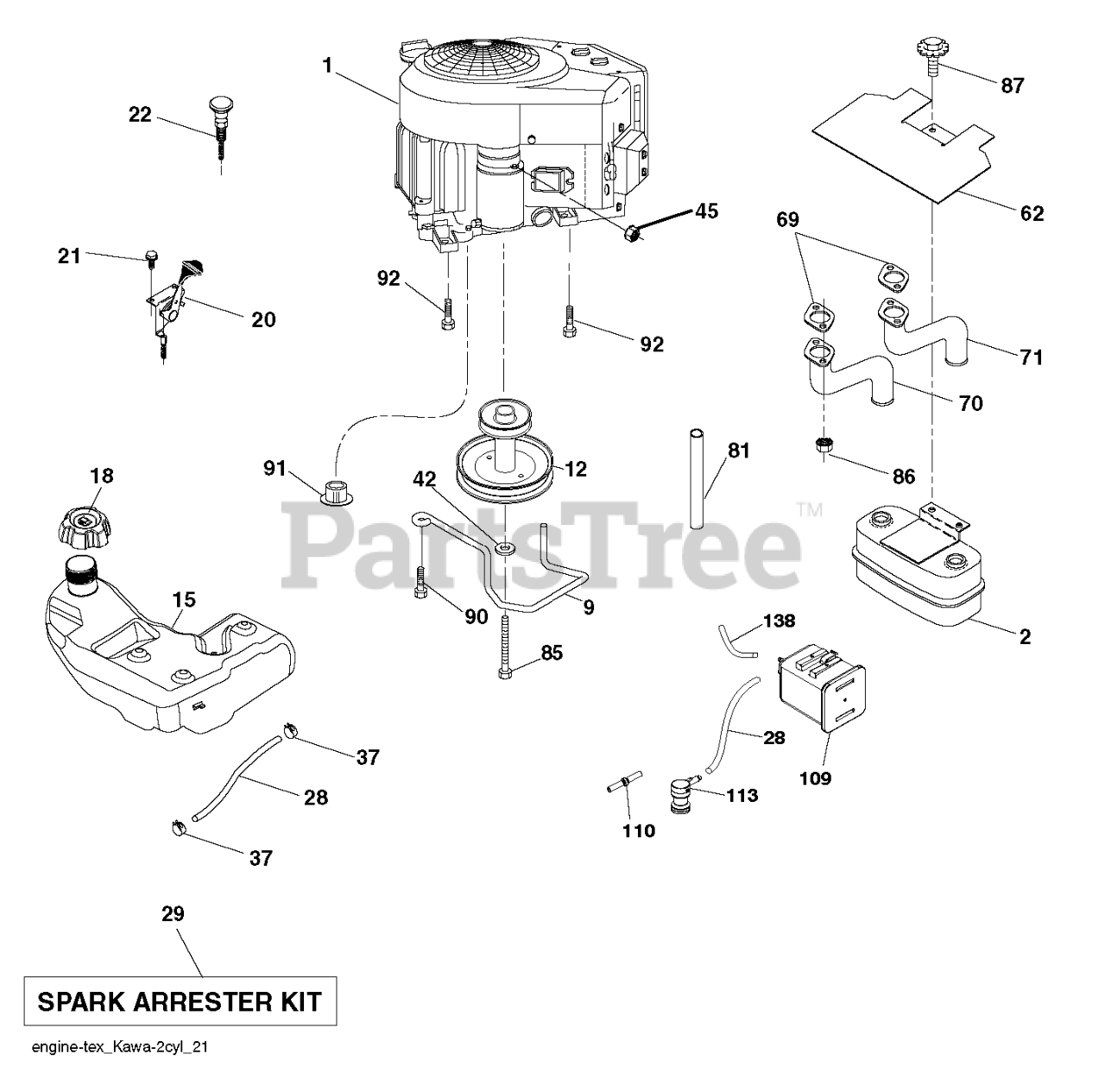

ENGINE Parts Diagram

  • Title

1

000000000

Note: ENGINE KAWA MODEL NO FR600V-XXXX (581477001)

$

$

Not available

2

Husqvarna 532445962

MUFFLER.ASM.TWN.EXTNDED.DFLCTR
(Superseded to 589818702)

$71.99

$

In Stock, Qty 17

0

9

Husqvarna 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 596501502)

$14.99

$

In Stock, only 1 left!

0

12

Husqvarna 532405472

RP_PULLEY ENGINE

$37.99

$

In Stock, only 2 left!

0

15

Husqvarna 532141517

$

$

Currently unavailable

18

Husqvarna 532439208

CAP.ASM.FL.RITCH.3"E10.SYM.498

$41.99

$

In Stock, only 2 left!

0

20

Husqvarna 532412165

CONTROL.THROTTLE.COBRA.BLACK

$35.99

$

In Stock, only 1 left!

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

$3.99

$

In Stock, Qty 13

0

22

Husqvarna 532189541

CONTROL, CHOKE
(Superseded to 532187768)

$37.99

$

In Stock, only 2 left!

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$27.99

$

In Stock, only 2 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 2 left!

0

69

Husqvarna 532178151

GASKET

$2.49

$

In Stock, Qty 20+

0

70

Husqvarna 532424765

TUBE.EXHAUST.LH.FR961/FR730
(Superseded to 583955601)

$33.99

$

In Stock, only 4 left!

0

71

Husqvarna 532424766

TUBE.EXHAUST.RH.FR961/FR730
(Superseded to 583955701)

$33.99

$

In Stock, only 2 left!

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 13

0

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$3.49

$

In Stock, only 1 left!

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$3.99

$

In Stock, Qty 5

0

87

Husqvarna 537171877

BOLT 5/1618UNC X 3/4 W/ SEMS
(Superseded to 532171877)

$5.99

$

In Stock, Qty 10

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

91

Husqvarna 532187495

BUSHING.1.375OD

$5.99

$

In Stock, only 2 left!

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

109

Husqvarna 532414114

CANNISTER, CARBON

$68.99

$

Usually ships in 3-10 days

0

110

Husqvarna 532414118

VALVE.ASM.ANTI-SLOSH

$27.99

$

Usually ships in 3-10 days

0

113

Husqvarna 532414127

VALVE.SLANT.CARTRDG.90 DEG.TEX
(Superseded to 597791601)

$14.99

$

In Stock, only 2 left!

0

138

Husqvarna 532420718

PURGE.LINE.36"REAR.CALIFORNIA

$5.99

$

Usually ships in 3-10 days

0
