YTH 18K46 (960430268-00) - Husqvarna 46" Yard Tractor (2017-09) ENGINE Parts Diagram

46" Yard Tractor

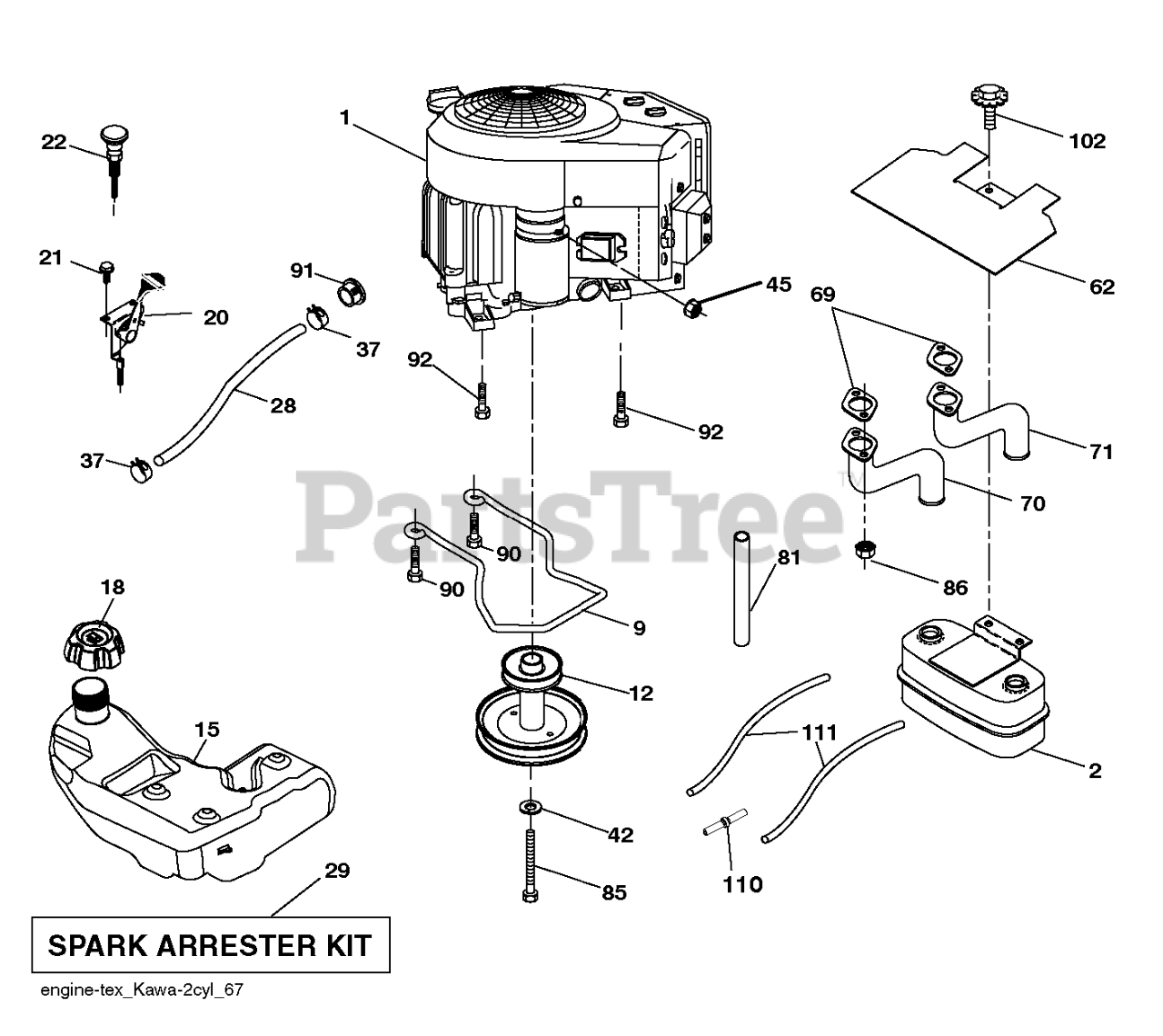

ENGINE Parts Diagram

  • Title

91

Husqvarna 532187495

BUSHING.1.375OD

$5.99

$

In Stock, only 2 left!

0

85

Husqvarna 501606501

BOLT.HEX.7/16-20X4.GR5.1.5BLUE

$3.99

$

In Stock, only 2 left!

0

110

Husqvarna 532414118

VALVE.ASM.ANTI-SLOSH

$27.99

$

Usually ships in 3-10 days

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

28

Husqvarna 587044820

HOSE 1/4" LOW PERMEATION FUEL

$14.99

$

In Stock, Qty 10

0

15

Husqvarna 589900501

TANK.ASM.FUEL.3GA.CARB.17
(Superseded to 532420709)

Note: Fits 2.75" filler neck

$

$

Not available

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 529989702

FUEL CAP
(Superseded to 529989701)

Note: Fits 2.00" filler neck

$29.99

$

Usually ships in 3-10 days

0

86

Husqvarna 532184632

BLADE ADAPTER
(Superseded to 583135201)

$

$

Not available

42

Husqvarna 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.99

$

In Stock, only 2 left!

0

20

Husqvarna 532412165

CONTROL.THROTTLE.COBRA.BLACK

$35.99

$

In Stock, only 1 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 2 left!

0

18

Husqvarna 585124801

CAP ASSY FUEL 3" GRAY

Note: Fits 2.75" filler neck

$23.99

$

In Stock, only 4 left!

0

2

Husqvarna 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET
(Superseded to 589818702)

$71.99

$

In Stock, Qty 17

0

22

Husqvarna 532189541

CONTROL, CHOKE
(Superseded to 532187768)

$37.99

$

In Stock, only 1 left!

0

12

Husqvarna 586728901

PULLEY.ENGINE
(Superseded to 532405472)

$37.99

$

In Stock, only 3 left!

0

70

Husqvarna 583955701

TUBE.EXHAUST.RH.FR961/FR730

$33.99

$

In Stock, only 2 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

$3.99

$

In Stock, Qty 9

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 9

0

71

Husqvarna 583955601

TUBE.EXHAUST.LH.FR961/FR730

$33.99

$

In Stock, only 4 left!

0

1

000000000

Note: ENGINE KAWASAKI MODEL FR600V- (581477001)

$

$

Not available

111

Husqvarna 532414119

RP PURGE LINE
(Superseded to 587044580)

$15.99

$

Usually ships in 3-10 days

0

9

Husqvarna 501832602

KEEPER.BELT.ENG.4.25"2.BLT.431
(Superseded to 596501502)

$14.99

$

In Stock, only 2 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

69

Husqvarna 532185909

GASKET.EXHAUST.KOHLER

$4.99

$

In Stock, Qty 20+

0
