YTH 2042 (960130006-01) - Husqvarna 42" Yard Tractor (2005-10) Engine Parts Diagram

42" Yard Tractor

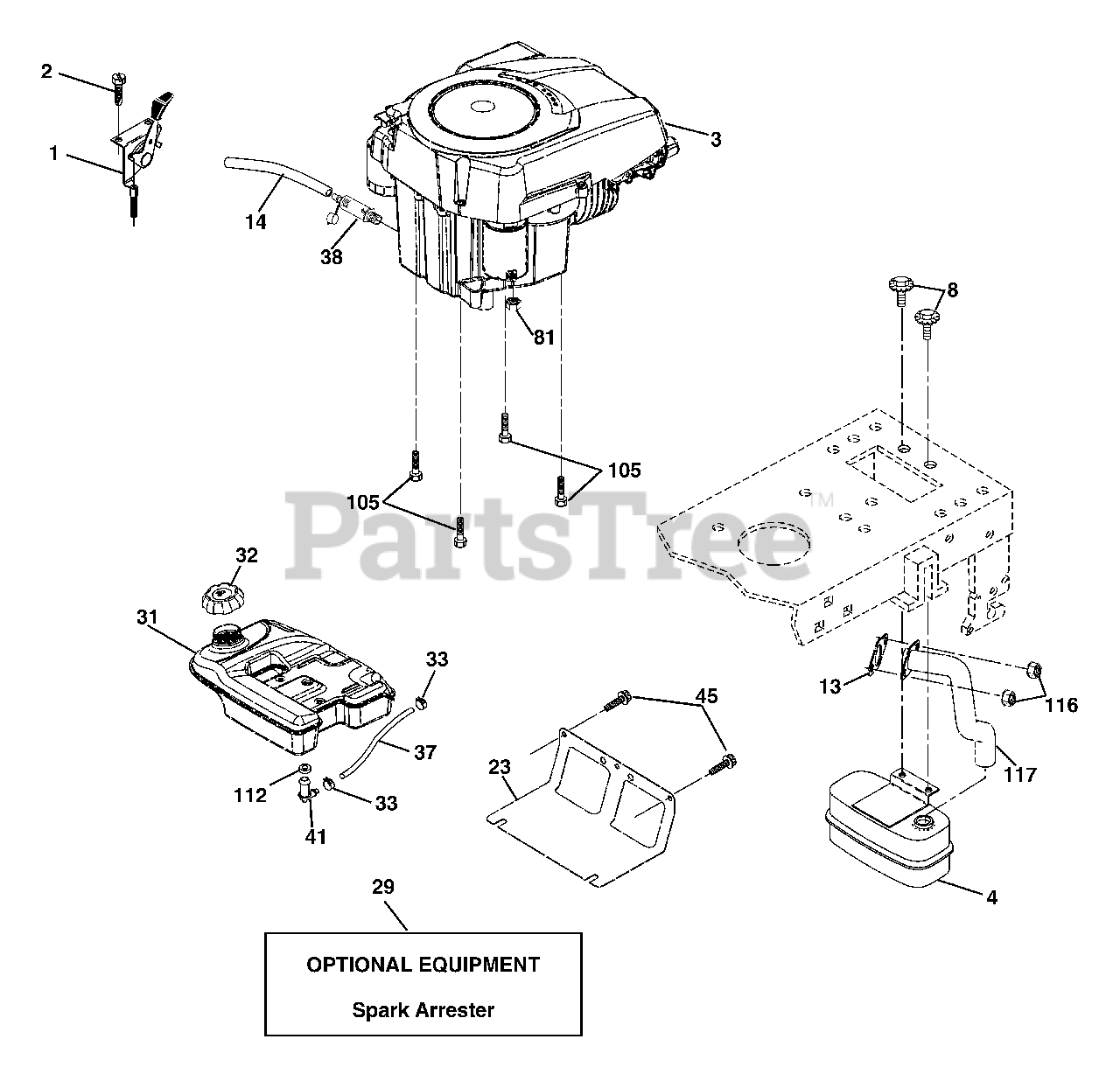

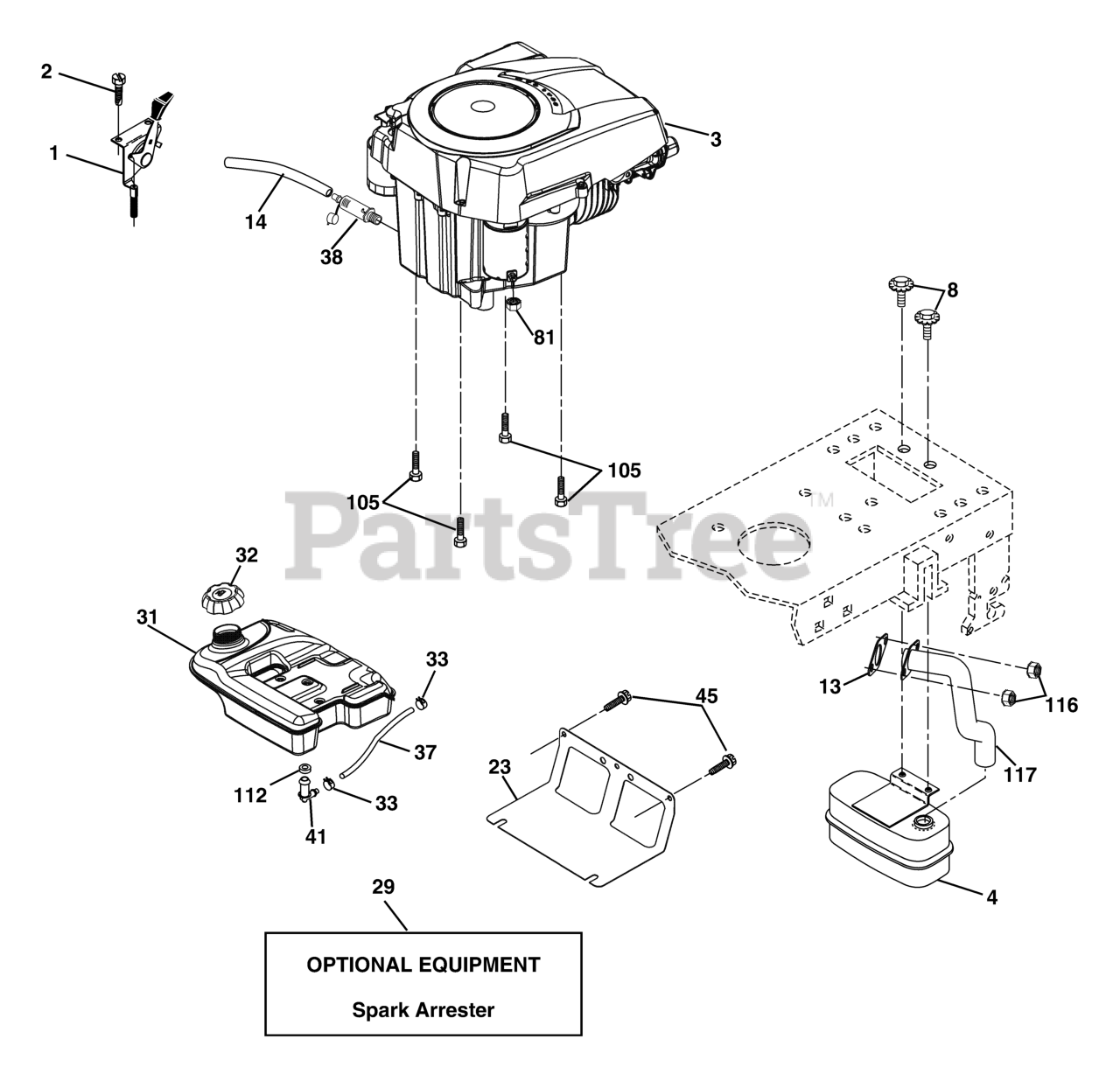

Engine Parts Diagram

  • Title

1

Husqvarna 532170805

CONTROL.THROTTLE.LT/YT

$

$

Not available

2

Husqvarna 817720408

SCREW
(Superseded to 596437001)

$3.49

$

In Stock, only 1 left!

0

3

Engine Kohler Model SV600

Note: (Order Parts from Engine Mfg.)

$

$

Not available

4

Husqvarna 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

$51.99

$

In Stock, Qty 20+

0

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$5.99

$

In Stock, Qty 11

0

13

Husqvarna 532185909

GASKET.EXHAUST.KOHLER

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 13

0

23

Husqvarna 532169837

SHIELD.BROWNING.DBR.GUARD
(Superseded to 531150701)

$26.99

$

In Stock, Qty 7

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

31

Husqvarna 532179022

4.0 REAR FUEL TANK

$

$

Not available

32

Husqvarna 532181803

TANK CAP
(Superseded to 532179124)

$37.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 11

0

37

Husqvarna 532142145

BRACKET ASM.SHIFT.CRT

$

$

Not available

38

Husqvarna 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

$20.99

$

In Stock, Qty 19

0

41

Husqvarna 532139277

STEM FUEL TANK

$7.99

$

In Stock, Qty 20+

0

45

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 7

0

81

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

105

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

112

Husqvarna 532124952

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

In Stock, Qty 20+

0

116

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$3.49

$

In Stock, Qty 5

0

117

Husqvarna 532188654

RP.TUBE.EXHAUST.KOHL.COURAGE
(Superseded to 583955301)

$34.99

$

In Stock, Qty 20+

0
