YTH 2042 (960430106-02) - Husqvarna 42" Yard Tractor (2010-03) Engine Parts Diagram

42" Yard Tractor

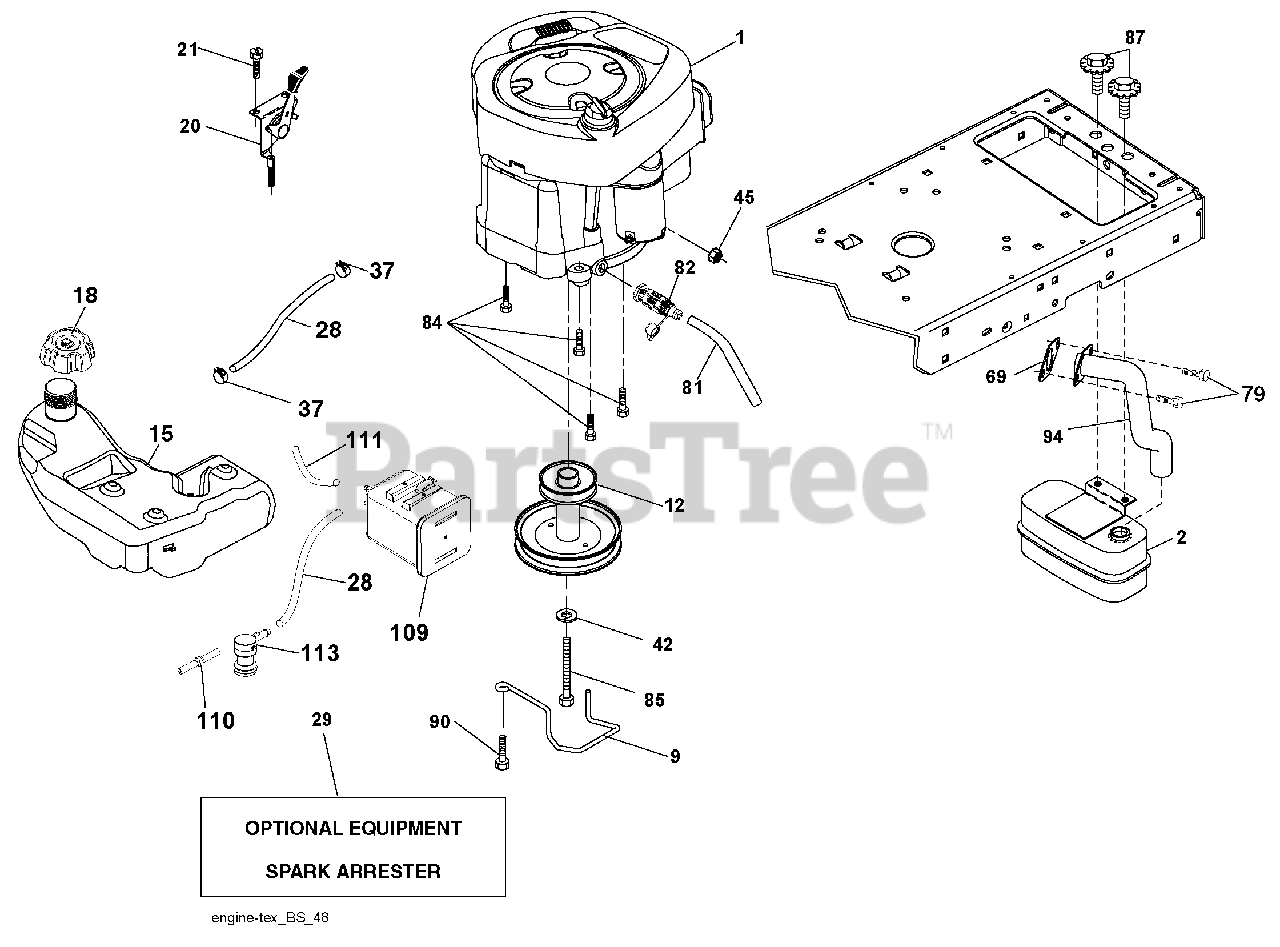

Engine Parts Diagram

  • Title

1

Engine Briggs Model No. 331777- 1457-G1

$

$

Not available

2

Husqvarna 532188655

Muffler

$51.99

$

In Stock, Qty 8

0

9

Husqvarna 532194320

Keeper Belt Engine
(Superseded to 596501502)

$13.99

$

In Stock, only 3 left!

0

12

Husqvarna 532405471

Pulley Engine
(Superseded to 586478501)

$34.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532414151

Tank Fuel
(Superseded to 532420709)

$182.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532430213

Cap Asm
(Superseded to 532439208)

$45.99

$

In Stock, only 1 left!

0

20

Husqvarna 532401508

Control Throttle/Choke

$31.99

$

In Stock, only 2 left!

0

21

Husqvarna 532416358

Screw #10 X 0.750 Bos Thread

$

$

Not available

28

Husqvarna 532401135

Fuel Line
(Superseded to 587044864)

$26.99

$

In Stock, only 1 left!

0

29

Husqvarna 532137180

Spark Arrester Kit

$193.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

Clamp Hose

$3.99

$

In Stock, only 2 left!

0

42

Husqvarna 810040700

Washer Lock 7/16
(Superseded to 596238901)

$3.49

$

In Stock, Qty 15

0

45

Husqvarna 873510400

Nut Keps Hex 1/4-20 Unc
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

69

Husqvarna 532165291

Gasket
(Superseded to 532272293)

$13.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532192334

Screw 5/16-18 X 3/4
(Superseded to 596134201)

$3.49

$

In Stock, Qty 20+

0

81

Husqvarna 532148456

Tube Drain Oil Easy

$6.99

$

In Stock, Qty 10

0

82

Husqvarna 532428287

Valve Drain Oil

$20.99

$

In Stock, Qty 5

0

84

Husqvarna 817060620

Screw 3/8-16 X 1/4

$6.99

$

In Stock, Qty 8

0

85

Husqvarna 532173937

Bolt Hex 7/16-20 X 4 Gr. 5
(Superseded to 501606501)

$3.49

$

In Stock, Qty 11

0

87

Husqvarna 532171877

Bolt 5/16-18 Unc X 3/4 W/Sems

$5.99

$

In Stock, only 2 left!

0

90

Husqvarna 817000616

Screw 3/8-16 X 1

$6.99

$

In Stock, Qty 11

0

94

Husqvarna 532405450

Exhaust Tube
(Superseded to 581880901)

$26.99

$

In Stock, only 2 left!

0

109

Husqvarna 532414114

Canister Carbon Filter Asm

$68.99

$

Usually ships in 3-10 days

0

110

Husqvarna 532414118

Valve Anti Slosh

$26.99

$

Usually ships in 3-10 days

0

111

Husqvarna 532414119

Purge Line
(Superseded to 587044580)

$14.99

$

Usually ships in 3-10 days

0

113

Husqvarna 532414127

Valve Slant Cartrdg
(Superseded to 597791601)

$13.99

$

In Stock, only 2 left!

0
