YTH 2042 (960480030-00) - Husqvarna 42" Yard Tractor (2011-11) ENGINE Parts Diagram

42" Yard Tractor

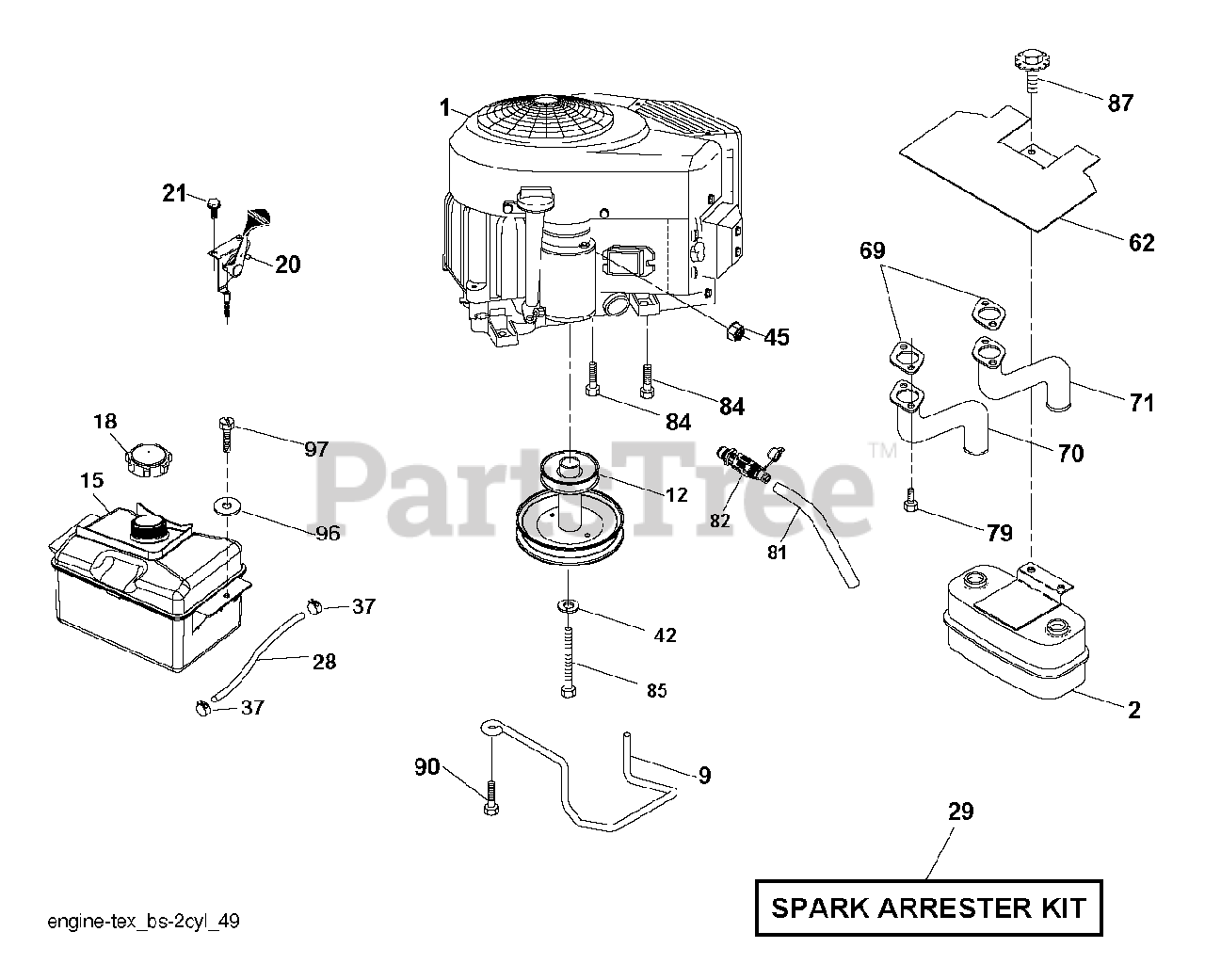

ENGINE Parts Diagram

  • Title

1

000000000

Note: ENGINE B S MODEL NO 406777-1518-B1 (438751)

$

$

Not available

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$51.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 596501502)

$13.99

$

In Stock, only 2 left!

0

12

Husqvarna 532405471

PULLY ENGINE
(Superseded to 586478501)

$34.99

$

In Stock, only 2 left!

0

15

Husqvarna 532407489

TANK.ASM.FUEL.FR.2.5GA.
(Superseded to 581290101)

$125.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

In Stock, Qty 7

0

20

Husqvarna 532423502

CONTROL.TH/CK.COBRA.B&S.TWN.

$30.99

$

In Stock, Qty 10

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

28

Husqvarna 532401137

LINE.FUEL.20"FRONT.EMI
(Superseded to 587044822)

$13.99

$

In Stock, only 3 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

Note: KIT

$193.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$3.49

$

In Stock, only 4 left!

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

In Stock, Qty 20+

0

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.49

$

In Stock, Qty 20+

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$13.99

$

In Stock, only 2 left!

0

69

Husqvarna 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

70

Husqvarna 532159955

RP.EXHAUST.TUBE.LH.BS/TWIN
(Superseded to 581881101)

$34.99

$

In Stock, Qty 5

0

71

Husqvarna 532160589

EXHAUST.TUBE.RH.BS/TWIN
(Superseded to 581881001)

$28.99

$

In Stock, only 3 left!

0

79

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18
(Superseded to 596134202)

$3.49

$

In Stock, Qty 20+

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 2 left!

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$20.99

$

In Stock, Qty 8

0

84

Husqvarna 817060620

SCREW.3/8-16

$6.99

$

In Stock, Qty 11

0

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, Qty 18

0

87

Husqvarna 537171877

Bolt, 5/16-18 X 1-3/4
(Superseded to 532171877)

$7.49

$

In Stock, only 2 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 11

0

96

Husqvarna 819091416

WASHER
(Superseded to 596135301)

$3.49

$

In Stock, Qty 6

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0
