YTH 20B42T (960430020-03) - Husqvarna 42" Yard Tractor (2006-08) Engine Parts Diagram

42" Yard Tractor

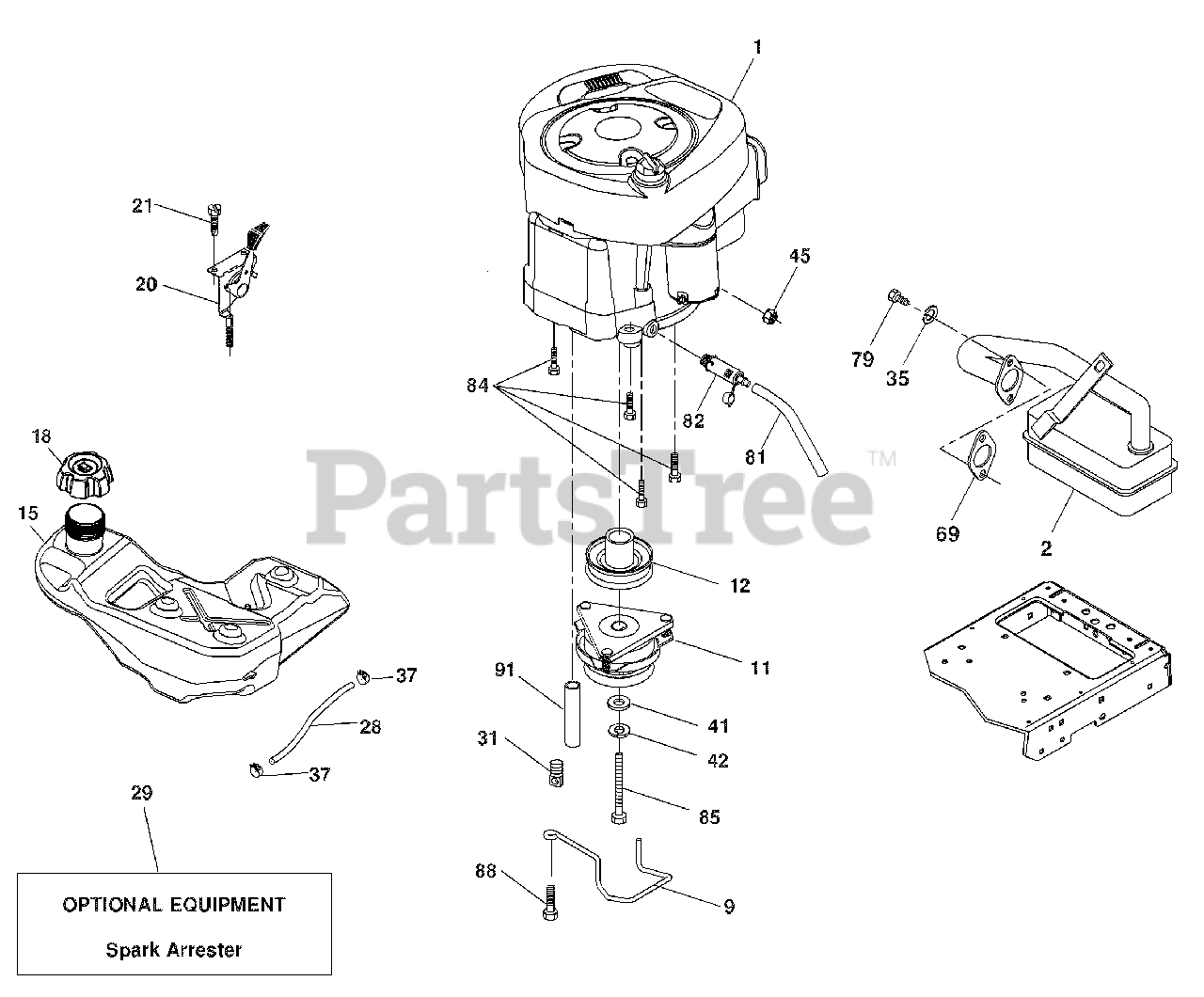

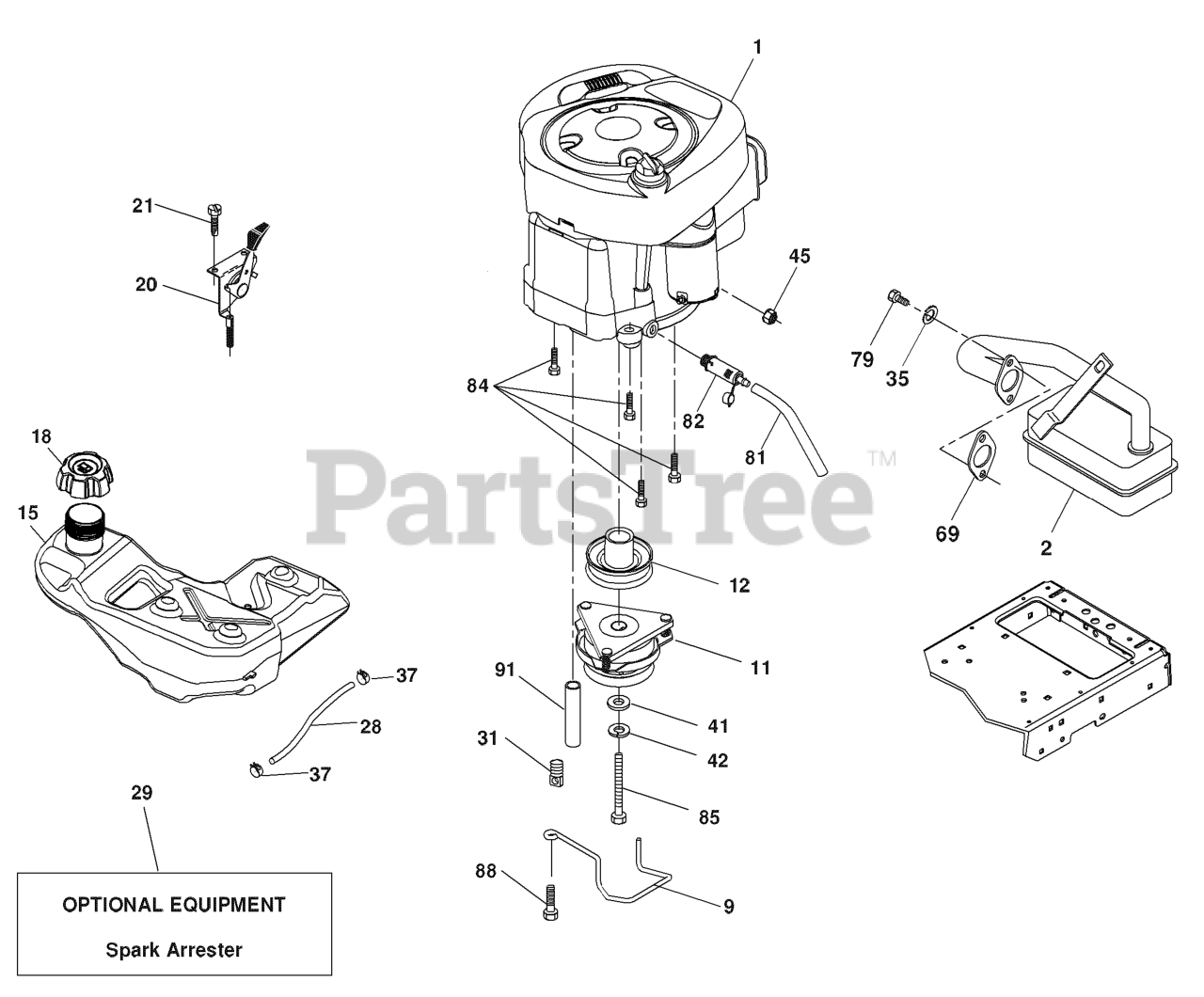

Engine Parts Diagram

  • Title

1

Engine B&S Model No. 31P977

$

$

Not available

2

Husqvarna 532137352

MUFFLER.LT.BRIGGS.14HP.IC/OHV

$51.99

$

In Stock, Qty 20+

0

9

Husqvarna 532194319

KEEPER.BELT.ENGINE.3.25 (3 2)

$13.99

$

In Stock, Qty 5

0

11

Husqvarna 532180505

RB.CLUTCH.OGURA.4.4.PD
(Superseded to 583389701)

$398.99

$

In Stock, only 1 left!

0

12

Husqvarna 532194338

PULLEY.ASM.ENG.OGURA.3

$

$

Not available

15

Husqvarna 532400021

TANK.FUEL.SIDE-FILL.3.NON-EPA
(Superseded to 532442448)

$

$

Not available

18

Husqvarna 532194267

CAP.FUEL.TANK.3"GREY
(Superseded to 532439645)

$20.99

$

In Stock, Qty 5

0

20

Husqvarna 532401508

CONTROL.TH/CK.COBRA.KO

$31.99

$

In Stock, only 2 left!

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$26.99

$

In Stock, only 2 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

31

Husqvarna 532145006

PUSH CLIP

$3.49

$

In Stock, only 1 left!

0

34

Husqvarna 817720408

SCREW
(Superseded to 596437001)

$3.49

$

In Stock, only 1 left!

0

35

Husqvarna 810010500

WASHER

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 12

0

41

Husqvarna 532126197

WASHER

$7.99

$

In Stock, Qty 20+

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

Usually ships in 3-10 days

0

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

69

Husqvarna 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$13.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.49

$

In Stock, Qty 20+

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 12

0

82

Husqvarna 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

$20.99

$

In Stock, Qty 20+

0

84

Husqvarna 817060620

SCREW.3/8-16

$6.99

$

In Stock, Qty 20+

0

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$3.49

$

In Stock, only 2 left!

0

88

Husqvarna 817060616

SCREW THDROL 3/8-16 X 1-1/2
(Superseded to 817000616)

$6.99

$

In Stock, Qty 20+

0
