YTH 20F42T (960430005-00) - Husqvarna 42" Yard Tractor (2006-02) ENGINE Parts Diagram

42" Yard Tractor

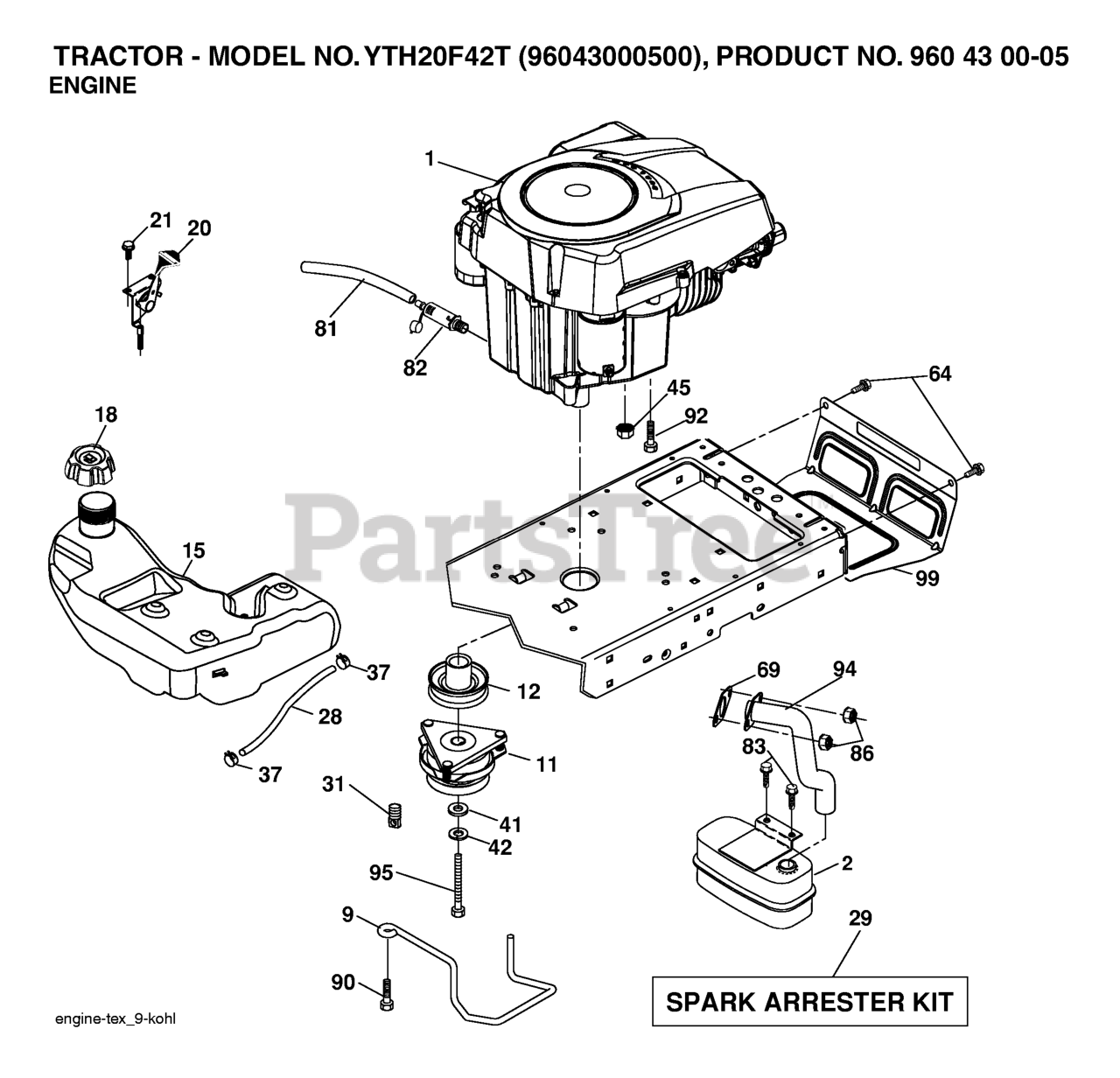

ENGINE Parts Diagram

  • Title

83

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$5.99

$

In Stock, only 2 left!

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 5

0

15

Husqvarna 532193499

TANK.FUEL.4GAL

$96.99

$

In Stock, only 2 left!

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 8

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, only 4 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 6

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$3.49

$

In Stock, only 3 left!

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

In Stock, Qty 15

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

64

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 532401508

CONTROL.TH/CK.COBRA.KO

$31.99

$

In Stock, only 2 left!

0

41

Husqvarna 532126197

WASHER

$7.99

$

In Stock, only 3 left!

0

94

Husqvarna 532188654

RP.TUBE.EXHAUST.KOHL.COURAGE
(Superseded to 583955301)

$34.99

$

In Stock, Qty 6

0

95

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$3.49

$

In Stock, Qty 10

0

9

Husqvarna 532194319

KEEPER.BELT.ENGINE.3.25 (3 2)

$13.99

$

In Stock, only 2 left!

0

31

Husqvarna 532145005

DECAL BTRY SYMBOLS

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532194338

PULLEY.ASM.ENG.OGURA.3

$

$

Not available

21

Husqvarna 817720408

SCREW
(Superseded to 596437001)

$3.49

$

In Stock, Qty 6

0

82

Husqvarna 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

$20.99

$

In Stock, only 3 left!

0

69

Husqvarna 532185909

GASKET.EXHAUST.KOHLER

$4.99

$

In Stock, Qty 20+

0

99

Husqvarna 532194329

SHIELD.BROWNING/DEBRIS

$22.99

$

Usually ships in 3-10 days

0

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 532194267

CAP.FUEL.TANK.3"GREY
(Superseded to 532439645)

$20.99

$

In Stock, Qty 6

0

11

Husqvarna 532180505

RB.CLUTCH.OGURA.4.4.PD
(Superseded to 583389701)

$398.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

$51.99

$

In Stock, Qty 8

0
