YTH 20F42T (960430005-02) - Husqvarna 42" Yard Tractor (2006-09) Mower Deck Parts Diagram

42" Yard Tractor

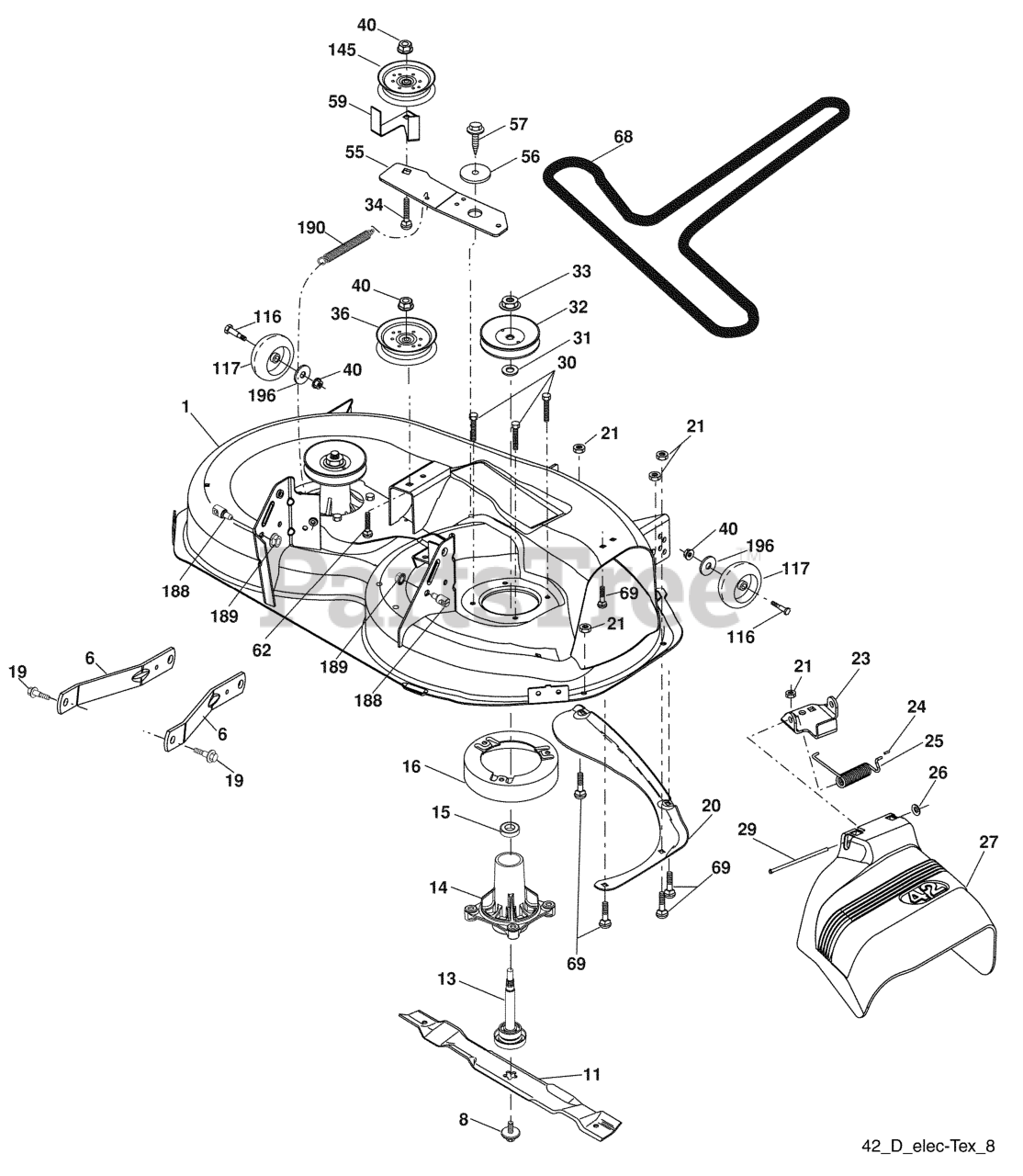

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532196495

DECK.WELDMENT.42"
(Superseded to 598602801)

$478.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R
(Superseded to 529846401)

$21.99

$

In Stock, Qty 20+

0

8

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$9.49

$

In Stock, Qty 20+

0

11

Husqvarna 532138971

42" HI-LIFT BLADE

Note: (For bagging or discharge)

$21.99

$

In Stock, Qty 20+

0

Husqvarna 532139775

BLADE.42"MULCH.PREMIUM
(Superseded to 594893101)

Note: (For better wear when mulching)

$

$

Not available

Husqvarna 532134149

BLADE.42".MULCH

Note: (For mulching mowers only

$

$

Not available

13

Husqvarna 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$71.99

$

In Stock, Qty 20+

0

14

Husqvarna 532187281

RP.HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$71.99

$

In Stock, Qty 20+

0

15

Husqvarna 532110485

BEARING

$17.99

$

In Stock, Qty 20+

0

16

Husqvarna 532174493

STRIPPER.MANDREL.ROUND.BLACK
(Superseded to 531167701)

$10.99

$

In Stock, Qty 20+

0

19

Husqvarna 532196539

BOLT.SHOULDER

$1.49

$

In Stock, Qty 20+

0

20

Husqvarna 532159770

BAFFLE.VORTEX
(Superseded to 531167001)

$17.99

$

Usually ships in 3-10 days

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

23

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$9.99

$

In Stock, Qty 20+

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$11.99

$

In Stock, Qty 20+

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 532403004

SHIELD.DEFLECTOR.MOWER.42"BLAC

$37.99

$

In Stock, Qty 20+

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$7.49

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$5.99

$

In Stock, Qty 20+

0

32

Husqvarna 532173436

PULLEY MANDREL

$21.99

$

In Stock, Qty 20+

0

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$2.49

$

In Stock, Qty 20+

0

34

Husqvarna 872110612

BOLT.3/8-16X1.50
(Superseded to 596136101)

$3.99

$

In Stock, Qty 11

0

36

Husqvarna 532196106

PULLEY.IDLER.2006

$43.99

$

In Stock, Qty 20+

0

40

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

55

Husqvarna 532197249

IDLER.ARM
(Superseded to 531169401)

$7.49

$

In Stock, Qty 20+

0

56

Husqvarna 532199092

SPACER.RETAINER

$8.49

$

In Stock, Qty 20+

0

57

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

59

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$5.99

$

In Stock, Qty 20+

0

62

Husqvarna 872110616

BOLT
(Superseded to 596136301)

$3.99

$

In Stock, Qty 20+

0

68

Husqvarna 532144959

BELT V SECONDARY

$41.99

$

In Stock, Qty 20+

0

69

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

116

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$2.49

$

In Stock, Qty 20+

0

117

Husqvarna 532174873

RP WHEEL. GUAGE RALLY
(Superseded to 589527301)

$9.99

$

In Stock, Qty 20+

0

145

Husqvarna 532177968

PULLEY.IDLER.FLAT

$33.99

$

In Stock, Qty 20+

0

188

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE
(Superseded to 593824001)

$4.99

$

In Stock, Qty 9

0

189

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

190

Husqvarna 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$14.99

$

In Stock, Qty 20+

0

196

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.99

$

In Stock, Qty 20+

0

- -

Husqvarna 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

Note: (Includes housing, shaft and shaft hardware housing, shaft and shaft hardware

$71.99

$

In Stock, Qty 20+

0

Husqvarna 532401224

DECK ASM SVC 42".2GWB.GREY
(Superseded to 532401228)

$478.99

$

Usually ships in 3-10 days

0
