YTH 20F42T (960450002-01) - Husqvarna 42" Yard Tractor (2006-02) Chassis And Enclosures Parts Diagram

42" Yard Tractor

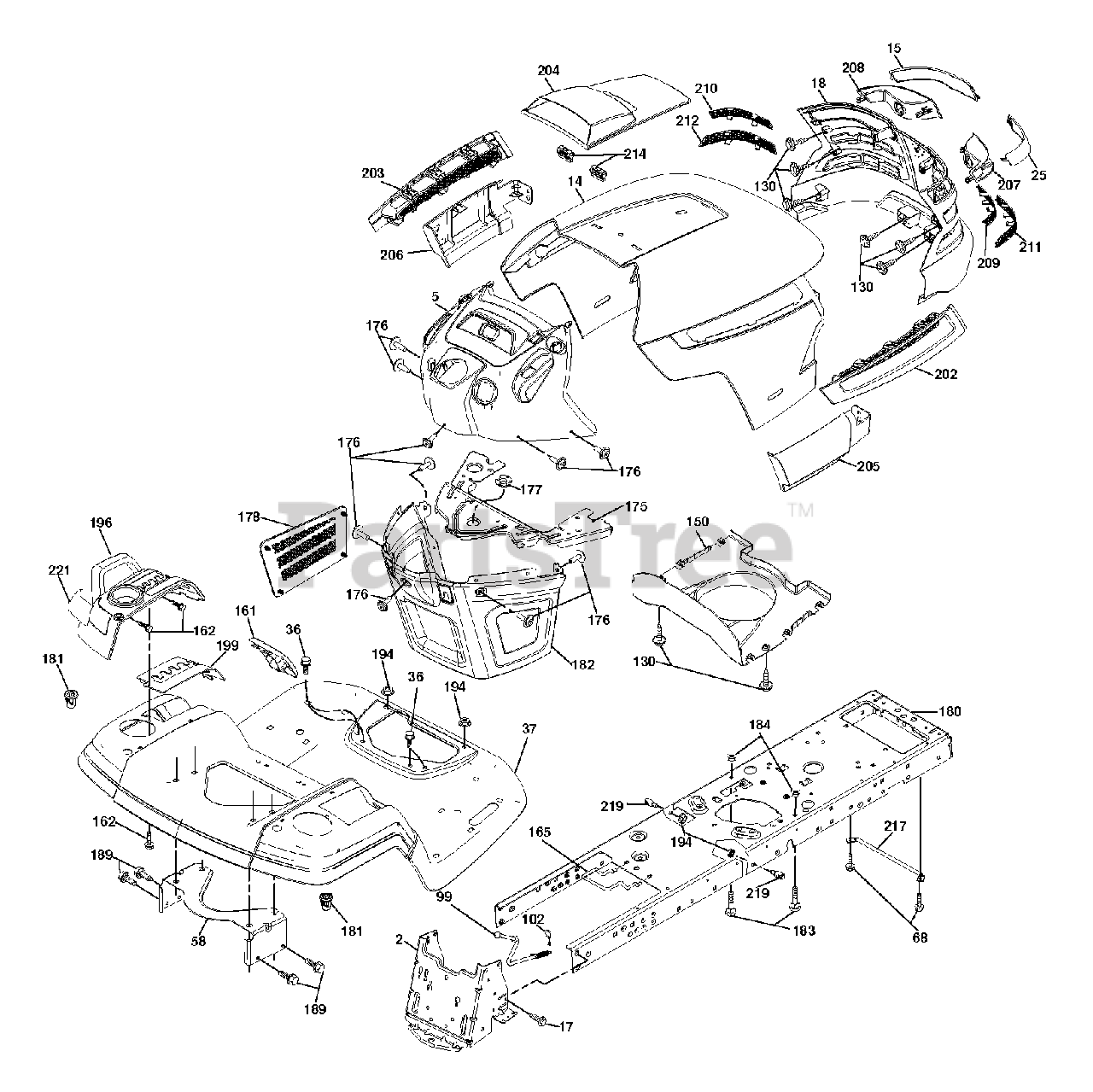

Chassis And Enclosures Parts Diagram

  • Title

2

Husqvarna 532401140

Drawbar
(Superseded to 580434401)

$120.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532403205

Dash

$

$

Not available

14

Husqvarna 532401824

Hood
(Superseded to 532442396)

$

$

Not available

15

Husqvarna 532198907

Lens LH

$44.99

$

In Stock, Qty 5

0

17

Husqvarna 817060612

Screw 3/8-16 x .75
(Superseded to 817000612)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 532404821

Grille/Lens Asm.
(Superseded to 532408607)

Note: (Includes 15,25,207-212)

$

$

Not available

25

Husqvarna 532198906

Lens RH

$44.99

$

In Stock, only 1 left!

0

36

Husqvarna 817060512

Screw 5/16-18 x 3/4
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532401825

Fender
(Superseded to 532441208)

$206.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532194314

Bracket Support Fender

$27.99

$

Usually ships in 3-10 days

0

68

Husqvarna 817490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532401996

Rod Asm Bypass
(Superseded to 532415743)

$11.99

$

In Stock, only 1 left!

0

102

Husqvarna 532124788

Retainer Spring
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

130

Husqvarna 532191611

Screw 10 x 3/4 Single Lead Hex
(Superseded to 532416358)

$

$

Not available

150

Husqvarna 532198513

Air duct

$36.99

$

Usually ships in 3-10 days

0

161

Husqvarna 532401826

Console Fuel Window

$9.49

$

In Stock, Qty 12

0

162

Husqvarna 532142432

Screw

$6.49

$

Usually ships in 3-10 days

0

165

Husqvarna 532194330

Support Tank Rear

$12.99

$

Usually ships in 3-10 days

0

175

Husqvarna 532196304

Crossmember
(Superseded to 590607702)

$24.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532400776

Screw #10-24 x 5/8 Rnd Qudrx Gim

$11.99

$

In Stock, Qty 5

0

177

Husqvarna 532195227

Bushing Steering

$6.49

$

In Stock, Qty 20+

0

178

Husqvarna 532199782

Cargo Asm. Net

$30.99

$

Usually ships in 3-10 days

0

180

Husqvarna 532194260

Chassis
(Superseded to 582033101)

$265.99

$

Usually ships in 3-10 days

0

181

Husqvarna 532403025

Bushing Mtg. Fender Crgo

$

$

Not available

182

Husqvarna 532194787

Dash Lower
(Superseded to 532406859)

$87.99

$

In Stock, only 3 left!

0

183

Husqvarna 874780520

Bolt Fin Hex 5/16-18 unc x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

184

Husqvarna 532195780

Spacer Fender

$7.49

$

Usually ships in 3-10 days

0

189

Husqvarna 817000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

194

Husqvarna 873900500

Nut Lock Hex Flange 5/16-18
(Superseded to 583612701)

$

$

Not available

194

Husqvarna 532404137

Plug 12V Adapter Caplug

$6.49

$

Usually ships in 3-10 days

0

196

Husqvarna 532400299

Console Asm. Deck Lift
(Superseded to 532439716)

$121.99

$

Usually ships in 3-10 days

0

199

Husqvarna 532198259

Plate Deck Lift

$26.99

$

Usually ships in 3-10 days

0

202

Husqvarna 532403048

Vent Side Hood RH

$

$

Not available

203

Husqvarna 532403076

Vent Side Hood LH

$

$

Not available

204

Husqvarna 532198904

Vent Top
(Superseded to 532416615)

$17.99

$

Usually ships in 3-10 days

0

205

Husqvarna 532401709

Skirt Side RH

$

$

Not available

206

Husqvarna 532401711

Skirt Side LH

$

$

Not available

207

Husqvarna 532197198

Bezel RH

$26.99

$

Usually ships in 3-10 days

0

208

Husqvarna 532197199

Bezel LH

$

$

Not available

209

Husqvarna 532199130

Insert Hex Top RH

$

$

Not available

210

Husqvarna 532199131

Insert Hex Top LH

$

$

Not available

211

Husqvarna 532199132

Insert Hex Bot. RH

$2.99

$

Usually ships in 3-10 days

0

212

Husqvarna 532199133

Insert Hex Bot. LH

$

$

Not available

214

Husqvarna 532199145

Clip Retainer Tinner

$6.49

$

Usually ships in 3-10 days

0

217

Husqvarna 532156524

Rod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

Usually ships in 3-10 days

0

219

Husqvarna 532195161

Stud Fastener

$

$

Not available

221

Husqvarna 532198909

Reflector LH

$17.99

$

Usually ships in 3-10 days

0
