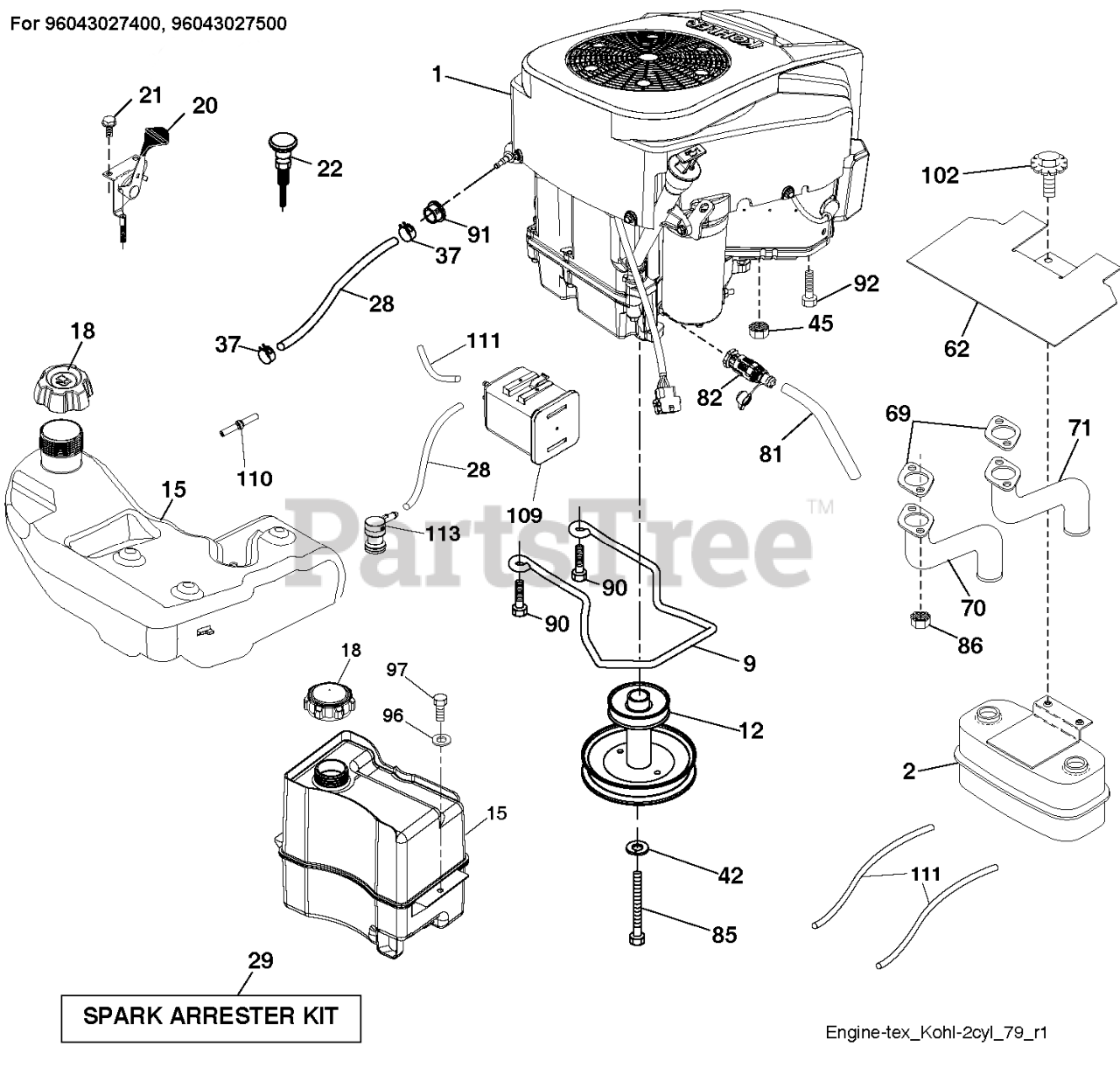

YTH 20K42 - Husqvarna 42" Yard Tractor (Original) ENGINE 2 Parts Diagram

42" Yard Tractor

ENGINE 2 Parts Diagram

  • Title

15

Husqvarna 532433006

Tanks

Note: Fits 2.75" filler neck. For 96043027400

$

$

Not available

96

Husqvarna 819091416

WASHER

Note: For 96043027400

$

$

Not available

28

Husqvarna 587044864

HOSE 1/4" LOW PERMEATION FUEL

Note: For 96043027500

$26.99

$

In Stock, only 1 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

1

000000000

Note: For 96043027500, TRANSAXLE TUFFTORQ K46BT (532426120)

$

$

Not available

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 19

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

Note: For 96043027400

$4.99

$

In Stock, only 2 left!

0

113

Husqvarna 532414127

VALVE.SLANT.CARTRDG.90 DEG.TEX

Note: For 96043027500

$

$

Not available

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

86

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

Note: For 96043027500

$3.49

$

In Stock, Qty 20+

0

71

Husqvarna 583954801

PIPE.EXHAUST.RH.CV18/20

Note: RH

$22.99

$

In Stock, only 2 left!

0

1

000000000

Note: For 96043027400, Engine Kohl Model No. KT715-3016 (585445801)

$

$

Not available

20

Husqvarna 532177328

CONTROL.THROTTLE.LH.COBRA.KNOB

$31.99

$

In Stock, Qty 6

0

18

Husqvarna 532438596

CAP.2.25'.VENTED.TETHER .EPA

Note: Fits 2.75" filler neck. For 96043027400

$31.99

$

In Stock, only 4 left!

0

91

Husqvarna 532187495

BUSHING.1.375OD

Note: For 96043027500

$5.99

$

Usually ships in 3-10 days

0

28

Husqvarna 587044820

HOSE 1/4" LOW PERMEATION FUEL

Note: For 96043027400

$13.99

$

In Stock, Qty 10

0

15

Husqvarna 597954503

FUEL TANK

Note: Fits 2.75" filler neck. For 96043027400

$

$

Not available

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER

$

$

Not available

22

Husqvarna 532191596

CONTROL.CHOKE.ERGO.PUSH-IN.BLA

$39.99

$

In Stock, Qty 6

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, only 2 left!

0

85

Husqvarna 501606501

BOLT.HEX.7/16-20X4.GR5.1.5BLUE

$4.99

$

In Stock, Qty 18

0

70

Husqvarna 583954501

PIPE.EXHAUST.LH.CV18/20

Note: LH

$26.99

$

In Stock, only 2 left!

0

86

Husqvarna 596134201

Screws

Note: For 96043027400

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 532420709

Tanks

Note: Fits 2.75" filler neck. For 96043027500

$182.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532186054

GASKET.EXHAUST.KOHL.CV18-CV26

$3.49

$

Usually ships in 3-10 days

0

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.49

$

In Stock, Qty 20+

0

9

Husqvarna 501832602

KEEPER.BELT.ENG.4.25"2.BLT.431

$

$

Not available

109

Husqvarna 532414114

CANNISTER, CARBON

Note: For 96043027500

$68.99

$

Usually ships in 3-10 days

0

18

Husqvarna 585124801

CAP ASSY FUEL 3" GRAY

Note: Fits 2.75" filler neck. For 96043027500

$22.99

$

In Stock, only 2 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 11

0

12

Husqvarna 586478501

ENGINE.PULLEY

$34.99

$

In Stock, only 2 left!

0

42

Husqvarna 596238901

Washers

$3.49

$

In Stock, Qty 20+

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 15

0

111

Husqvarna 532414119

RP PURGE LINE
(Superseded to 532448562)

$

$

Not available

110

Husqvarna 532414118

VALVE.ASM.ANTI-SLOSH

Note: For 96043027500

$26.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

HOSE CLAMP

$3.49

$

In Stock, only 4 left!

0

18

Husqvarna 529989702

FUEL CAP
(Superseded to 529989701)

Note: Fits 2.00" filler neck

$28.99

$

Usually ships in 3-10 days

0

2

Husqvarna 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET
(Superseded to 589818702)

$56.99

$

In Stock, only 3 left!

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$20.99

$

In Stock, Qty 8

0
