YTH 20K46 (960450004-05) - Husqvarna 46" Yard Tractor (2008-01) Drive Parts Diagram

46" Yard Tractor

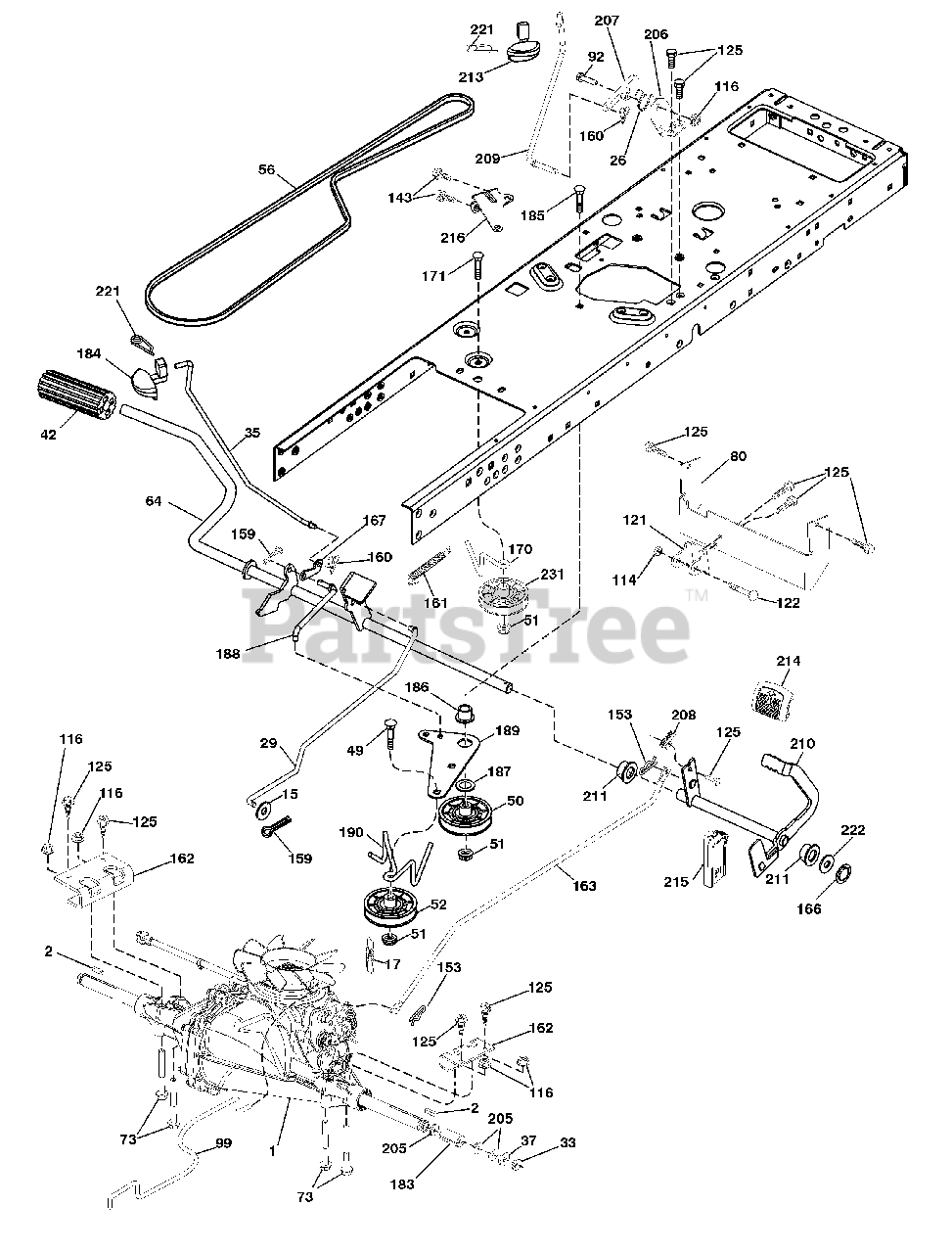

Drive Parts Diagram

  • Title

1

Husqvarna 532410043

Transaxle, Hydro Gear T2
(Superseded to 532418220)

$1335.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532123583

Key Square

$4.99

$

In Stock, Qty 8

0

15

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 532197296

Spring, Brake

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532199679

Spring Return Cruise

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532408391

Rod, Brake
(Superseded to 532423239)

$30.99

$

In Stock, only 2 left!

0

33

Husqvarna 812000001

Ring E

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532199591

Rod, Brake, Park
(Superseded to 532435486)

$7.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532121749

Washer 25/32 x 1-1/4 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

42

Husqvarna 532124872

Cover, Foot Pedal
(Superseded to 532008883)

$6.49

$

In Stock, Qty 17

0

49

Husqvarna 872110614

Bolt

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532194327

Pulley Idler Flat

$13.99

$

In Stock, Qty 20+

0

51

Husqvarna 873900600

Lock Nut 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Husqvarna 532194326

Idler V-Groove 910" Offset

$12.99

$

In Stock, Qty 20+

0

56

Husqvarna 532125907

V-Belt, Drive

$36.99

$

In Stock, Qty 20+

0

64

Husqvarna 532197865

Shaft Asm. Pedal Brake Control

$53.99

$

In Stock, only 1 left!

0

73

Husqvarna 874490544

Bolt Hex 5/16-18 Gr. 5

$4.99

$

Usually ships in 3-10 days

0

80

Husqvarna 532408393

Strap Torque
(Superseded to 581550701)

$18.99

$

Usually ships in 3-10 days

0

92

Husqvarna 874760520

Bolt Fin Hex 5/16-18 unc x 1.25
(Superseded to 874780520)

$4.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532408418

Rod Spring Bypass

$9.99

$

Usually ships in 3-10 days

0

114

Husqvarna 873800500

Nut Lock HX W/Ins 5/16-18

$3.99

$

Usually ships in 3-10 days

0

116

Husqvarna 873900500

Nut Lock Hex Flange 5/16-18
(Superseded to 583612701)

$6.49

$

Usually ships in 3-10 days

0

121

Husqvarna 532175611

Bracket Strap Torque

$4.99

$

Usually ships in 3-10 days

0

122

Husqvarna 872010520

Bolt 5/16-18 x 2.50

$6.49

$

Usually ships in 3-10 days

0

125

Husqvarna 817000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

143

Husqvarna 817490508

Screw 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

153

Husqvarna 532124788

Retainer Spring 1"
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

159

Husqvarna 876020412

Pin Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

160

Husqvarna 532169484

Retainer Clip

$

$

Not available

161

Husqvarna 532105709

Spring, Return, Clutch

$10.99

$

In Stock, Qty 20+

0

162

Husqvarna 532408784

Adapter Transaxle

$6.99

$

Usually ships in 3-10 days

0

163

Husqvarna 532413322

Rod Control

$30.99

$

Usually ships in 3-10 days

0

166

Husqvarna 532197290

Nut Push
(Superseded to 532429164)

$6.49

$

In Stock, Qty 6

0

167

Husqvarna 532405257

Latch Brake Parking

$4.99

$

Usually ships in 3-10 days

0

170

Husqvarna 532413430

Keeper V-Idler

$7.49

$

Usually ships in 3-10 days

0

171

Husqvarna 872110622

Bolt

$3.99

$

In Stock, only 3 left!

0

183

Husqvarna 532156972

Spacer Axle

$

$

Not available

184

Husqvarna 532403118

Handle Parking Brake
(Superseded to 532196439)

$12.99

$

In Stock, Qty 20+

0

185

Husqvarna 872110620

Bolt

$4.99

$

Usually ships in 3-10 days

0

186

Husqvarna 532194321

Spacer Retainer

$7.49

$

Usually ships in 3-10 days

0

187

Husqvarna 819133210

Washer
(Superseded to 532413524)

$

$

Not available

188

Husqvarna 532194323

Link Clutch Ground Drive
(Superseded to 582217001)

$4.99

$

In Stock, Qty 13

0

189

Husqvarna 532194317

Bellcrank Ground Drive

$

$

Not available

190

Husqvarna 532194318

Keeper Bellcrank Ground Drive

$8.99

$

In Stock, Qty 19

0

205

Husqvarna 532121748

Washer 25/32 x 1-5/8 x 16 Ga.

$3.49

$

In Stock, Qty 20+

0

206

Husqvarna 532197867

Bracket Mount Latch Cruise
(Superseded to 532448596)

$4.99

$

In Stock, only 1 left!

0

207

Husqvarna 532197868

Latch Control Cruise
(Superseded to 587031401)

$

$

Not available

208

Husqvarna 532197869

Gear Sector Control Cruise

$6.49

$

Usually ships in 3-10 days

0

209

Husqvarna 532199592

Rod Control Cruise

$10.99

$

Usually ships in 3-10 days

0

210

Husqvarna 532400980

Rocker Asm. Pedal Control

$34.99

$

In Stock, only 1 left!

0

211

Husqvarna 532120183

Bearing Nylon

$6.49

$

In Stock, Qty 8

0

213

Husqvarna 532403119

Knob Control Cruise

$12.99

$

Usually ships in 3-10 days

0

214

Husqvarna 532401722

Pedal Forward
(Superseded to 532421263)

$8.99

$

In Stock, Qty 5

0

215

Husqvarna 532401723

Pedal Reverse

$7.49

$

Usually ships in 3-10 days

0

216

Husqvarna 532196131

Bracket Pulley Idler

$7.49

$

In Stock, only 2 left!

0

221

Husqvarna 532403187

Retainer Spring Clip Handle

$6.49

$

In Stock, Qty 10

0

222

Husqvarna 879212010

Washer 21/32 x 1-1/4 10 Ga.

$6.49

$

In Stock, only 4 left!

0

231

Husqvarna 532407287

Idler V-Groove 1.688" Offset

$18.99

$

In Stock, Qty 20+

0
