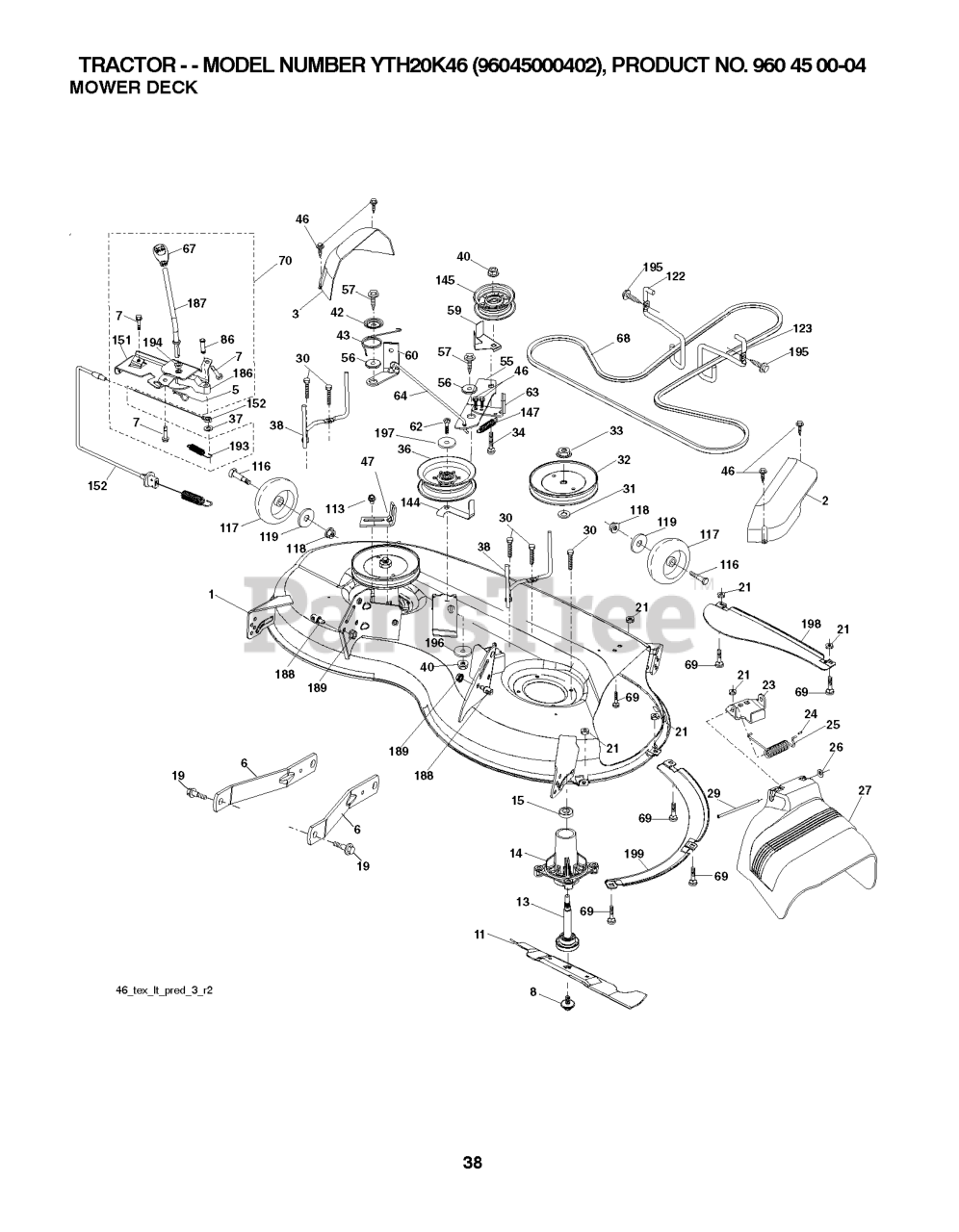

YTH 20K46 - Husqvarna 46" Yard Tractor (2007-07) MOWER DECK / CUTTING DECK 2 Parts Diagram

46" Yard Tractor

MOWER DECK / CUTTING DECK 2 Parts Diagram

  • Title

197

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

25

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$9.99

$

In Stock, Qty 20+

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

123

Husqvarna 532197259

KEEPER BELT RH

$

$

Not available

117

Husqvarna 532174873

RP WHEEL. GUAGE RALLY
(Superseded to 589527301)

$4.99

$

In Stock, Qty 20+

0

116

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

11

Husqvarna 532405380

BLADE.MOWER.46".HI.LIFT

$20.99

$

Usually ships in 3-10 days

0

62

Husqvarna 874520636

BOLT-HEX EAK

$3.99

$

Usually ships in 3-10 days

0

193

Husqvarna 532197801

SPRING.PLUNGER.ACTUATOR
(Superseded to 532406563)

$

$

Not available

64

Husqvarna 532405139

LINKAGE.ASM.BRAKE.CLEAR.ZINC

$37.99

$

In Stock, Qty 20+

0

199

Husqvarna 532403150

BAFFLE FRONT RH

$11.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532405506

COVER.MANDREL.RH.46"

$47.99

$

In Stock, Qty 11

0

70

Husqvarna 532406563

CLUTCH.ASM.CABLE.HUSQ.TEX

$

$

Not available

151

Husqvarna 532406560

BRACKET.MOUNT.CC
(Superseded to 532406563)

$

$

Not available

57

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 8

0

42

Husqvarna 532198410

SPRING.TORSION.BRAKE

$6.49

$

In Stock, Qty 17

0

152

Husqvarna 532408319

CABLE CLUTCH MANUAL W/SPR.
(Superseded to 532435110)

$34.99

$

In Stock, Qty 20+

0

113

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

6

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R

$9.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

122

Husqvarna 532197258

KEEPER BELT ENGINE LH
(Superseded to 531169501)

$7.49

$

In Stock, Qty 20+

0

194

Husqvarna 532197797

BEARING.CONTROL.LEVER.CLUTCH
(Superseded to 532406563)

$

$

Not available

59

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$4.99

$

In Stock, Qty 17

0

67

Husqvarna 532403012

HANDLE.CLUTCH.CABLE.LT

$12.99

$

In Stock, only 4 left!

0

40

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$47.99

$

In Stock, Qty 20+

0

8

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

In Stock, Qty 20+

0

56

Husqvarna 532199092

SPACER.RETAINER

$6.49

$

In Stock, Qty 20+

0

198

Husqvarna 532403149

BAFFLE CENTER FRONT

$14.99

$

Usually ships in 3-10 days

0

144

Husqvarna 532199204

KEEPER.BELT.MOWER

$6.49

$

Usually ships in 3-10 days

0

119

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

195

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

69

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$7.49

$

In Stock, Qty 20+

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 532199189

KEEPER.BELT.LH.MANDREL
(Superseded to 589676103)

$6.49

$

In Stock, Qty 20+

0

3

Husqvarna 532405507

COVER.MANDREL.LH.46"

$47.99

$

In Stock, Qty 8

0

68

Husqvarna 532405143

V-BELT
(Superseded to 584453101)

$42.99

$

In Stock, Qty 20+

0

1

Husqvarna 532410863

DECK.WELDMENT.46"
(Superseded to 532444379)

$

$

Not available

- -

Husqvarna 532408478

DECK.CMPLT.46".CC.2GWB.GREY
(Superseded to 532439672)

$970.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

27

Husqvarna 532405357

SHIELD.DEFLECTOR.MOWER.46"BLAC

$74.99

$

In Stock, Qty 9

0

63

Husqvarna 532199478

ARM.BRAKE.ZINC

$17.99

$

In Stock, Qty 20+

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

145

Husqvarna 532177968

PULLEY.IDLER.FLAT

$24.99

$

In Stock, Qty 20+

0

43

Husqvarna 532197256

SRPING.TORSION.RETAINE

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

188

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

186

Husqvarna 532197799

ARM ACTUATOR
(Superseded to 532406563)

$

$

Not available

149

Husqvarna 532165898

SPRING.RETAINER.YELLOW.ZINC

$7.49

$

In Stock, Qty 6

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

147

Husqvarna 532401872

SPRING RETURN

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532195945

PULLEY.MANDREL.5.438.P

$10.99

$

In Stock, Qty 20+

0

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$3.49

$

In Stock, Qty 20+

0

55

Husqvarna 532197249

IDLER.ARM

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532191611

SCREW
(Superseded to 532416358)

$

$

Not available

187

Husqvarna 532406562

LEVER.CONTROL.CL.CBL
(Superseded to 532406563)

$

$

Not available

196

Husqvarna 532413524

WASHER.13/32 X 1 X 1/2.11GUARD

$

$

Not available

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

- -

Husqvarna 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

Note: "Mandrel Assembly (Includes housing, shaft assembly, and bearing only - pulley/nut/washer and blade bolt/washers not included)"

$47.99

$

In Stock, Qty 20+

0

36

Husqvarna 532196106

PULLEY.IDLER.2006

$24.99

$

In Stock, Qty 20+

0

86

Husqvarna 532197798

PIN ATTACHMENT CABLE
(Superseded to 532406563)

$

$

Not available

189

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

14

Husqvarna 532187281

RP.HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$47.99

$

In Stock, Qty 20+

0

60

Husqvarna 532400132

BRAKE.ASM.RH.38".TEX.COATED
(Superseded to 532199471)

$15.99

$

In Stock, Qty 20+

0

47

Husqvarna 532197250

BRKT.CLUTCH.CABLE

$6.49

$

In Stock, Qty 15

0

34

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0
