YTH 20K46 - Husqvarna 46" Yard Tractor (2008-01) ENGINE 2 Parts Diagram

46" Yard Tractor

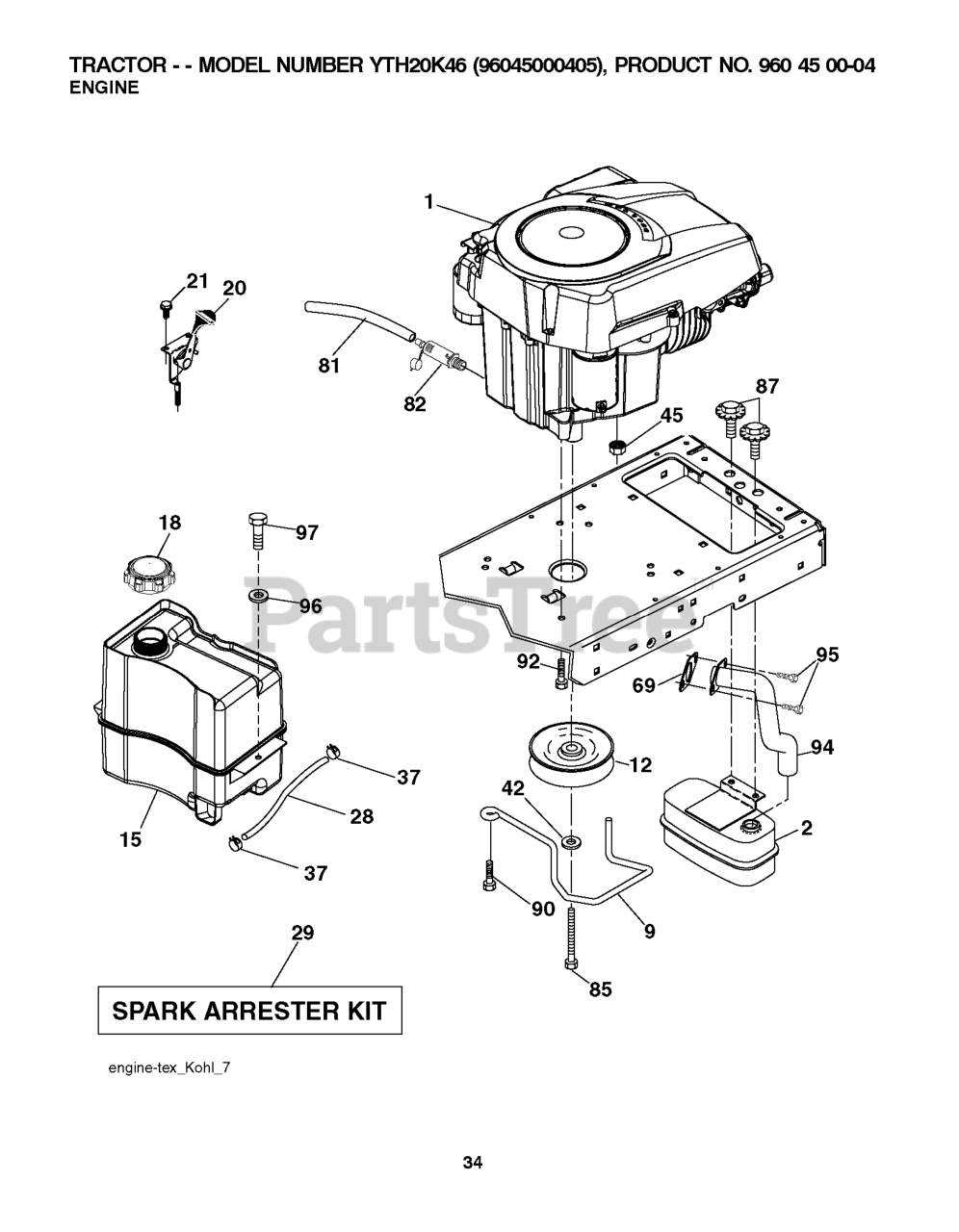

ENGINE 2 Parts Diagram

  • Title

9

Husqvarna 532194319

KEEPER.BELT.ENGINE.3.25 (3 2)

$12.99

$

In Stock, only 2 left!

0

20

Husqvarna 532401508

CONTROL.TH/CK.COBRA.KO

$34.99

$

In Stock, Qty 7

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

45

Husqvarna 873510400

NUT
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 6

0

2

Husqvarna 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

$44.99

$

In Stock, Qty 20+

0

94

Husqvarna 532188654

RP.TUBE.EXHAUST.KOHL.COURAGE
(Superseded to 583955301)

$34.99

$

In Stock, Qty 11

0

69

Husqvarna 532185909

GASKET.EXHAUST.KOHLER

$4.99

$

In Stock, Qty 20+

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$4.99

$

In Stock, Qty 18

0

96

Husqvarna 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

HOSE CLAMP

$7.49

$

In Stock, Qty 16

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

In Stock, only 2 left!

0

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, Qty 11

0

87

Husqvarna 537171877

BOLT 5/1618UNC X 3/4 W/ SEMS
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0

12

Husqvarna 532405140

PULLEY.ENGINE.5.0.PD

$87.99

$

In Stock, only 1 left!

0

82

Husqvarna 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

$18.99

$

In Stock, Qty 13

0

95

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 539990247)

$

$

Not available

1

NEEDS DESCRIPTION

Note: "For engine service and replacement parts, call: Briggs & Stratton 1-800-233-3723, Kohler Co. 1-800-544-2444, Tecumseh Products 1-800-558-5402, Honda Engines 1-800-426-7701, Kawasaki 1-949-460-5688"

$

$

Not available

15

Husqvarna 532407489

TANK.ASM.FUEL.FR.2.5GA.
(Superseded to 581290101)

$120.99

$

In Stock, Qty 7

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$182.99

$

In Stock, only 1 left!

0

28

Husqvarna 532401137

LINE.FUEL.20"FRONT.EMI
(Superseded to 587044822)

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532197725

FUEL CAP
(Superseded to 581075501)

$26.99

$

In Stock, Qty 6

0
