YTH 20K46 - Husqvarna 46" Yard Tractor (2008-01) ENGINE Parts Diagram

46" Yard Tractor

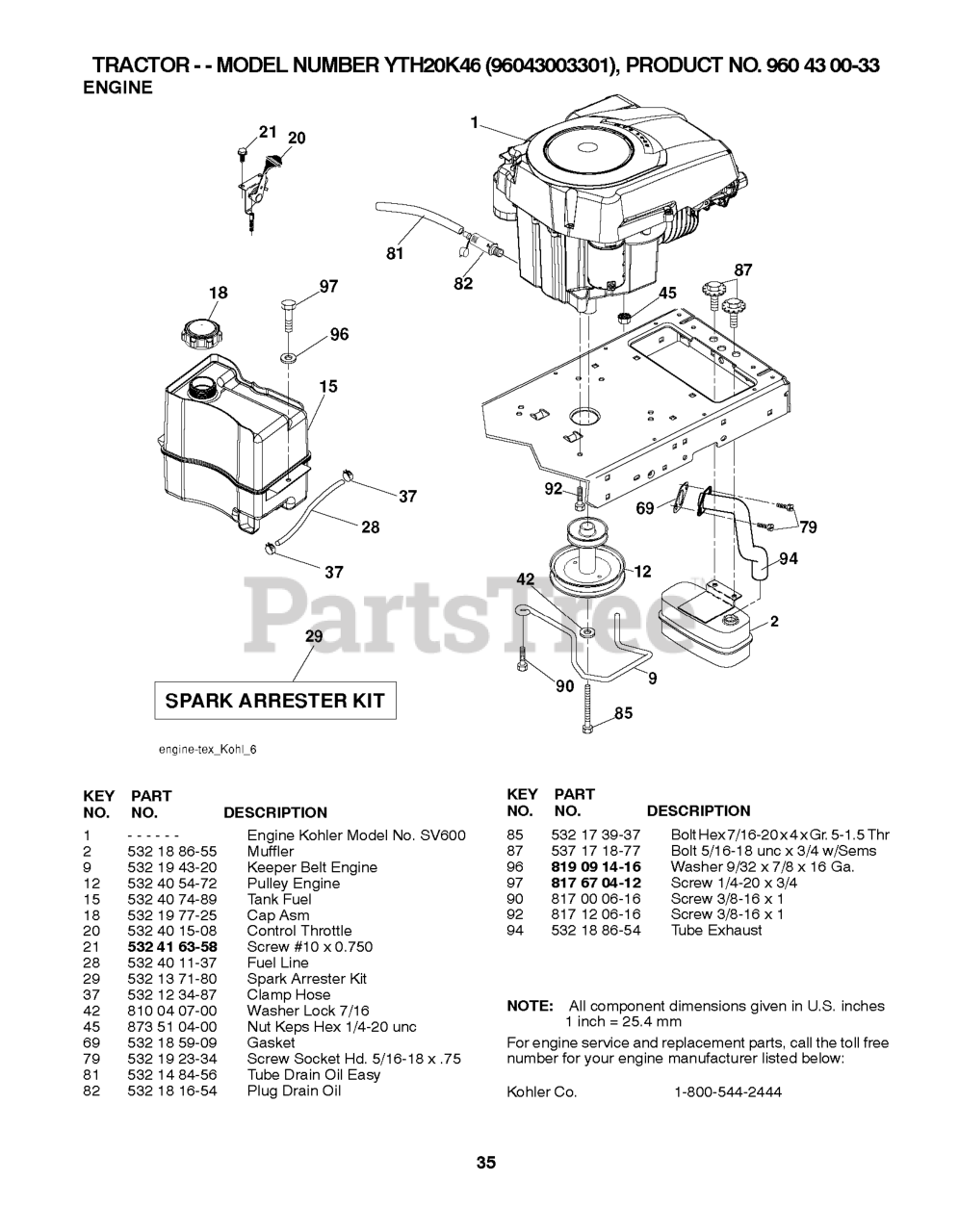

ENGINE Parts Diagram

  • Title

12

Husqvarna 532405472

RP_PULLEY ENGINE

$37.99

$

In Stock, only 2 left!

0

87

Husqvarna 537171877

BOLT 5/1618UNC X 3/4 W/ SEMS
(Superseded to 532171877)

$5.99

$

In Stock, Qty 10

0

2

Husqvarna 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

$53.99

$

In Stock, Qty 20+

0

79

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

$3.99

$

In Stock, Qty 12

0

20

Husqvarna 532401508

CONTROL.TH/CK.COBRA.KO

$31.99

$

In Stock, only 2 left!

0

94

Husqvarna 532188654

RP.TUBE.EXHAUST.KOHL.COURAGE
(Superseded to 583955301)

$35.99

$

In Stock, Qty 20+

0

9

Husqvarna 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 596501502)

$14.99

$

In Stock, only 1 left!

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

69

Husqvarna 532185909

GASKET.EXHAUST.KOHLER

$4.99

$

In Stock, Qty 20+

0

82

Husqvarna 532181654

PLUG DRAIN OIL EASY
(Superseded to 532428287)

$23.99

$

In Stock, Qty 20+

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

15

Husqvarna 532407489

TANK.ASM.FUEL.FR.2.5GA.
(Superseded to 581290101)

$131.99

$

In Stock, Qty 6

0

28

Husqvarna 532401137

LINE.FUEL.20"FRONT.EMI
(Superseded to 587044822)

$14.99

$

In Stock, only 2 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 11

0

1

NEEDS DESCRIPTION

Note: "For engine service and replacement parts, call the toll free number for your engine manufacturer listed below: Kohler Co. 1-800-544-2444"

$

$

Not available

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 532197725

FUEL CAP
(Superseded to 581075501)

$27.99

$

In Stock, Qty 6

0

96

Husqvarna 819091416

WASHER
(Superseded to 596135301)

$3.99

$

In Stock, Qty 6

0
