YTH 2146 XP (960430029-00) - Husqvarna 46" Yard Tractor (2006-12) Engine Parts Diagram

46" Yard Tractor

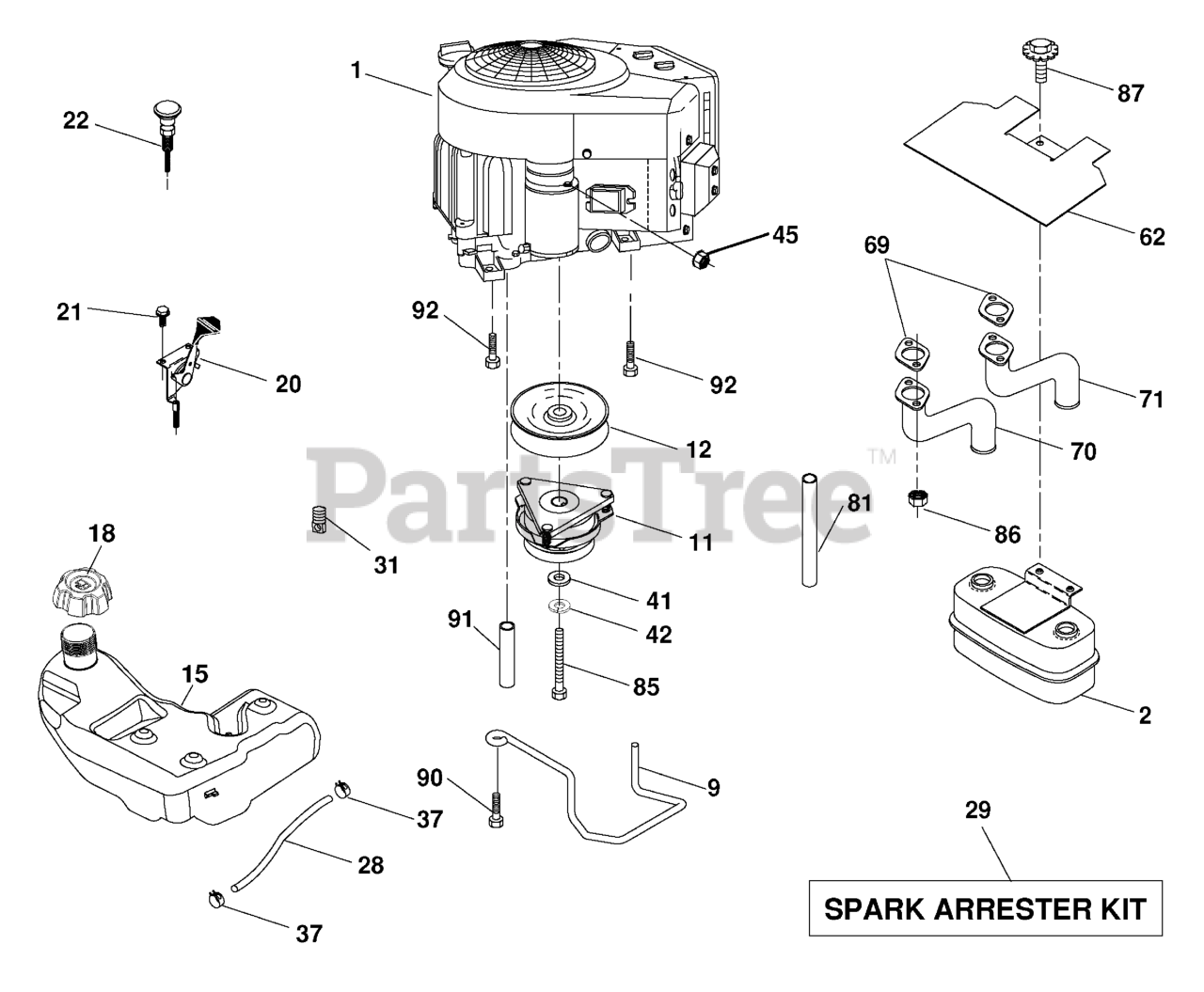

Engine Parts Diagram

  • Title

1

Engine Kawa

Note: Model No. FH641

$

$

Not available

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$53.99

$

In Stock, only 2 left!

0

9

Husqvarna 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 596501502)

$14.99

$

In Stock, only 2 left!

0

11

Husqvarna 532179334

CLUTCH ELECTRIC
(Superseded to 532414336)

$395.99

$

In Stock, Qty 9

0

12

Husqvarna 532405097

PULLEY.ENGINE.TUFFTORQ

$71.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532193499

TANK.FUEL.4GAL

$96.99

$

In Stock, only 1 left!

0

18

Husqvarna 532194267

CAP.FUEL.TANK.3"GREY
(Superseded to 532439645)

$21.99

$

In Stock, only 3 left!

0

20

Husqvarna 532178147

CONTROL.THROTTLE.COBRA.42"BLK.

$37.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532191611

SCREW
(Superseded to 532416358)

$

$

Not available

22

Husqvarna 532191596

CONTROL.CHOKE.ERGO.PUSH-IN.BLA

$41.99

$

In Stock, only 3 left!

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$27.99

$

In Stock, only 2 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

31

Husqvarna 532145006

PUSH CLIP

$3.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 10

0

41

Husqvarna 532126197

WASHER

$8.49

$

In Stock, Qty 14

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.99

$

In Stock, only 1 left!

0

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

62

Husqvarna 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 2 left!

0

69

Gasket

Note: (Order from Eng. Mfg.)

$

$

Not available

70

Husqvarna 532184579

TUBE EXHAUST LH

$

$

Not available

71

Husqvarna 532184580

EXHAUST.TUBE.RH.KAWA

$

$

Not available

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 9

0

85

Husqvarna 532150280

BOLT HEX
(Superseded to 501606501)

$3.99

$

In Stock, only 2 left!

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$3.99

$

In Stock, Qty 5

0

87

Husqvarna 532198239

BOLT.5/16-18UNCX1.W/SEMS.BLK

$3.99

$

In Stock, only 3 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

91

Husqvarna 532187495

BUSHING.1.375OD

$5.99

$

In Stock, only 2 left!

0

92

Husqvarna 817020616

Screw 3/8-16 x 1

$

$

Currently unavailable
