YTH 2146 XP (960430029-01) - Husqvarna 46" Yard Tractor (2008-01) Engine Parts Diagram

46" Yard Tractor

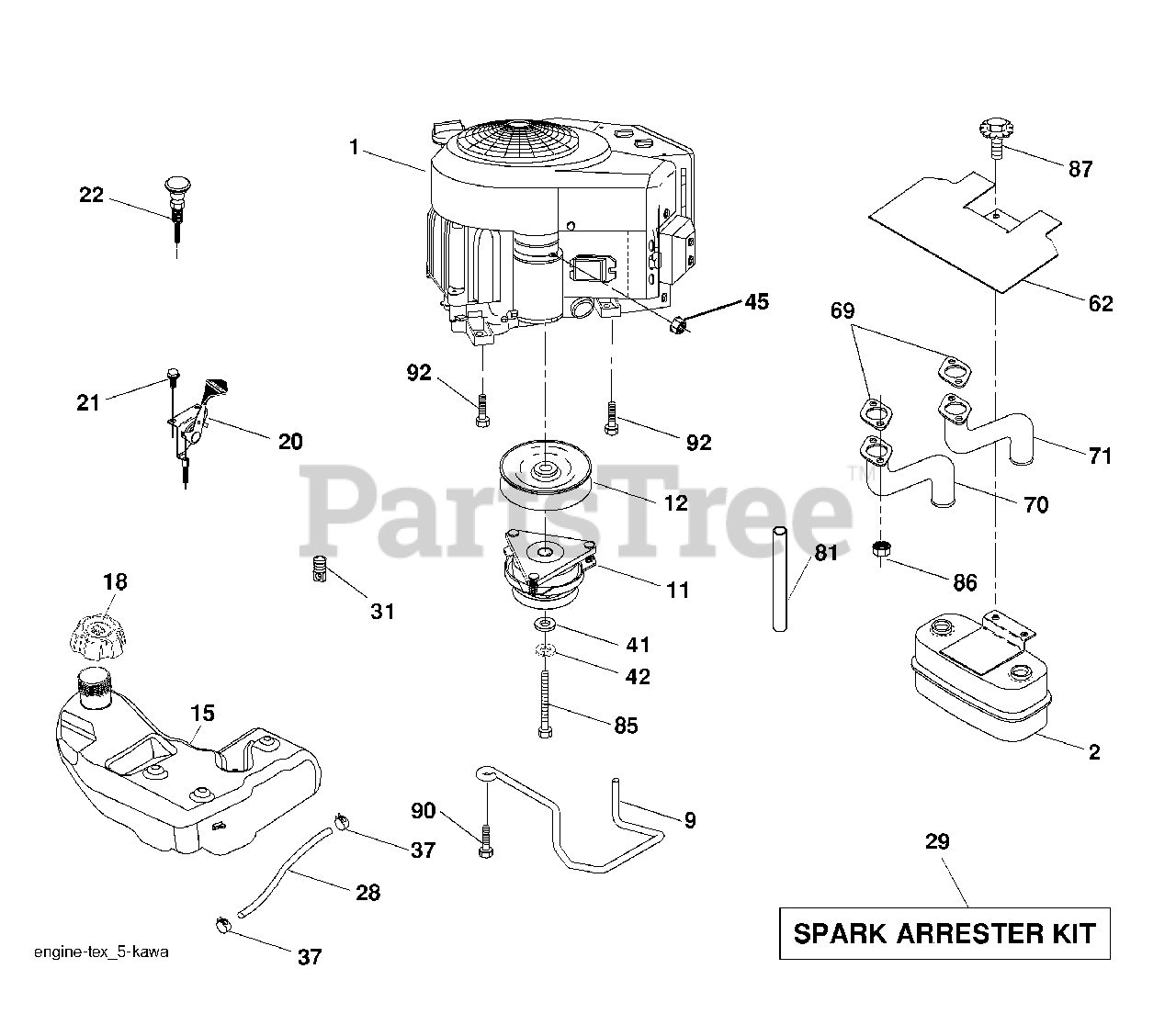

Engine Parts Diagram

  • Title

1

Engine Kawa Model No. FH641

$

$

Not available

2

Husqvarna 532149723

Muffler

$74.99

$

In Stock, Qty 5

0

9

Husqvarna 532194320

Keeper Belt Engine
(Superseded to 584908001)

$

$

Not available

11

Husqvarna 532400008

Clutch Electric
(Superseded to 532414336)

$399.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532405097

Pulley Engine

$100.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532193499

Tank Fuel 4.0

$145.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532194267

Cap Asm
(Superseded to 584248702)

$12.99

$

In Stock, Qty 5

0

20

Husqvarna 532182937

Control Throttle
(Superseded to 532177328)

$47.99

$

In Stock, only 3 left!

0

21

Husqvarna 532416358

Screw #10 x 0.750

$

$

Not available

22

Husqvarna 532189541

Control Choke
(Superseded to 532187768)

$37.99

$

In Stock, only 1 left!

0

28

Husqvarna 532401135

Fuel Line
(Superseded to 587044864)

$18.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

Spark Arrester Kit

$182.99

$

In Stock, only 1 left!

0

31

Husqvarna 532145006

Clip Push In

$6.49

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

Clamp Hose

$7.49

$

In Stock, Qty 16

0

41

Husqvarna 532126197

Washer 1-1/2 OD x 15/32 ID x .250

$8.99

$

In Stock, Qty 20+

0

42

Husqvarna 810040700

Washer Lock 7/16
(Superseded to 539990247)

$

$

Not available

45

Husqvarna 873510400

Nut Keps Hex 1/4-20unc
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

62

Husqvarna 532146629

Shield Heat Muffler
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

69

Gasket

Note: (Order part from Eng. Mfg.)

$

$

Not available

70

Husqvarna 532184580

Tube Exhaust LH

$47.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532184579

Tube Exhaust RH

$

$

Not available

81

Husqvarna 532148456

Tube Drain Oil Easy

$4.99

$

In Stock, Qty 18

0

85

Husqvarna 532173937

Bolt Hex 7/16-20x4 x Gr. 5-1.5
(Superseded to 501606501)

$4.99

$

In Stock, Qty 11

0

86

Husqvarna 532184362

Nut Hex Flange Toplock M8-1.2

$6.49

$

Usually ships in 3-10 days

0

87

Husqvarna 532198239

Bolt 5/16-18 unc x 1 w/Sems

$7.49

$

Usually ships in 3-10 days

0

90

Husqvarna 817000616

Screw 3/8-16x1

$7.49

$

In Stock, Qty 6

0

92

Husqvarna 817120616

Screw 3/8-16x1

$5.99

$

In Stock, Qty 20+

0

92

Husqvarna 532187495

Bushing

$6.49

$

In Stock, only 1 left!

0
