YTH 2148 (954572035-C) - Husqvarna 48" Yard Tractor (2005-01) MOWER DECK / CUTTING DECK Parts Diagram

48" Yard Tractor

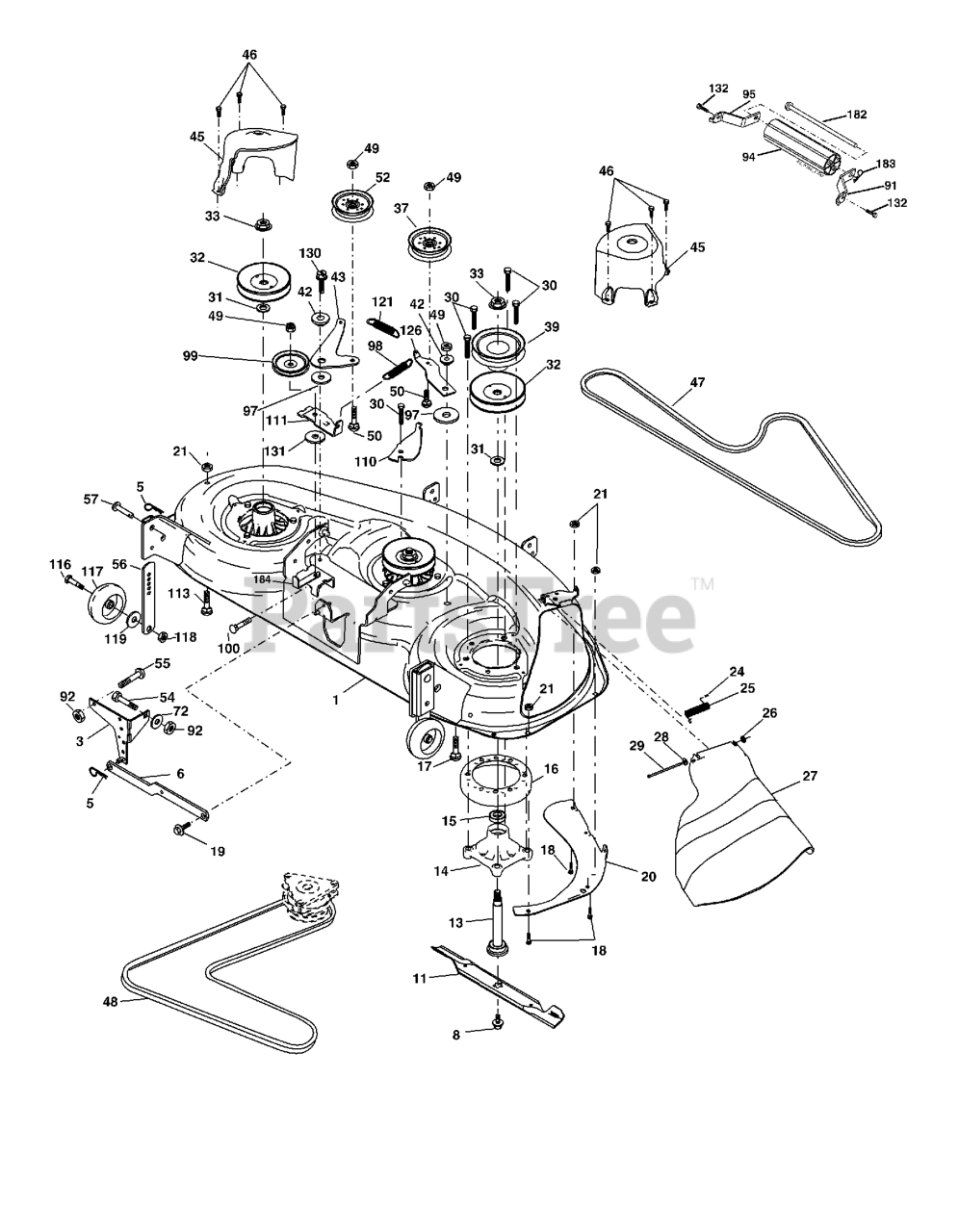

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

133

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

Note: 872110506

$6.99

$

In Stock, Qty 6

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

Note: 532137729

$2.49

$

In Stock, Qty 20+

0

5

Husqvarna 532124670

RETAINER-SPRNG RB

Note: 532124670

$

$

Not available

92

Husqvarna 873800600

NUT
(Superseded to 873680600)

Note: 873800600

$

$

Not available

Husqvarna 532189906

DECK ASM SVC 48" 4GWB.GREY
(Superseded to 532181579)

Note: "532189906, (Std Deck-Order Separately Nose Roller Components Key Nos. 91, 94, 95, 132, 182-183)"

$

$

Not available

97

Husqvarna 532178515

WASHER

Note: 532178515

$7.49

$

In Stock, Qty 20+

0

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

Note: 819121414

$3.99

$

In Stock, Qty 20+

0

118

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

Note: 873930600

$

$

Not available

6

Husqvarna 532178024

BAR SWAY DECK
(Superseded to 531149301)

Note: 532178024

$14.99

$

In Stock, only 2 left!

0

50

Husqvarna 872110612

BOLT.3/8-16X1.50
(Superseded to 596136101)

Note: 872110612

$3.99

$

In Stock, Qty 8

0

3

Husqvarna 532138017

BRKT ASM SWAY BAR
(Superseded to 531165401)

Note: 532138017

$21.99

$

In Stock, Qty 12

0

37

Husqvarna 532177968

PULLEY.IDLER.FLAT

Note: 532177968

$33.99

$

In Stock, Qty 20+

0

117

Husqvarna 532133957

WHEEL GAGE DONUT

Note: 532133957

$14.99

$

In Stock, Qty 20+

0

19

Husqvarna 532132827

BOLT SHD 5/16-18

Note: 532132827

$

$

Not available

25

Husqvarna 532178102

SPRING, TORSION
(Superseded to 539107609)

Note: 532178102

$5.99

$

In Stock, Qty 20+

0

15

Husqvarna 532110485

BEARING

Note: 532110485

$17.99

$

In Stock, Qty 20+

0

121

Husqvarna 532174371

SPRING.DRIVE.SECONDARY.48".DEC

Note: 532174371

$

$

Not available

91

Husqvarna 532180535

BRKT.NOSEROLLER.RH.48"
(Superseded to 529846201)

Note: 532180535

$

$

Not available

36

Husqvarna 819131316

WASHER
(Superseded to 596565301)

Note: 819131316

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 532175147

SHAFT, ASM. MANDEREL SEALED

Note: 532175147

$

$

Not available

24

Husqvarna 532105304

CAP-SLEEVE LT

Note: 532105304

$3.99

$

In Stock, Qty 20+

0

116

Husqvarna 532184219

SHOULDER BOLT
(Superseded to 532193406)

Note: 532184219

$2.49

$

In Stock, Qty 20+

0

14

Husqvarna 532174358

HOUSING, MANDREL 48"

Note: 532174358

$65.99

$

In Stock, Qty 7

0

52

Husqvarna 532175820

PULLEY.IDLER.FLAT.46.PR.DR.
(Superseded to 596481401)

Note: 532175820

$33.99

$

In Stock, only 1 left!

0

100

Husqvarna 872110616

BOLT
(Superseded to 596136301)

Note: 872110616

$3.99

$

In Stock, Qty 13

0

45

Husqvarna 532180806

COVER.MANDREL.DECK.48"

Note: 532180806

$

$

Not available

57

Husqvarna 532156941

RIVET.PIN.HEAD.YELLOW.

Note: 532156941

$

$

Not available

43

Husqvarna 532174373

ARM, IDLER SECONDARY

Note: 532174373

$

$

Not available

26

Husqvarna 532110452

NUT PUSH M

Note: 532110452

$3.99

$

In Stock, Qty 20+

0

95

Husqvarna 532180534

BRKT.NOSEROLLER.LH.48"
(Superseded to 529846101)

Note: 532180534

$

$

Not available

182

Husqvarna 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

Note: 532179127

$8.49

$

In Stock, Qty 20+

0

16

Husqvarna 532174493

STRIPPER.MANDREL.ROUND.BLACK
(Superseded to 531167701)

Note: 532174493

$10.99

$

In Stock, Qty 20+

0

56

Husqvarna 532155986

BAR.ADJUST.WHEEL.ANTI.SCALP.BL

Note: 532155986

$27.99

$

In Stock, only 3 left!

0

111

Husqvarna 532174610

ARM SPRING FIXED TENSION

Note: 532174610

$

$

Not available

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

Note: 532173984

$3.99

$

In Stock, Qty 20+

0

183

Husqvarna 532163552

SPRING RETAINER
(Superseded to 532003146)

Note: 532163552

$3.99

$

In Stock, Qty 19

0

49

Husqvarna 873680600

LOCKNUT
(Superseded to 596322601)

Note: 873680600

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 532174378

BAFFLE, VORTEX MWR
(Superseded to 531167501)

Note: 532174378

$21.99

$

In Stock, Qty 20+

0

130

Husqvarna 817000616

SCREW 3/8-16X1

Note: 817000616

$7.49

$

In Stock, Qty 20+

0

54

Husqvarna 874780616

BOLT
(Superseded to 596564401)

Note: 874780616

$4.99

$

In Stock, Qty 9

0

72

Husqvarna 819131312

WASHER
(Superseded to 734117201)

Note: 819131312

$3.99

$

In Stock, Qty 20+

0

Husqvarna 532174357

MANDREL ASSY

Note: "532174357, (Includes Housing, Shaft and Shaft Hardware Only-Pulley Not Included)"

$74.99

$

In Stock, Qty 5

0

27

Husqvarna 532181707

DEFLECTOR SUBS TO 532 180655
(Superseded to 532180655)

Note: 532181707

$53.99

$

In Stock, Qty 20+

0

8

Husqvarna 532174365

BOLT 7/16 ASM BLADE
(Superseded to 532193003)

Note: 532174365

$9.49

$

In Stock, Qty 20+

0

99

Husqvarna 532184058

IDLER PULLEY
(Superseded to 532193195)

Note: 532184058

$71.99

$

In Stock, only 2 left!

0

32

Husqvarna 532177865

PULLEY, MANDREL
(Superseded to 532173436)

Note: 532177865

$21.99

$

In Stock, Qty 20+

0

17

Husqvarna 872110610

BOLT
(Superseded to 596987501)

$4.99

$

In Stock, Qty 10

0

48

Husqvarna 532174368

V-BELT PRIMARY 48"

Note: 532174368

$65.99

$

In Stock, Qty 20+

0

94

Husqvarna 532176066

NOSE ROLLER 48"

Note: 532176066

$14.99

$

In Stock, Qty 20+

0

110

Husqvarna 532175016

ARM, SPRING SECONDARY

Note: 532175016

$

$

Not available

18

Husqvarna 872140505

BOLT
(Superseded to 596136401)

Note: 872140505

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

Note: 873680500

$

$

Not available

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

Note: 532131491

$7.49

$

In Stock, Qty 20+

0

126

Husqvarna 532174372

ARM, IDLER PRIMARY DECK

Note: 532174372

$

$

Not available

1

Husqvarna 532183389

DECK.SVC.4.GA.WHLS.48".GREY
(Superseded to 532184233)

Note: 532183389

$

$

Not available

131

Husqvarna 819131606

Washer 13/32 x 1.00 x 6 Ga.

Note: 819131606

$

$

Not available

39

Husqvarna 532174375

PULLEY.DRIVEN.DECK.48'

Note: 532174375

$43.99

$

In Stock, Qty 16

0

33

Husqvarna 532178342

NUT, FLG TOPLOCK 9/16"
(Superseded to 596134801)

Note: 532178342

$2.49

$

In Stock, Qty 20+

0

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

Note: 532187690

$5.99

$

In Stock, Qty 20+

0

11

Husqvarna 532180054

48" HI-LIFT BLADE

Note: 532180054

$29.99

$

In Stock, Qty 20+

0

184

Husqvarna 532173979

KEEPER BELT IDLER PLATED

Note: 532173979

$

$

Not available

47

Husqvarna 532180808

V-BELT, 48"SECONDARY

Note: 532180808

$65.99

$

In Stock, Qty 16

0

98

Husqvarna 532179479

SPRING PRIMARY DRIVE

Note: 532179479

$

$

Not available

55

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

Note: 872140608

$4.99

$

In Stock, only 1 left!

0

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga SD

Note: 819111016

$

$

Not available

42

Husqvarna 532165723

SPACER.RETAINER.MOWER

Note: 532165723

$7.49

$

In Stock, Qty 14

0

132

Husqvarna 817000612

SCREW, 3/8-16X3/4

Note: 817000612

$4.99

$

In Stock, Qty 16

0
