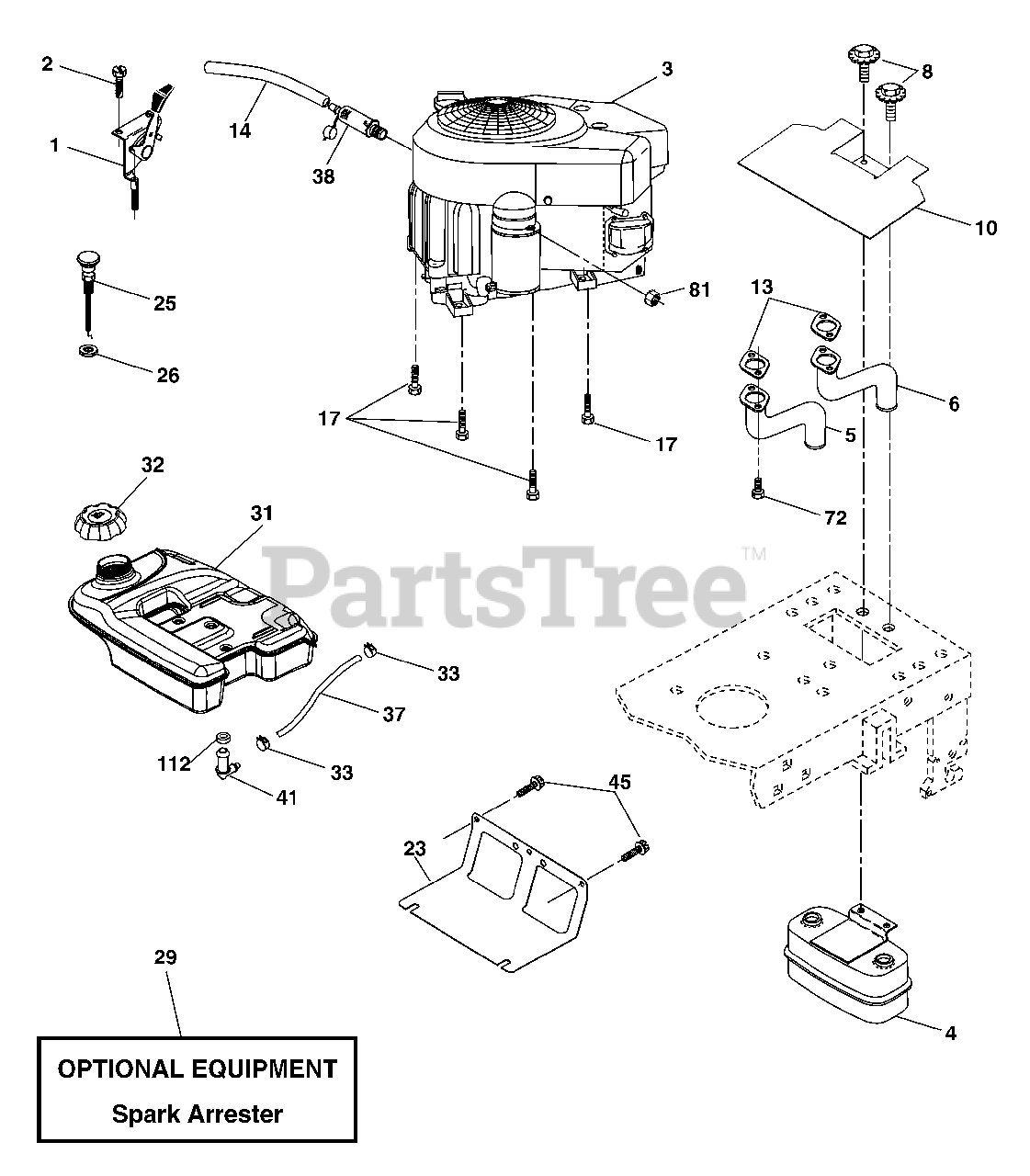

YTH 2148 (954572035-J) - Husqvarna 48" Yard Tractor (2004-05) Engine Parts Diagram

48" Yard Tractor

Engine Parts Diagram

  • Title

1

Husqvarna 532170771

Control Throttle

$

$

Not available

2

Husqvarna 817720408

Screw Hex Thd Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

3

Engine Briggs 385777

Note: (Order Parts From Engine Manufacturer)

$

$

Not available

4

Husqvarna 532149723

Muffler

$74.99

$

In Stock, Qty 5

0

5

Husqvarna 532191548

Exhaust Tube LH

$84.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532191549

Exhaust Tube RH

$91.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532171877

Bolt 5/16-18 unc x 3/4

$7.49

$

In Stock, Qty 5

0

10

Husqvarna 532146629

Shield Heat Muffler
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532165391

Gasket

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 532148456

Tube Drain Oil Easy

$4.99

$

In Stock, Qty 18

0

17

Husqvarna 817060624

Screw 3/8-16 x 1-1/2

$7.49

$

In Stock, only 1 left!

0

23

Husqvarna 532169837

Shield Browning/Debris Guard

$10.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532161729

Control Choke

$

$

Not available

26

Husqvarna 873920600

Nut Keps 3/8-24 unf

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

Kit Spark Arrestor (Flat Scrn)

$182.99

$

In Stock, only 1 left!

0

31

Husqvarna 532179022

Tank Fuel

$

$

Not available

32

Husqvarna 532181803

Cap Asm Fuel
(Superseded to 532179124)

$37.99

$

In Stock, only 1 left!

0

33

Husqvarna 532123487

Clamp Hose Black

$7.49

$

In Stock, Qty 16

0

37

Husqvarna 532142158

Line Fuel
(Superseded to 587044854)

$17.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532181654

Plug Drain Oil Easy
(Superseded to 532428287)

$18.99

$

In Stock, Qty 13

0

41

Husqvarna 532139277

Stem Tank Fuel

$8.99

$

In Stock, Qty 20+

0

45

Husqvarna 817000612

Screw Hex Wsh Thdr 3/8-16 x 3/4

$4.99

$

In Stock, Qty 20+

0

72

Husqvarna 532183906

Screw Socket Head 5/16-18 x 1

$6.49

$

Usually ships in 3-10 days

0

81

Husqvarna 873510400

Nut Keps Hex 1/4-20 Starter Nut
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

112

Husqvarna 532124952

Bushing
(Superseded to 532003645)

$3.99

$

In Stock, Qty 20+

0
