YTH 21K46 (960430123-00) - Husqvarna 46" Yard Tractor (2010-11) ENGINE Parts Diagram

46" Yard Tractor

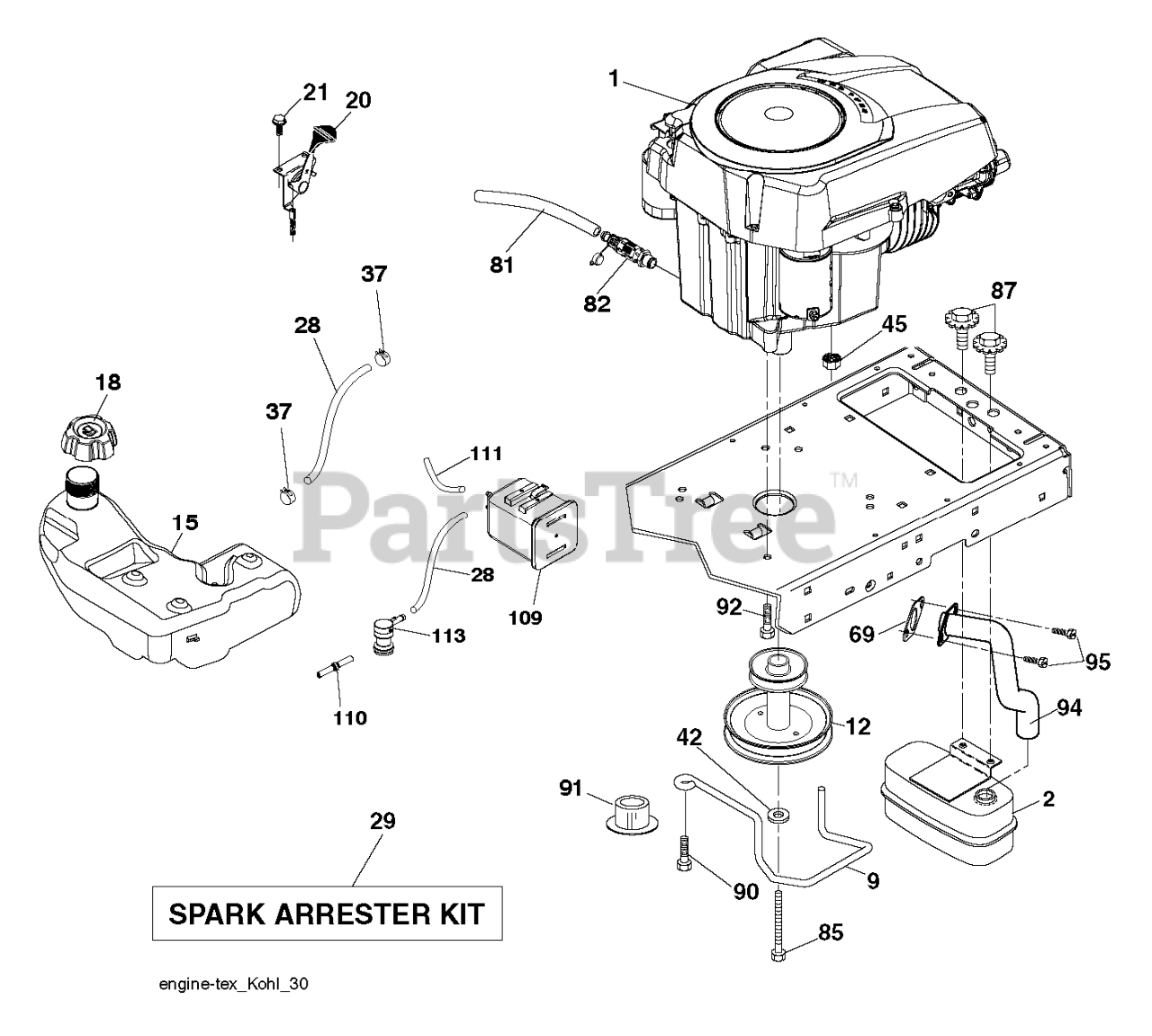

ENGINE Parts Diagram

  • Title

91

Husqvarna 532187495

BUSHING.1.375OD

$5.99

$

In Stock, only 2 left!

0

69

Husqvarna 532185909

GASKET.EXHAUST.KOHLER

$4.99

$

In Stock, Qty 20+

0

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

28

Husqvarna 532401137

LINE.FUEL.20"FRONT.EMI
(Superseded to 587044822)

$14.99

$

In Stock, only 2 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

109

Husqvarna 532414114

CANNISTER, CARBON

$68.99

$

Usually ships in 3-10 days

0

111

Husqvarna 532420718

PURGE.LINE.36"REAR.CALIFORNIA

$5.99

$

Usually ships in 3-10 days

0

110

Husqvarna 532414118

VALVE.ASM.ANTI-SLOSH

$27.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 9

0

94

Husqvarna 532188654

RP.TUBE.EXHAUST.KOHL.COURAGE
(Superseded to 583955301)

$35.99

$

In Stock, Qty 20+

0

12

Husqvarna 532405472

RP_PULLEY ENGINE

$37.99

$

In Stock, only 3 left!

0

113

Husqvarna 532414127

VALVE.SLANT.CARTRDG.90 DEG.TEX
(Superseded to 597791601)

$14.99

$

In Stock, only 2 left!

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$23.99

$

In Stock, Qty 20+

0

20

Husqvarna 532401508

CONTROL.TH/CK.COBRA.KO

$31.99

$

In Stock, only 2 left!

0

2

Husqvarna 532188655

MUFFLER.SINGLE.CYL.KOHL/B&S

$53.99

$

In Stock, Qty 20+

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.99

$

In Stock, only 2 left!

0

95

Husqvarna 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 532430213

RP CAP ASM
(Superseded to 532439208)

$41.99

$

In Stock, only 2 left!

0

15

Husqvarna 532414151

TANK.ASM.FUEL.3GA.CARB
(Superseded to 532420709)

$

$

Not available

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

$3.99

$

In Stock, Qty 9

0

87

Husqvarna 537171877

BOLT 5/1618UNC X 3/4 W/ SEMS
(Superseded to 532171877)

$5.99

$

In Stock, Qty 10

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

9

Husqvarna 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 596501502)

$14.99

$

In Stock, only 2 left!

0

1

000000000

Note: Kohler Model No. SV610-3214

$

$

Not available

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$3.99

$

In Stock, only 2 left!

0
