YTH 223 T (960410196-00) - Husqvarna Yard Tractor (2010-11) ENGINE Parts Diagram

Yard Tractor

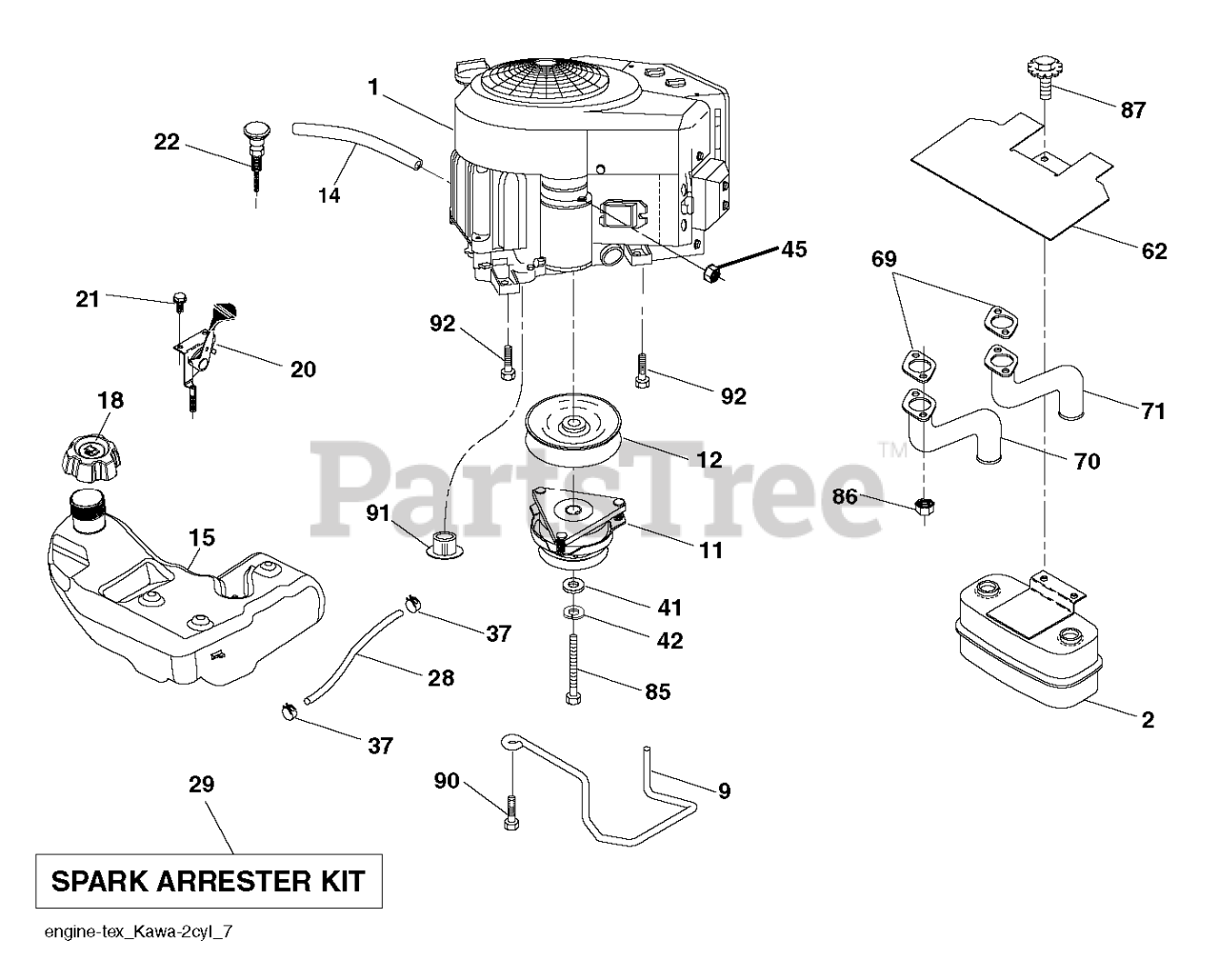

ENGINE Parts Diagram

  • Title

11

Husqvarna 532400008

CLUTCH.ELECTRIC.LT.48"*
(Superseded to 532414336)

$395.99

$

In Stock, Qty 10

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

28

Husqvarna 532142158

REPL BY 532 00 85-43
(Superseded to 587044854)

$23.99

$

In Stock, only 4 left!

0

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

92

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 20+

0

91

Husqvarna 532187495

BUSHING.1.375OD

$5.99

$

In Stock, only 2 left!

0

20

Husqvarna 532178385

THROTTLE CABLE
(Superseded to 532175437)

$33.99

$

In Stock, only 2 left!

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

$3.99

$

In Stock, Qty 13

0

41

Husqvarna 532126197

WASHER

$8.49

$

In Stock, Qty 15

0

22

Husqvarna 532191596

CONTROL.CHOKE.ERGO.PUSH-IN.BLA

$41.99

$

In Stock, Qty 5

0

15

Husqvarna 532193499

TANK.FUEL.4GAL

$96.99

$

In Stock, only 1 left!

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

18

Husqvarna 532430217

RP CAP FUEL
(Superseded to 532439645)

$21.99

$

In Stock, only 4 left!

0

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 596501502)

$14.99

$

In Stock, only 1 left!

0

69

Husqvarna 532178151

GASKET

$2.49

$

In Stock, Qty 20+

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

12

Husqvarna 532405097

PULLEY.ENGINE.TUFFTORQ

$71.99

$

Usually ships in 3-10 days

0

1

000000000

Note: KAWA ENGINE MODEL FS651V-AS50

$

$

Not available

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 2 left!

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 12

0

71

Husqvarna 532424766

TUBE.EXHAUST.RH.FR961/FR730
(Superseded to 583955701)

Note: RH

$33.99

$

In Stock, only 2 left!

0

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$53.99

$

In Stock, only 2 left!

0

70

Husqvarna 532424765

TUBE.EXHAUST.LH.FR961/FR730
(Superseded to 583955601)

Note: LH

$33.99

$

In Stock, only 4 left!

0

86

Husqvarna 532184362

NUT.HEX.FLANGE.TOPLOCK

$3.99

$

In Stock, Qty 5

0

87

Husqvarna 532198239

BOLT.5/16-18UNCX1.W/SEMS.BLK

$3.99

$

In Stock, only 3 left!

0
