YTH 224 T (960410248-00) - Husqvarna Yard Tractor (2011-11) STEERING Parts Diagram

Yard Tractor

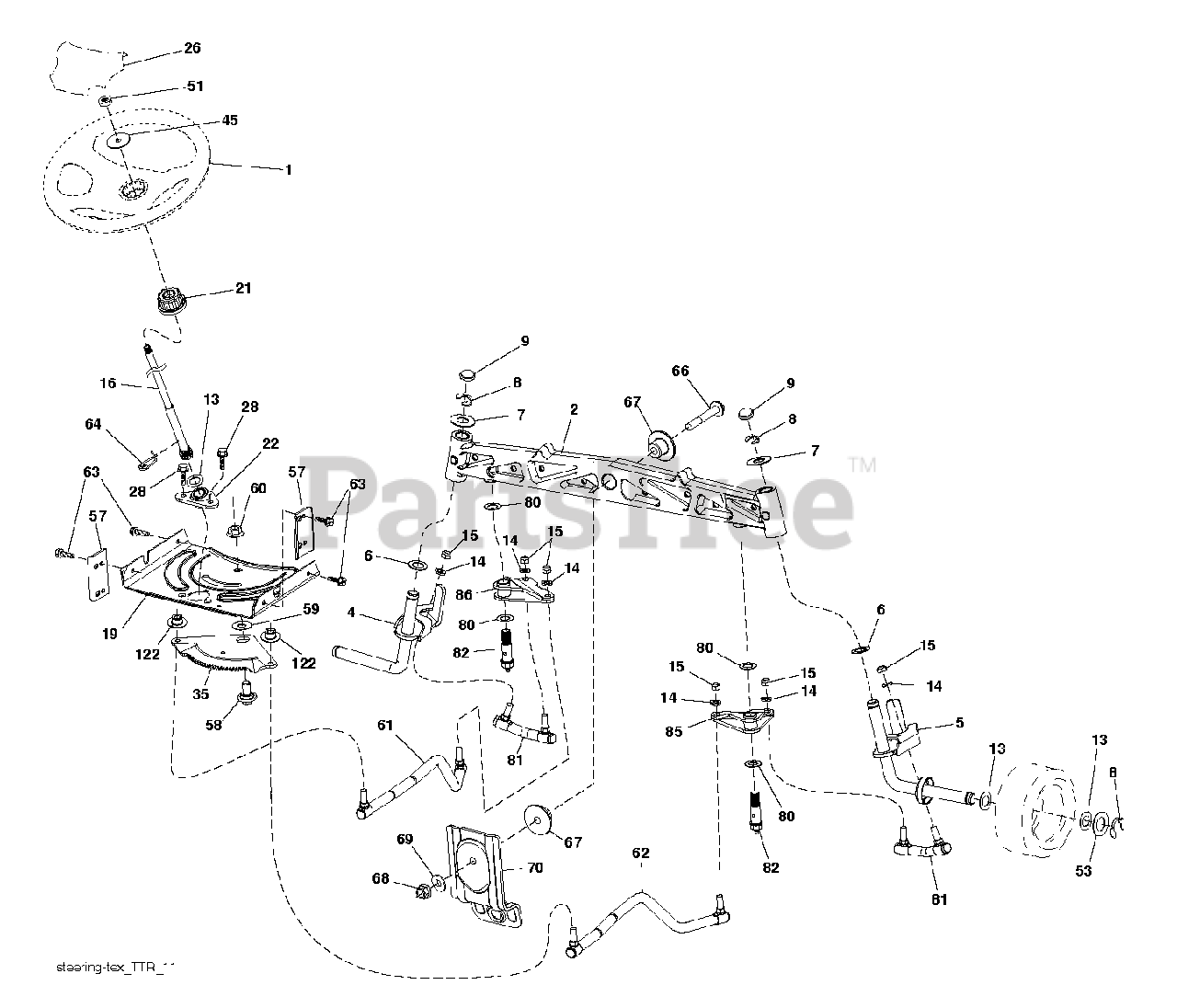

STEERING Parts Diagram

  • Title

1

Husqvarna 532439740

WHEEL.STEER.HUSQ.SR.498.OVMLD

$93.99

$

In Stock, Qty 5

0

2

Husqvarna 532436870

RP SUBASM.AXLE.CAST.NZTR.
(Superseded to 583512701)

$227.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532436873

SPINDLE WELDMENT.SPINDLE.LH.15
(Superseded to 583512801)

Note: LH

$37.99

$

In Stock, only 2 left!

0

5

Husqvarna 532436874

SPINDLE WELDMENT.SPINDLE.RH.15
(Superseded to 583512901)

Note: RH

$31.99

$

In Stock, only 2 left!

0

6

Husqvarna 532124931

THRUST WASHER
(Superseded to 532006266)

$4.99

$

In Stock, only 3 left!

0

7

Husqvarna 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 812000029

RING CLIP

$1.49

$

In Stock, Qty 20+

0

9

Husqvarna 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 532121749

WASHER

$3.49

$

In Stock, Qty 20+

0

14

Husqvarna 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 532444212

SHAFT SHAFT.STEERING.2HIGH.PLA
(Superseded to 587738904)

$51.99

$

In Stock, Qty 20+

0

19

Husqvarna 532194729

PLATE.STEER.DDL.NLT/NG
(Superseded to 531169101)

$28.99

$

In Stock, only 2 left!

0

21

Husqvarna 532437747

RP STEERING.WHEEL.ADAPTER
(Superseded to 587738905)

$11.99

$

In Stock, Qty 7

0

22

Husqvarna 532194845

BUSHING.ASM.STEERING.A
(Superseded to 587738901)

Note: The updated part number will only work with models manufactured in 2017 or later. Older models must order part number 587738904, Steering Shaft Service Kit.

$17.99

$

In Stock, Qty 10

0

26

Husqvarna 532439743

INSERT.CAP.WHL.STRG.HUSQ.PREM

$13.99

$

In Stock, only 2 left!

0

28

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532440770

GEAR GEAR.SECTOR.TEX.NZTR
(Superseded to 583551401)

$51.99

$

In Stock, only 1 left!

0

45

Husqvarna 819183812

WASHER 9/16"ID, 2 3/8"OD

$9.49

$

Usually ships in 3-10 days

0

51

Husqvarna 873940800

NUT.HEX.1/2-20

$4.99

$

In Stock, Qty 7

0

53

Husqvarna 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

57

Husqvarna 532407465

BRACKET.UPSTOP.TEX

$6.99

$

In Stock, only 1 left!

0

58

Husqvarna 532194747

BOLT.SHOULDER.SECTOR.P

$9.49

$

In Stock, Qty 17

0

59

Husqvarna 532194748

WASHER.THURST.SECTOR.S

$5.99

$

In Stock, Qty 15

0

60

Husqvarna 873971000

NUT FLANGE LOCK 5/8-11
(Superseded to 583612801)

$3.49

$

In Stock, Qty 10

0

61

Husqvarna 532436884

LINK SUBASM.LINK.DRAG.LH.NZTR
(Superseded to 597069802)

$39.99

$

In Stock, Qty 12

0

62

Husqvarna 532436885

TUBE TUBE
(Superseded to 597069902)

$39.99

$

In Stock, Qty 10

0

63

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 19

0

64

Husqvarna 532199849

RETAINER.CLIP.SPRING.S

$4.99

$

In Stock, Qty 10

0

66

Husqvarna 871020748

BOLT HEX FGHD 7/16-14 X 3 SERR

$5.99

$

In Stock, Qty 19

0

67

Husqvarna 532194737

BUSHING.PM.FRONT AXLE
(Superseded to 529496302)

$3.49

$

Usually ships in 3-10 days

0

68

Husqvarna 873900700

NUT.LOCK.FLANGE.7/16

$4.99

$

In Stock, Qty 7

0

69

Husqvarna 532199162

WASHER.1.5X.505X.118

$5.99

$

In Stock, Qty 11

0

70

Husqvarna 532196197

BRKT.DECK.SUSPENSION.F
(Superseded to 585338802)

$20.99

$

Usually ships in 3-10 days

0

80

Husqvarna 532001370

THRUST WASHER

$6.49

$

In Stock, only 1 left!

0

81

Husqvarna 532436887

LINK SUBASM.LINK.CROSS.NZTR
(Superseded to 597069702)

$13.99

$

In Stock, Qty 19

0

82

Husqvarna 532436877

$

$

Not available

85

Husqvarna 532441873

PIVOT SUBASM.PIVOT.RH.NZTR
(Superseded to 529846901)

$22.99

$

In Stock, only 1 left!

0

86

Husqvarna 532441872

PIVOT SUBASM.PIVOT.LH.NZTR
(Superseded to 583561001)

$31.99

$

In Stock, only 3 left!

0

122

Husqvarna 532444962

CAP.GEAR.SECTOR.TEX
(Superseded to 583576601)

$5.99

$

In Stock, Qty 20+

0
