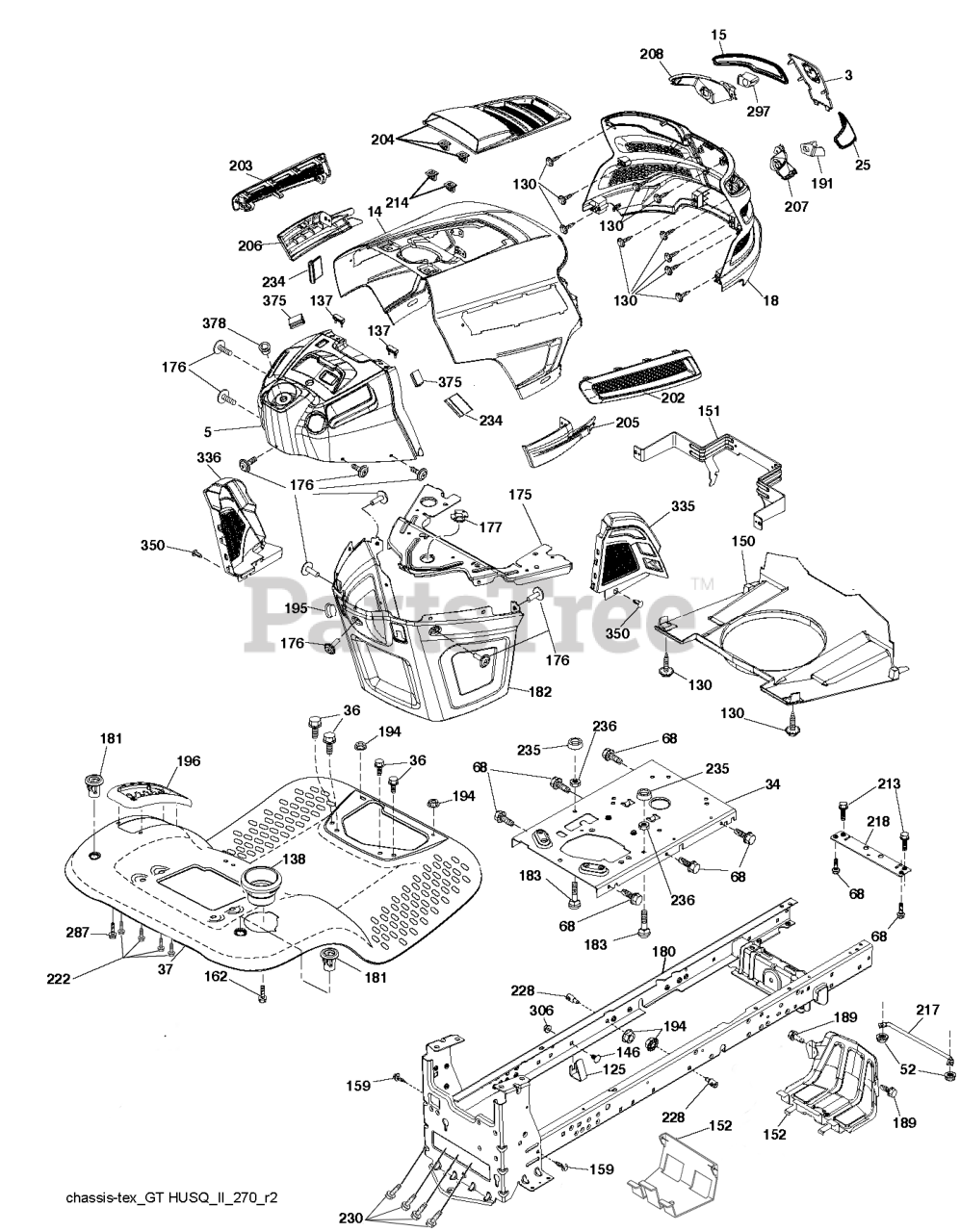

YTH 2246 - Husqvarna 46" Yard Tractor (Original) CHASSIS / FRAME Parts Diagram

46" Yard Tractor

CHASSIS / FRAME Parts Diagram

  • Title

36

Husqvarna 817060512

SCREW 5/16"
(Superseded to 532171877)

$5.99

$

In Stock, Qty 10

0

350

Husqvarna 532445143

CLIP.X-MAS.TREE

$3.49

$

In Stock, Qty 20+

0

235

Husqvarna 596564201

Spacers

$5.99

$

Usually ships in 3-10 days

0

208

Husqvarna 532197199

BEZEL.LH.TEX.GT.HUSQ

Note: For 96043003700, 960430037

$

$

Not available

207

Husqvarna 587464801

HEADLIGHT.CUP.BEZEL.HUS.GT2.RH

Note: RH

$14.99

$

In Stock, only 3 left!

0

68

Husqvarna 596030701

Screws

$3.99

$

In Stock, Qty 7

0

217

Husqvarna 532409167

ROD.PIVOT.HOOD

$14.99

$

In Stock, only 2 left!

0

230

Husqvarna 532170165

SHOULDER BOLT 5/16-18TT

Note: For 96043003700, 960430037

$4.99

$

In Stock, Qty 20+

0

138

Husqvarna 532439747

HOLDER.CUP.LT.GREY

$5.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532441266

FENDER.TLT.FS.W/CUPHLD.ORANGE

$319.99

$

Usually ships in 3-10 days

0

189

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

152

Husqvarna 532439870

SHIELD.BROWNING.PNT.GT.V2

Note: For 223905

$23.99

$

In Stock, Qty 20+

0

204

Husqvarna 532400539

VENT.ASM.HOOD.TOP.TEX.
(Superseded to 532416615)

Note: For 96043003700, 960430037

$

$

Not available

14

Husqvarna 532441177

HOOD.ASM.HUSQVARNA.GT.TEX.ORAN
(Superseded to 587483301)

$119.99

$

In Stock, only 1 left!

0

151

Husqvarna 532436670

BRACKET.PIVOT.HOOD.GT.HUSQ.II
(Superseded to 531077401)

$53.99

$

In Stock, only 2 left!

0

159

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 17

0

205

Husqvarna 532439730

SIDE.TRIM.RH.GT.HUSQ.II

Note: RH

$17.99

$

In Stock, only 1 left!

0

204

Husqvarna 587485801

VENT.TOP.ASM.HUSQ.GT2

Note: For 223905

$28.99

$

In Stock, Qty 9

0

202

Husqvarna 532439728

VENT.SIDE.RH.GT.HUSQ.II.

Note: RH

$21.99

$

In Stock, Qty 7

0

218

Husqvarna 532196395

X-PIECE.HOOD.STOP.NON/

$8.49

$

In Stock, only 2 left!

0

214

Husqvarna 532199145

CLIP.RETAINER.TINNER.

$3.99

$

In Stock, Qty 10

0

15

Husqvarna 532439733

LENS.HEADLIGHT.LH.GTII.2011

Note: For 223905

$14.99

$

In Stock, only 3 left!

0

146

Husqvarna 581857901

BOLT.RDHD.SHT.SQNK.3/8-16X5/8

$3.99

$

Usually ships in 3-10 days

0

177

Husqvarna 532195228

BUSHING STEERING

Note: For 223905

$5.99

$

In Stock, Qty 20+

0

195

Husqvarna 532404137

PLUG.HOLE.DASH.LOWER.12V.BLK

$3.99

$

Usually ships in 3-10 days

0

213

Husqvarna 596030501

SCREW HEXAGON HEAD SCREW 5/16-

$4.99

$

In Stock, Qty 20+

0

177

Husqvarna 532195227

BUSHING, STEERING

Note: For 96043003700, 960430037

$2.49

$

In Stock, Qty 20+

0

137

Husqvarna 532407590

BUMPER DASH

$4.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532400776

SCREW.#10-24X5/8.RN.QU

$4.99

$

In Stock, only 2 left!

0

180

Husqvarna 532195457

CHASSIS
(Superseded to 579841501)

$

$

Not available

306

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

18

Husqvarna 587523401

GRILLE SUBASM.GT.II.LOW.HDLGHT
(Superseded to 597247201)

$119.99

$

In Stock, only 4 left!

0

228

Husqvarna 593824001

STUD.W/"D"ANTI-ROTATION

$4.99

$

In Stock, only 3 left!

0

3

Husqvarna 532444481

APPLIQUE.SUBASM.GT.HUSQ.II

$27.99

$

Usually ships in 3-10 days

0

336

Husqvarna 532445309

COVER-LH.LOWER.DASH.GT2.BLACK

$33.99

$

In Stock, Qty 9

0

375

Husqvarna 586908201

BUMPER CLIP-ON. DASH 1"

$4.99

$

Usually ships in 3-10 days

0

222

Husqvarna 532137729

SCREW.1/4-20X5/8

Note: For 96043003700, 960430037

$2.49

$

In Stock, Qty 20+

0

287

Husqvarna 817600406

SCREW 1/4X20

$3.99

$

Usually ships in 3-10 days

0

130

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 9

0

203

Husqvarna 532439727

VENT.SIDE.LH.GT.HUSQ.II.498

Note: LH

$21.99

$

In Stock, only 3 left!

0

125

Husqvarna 581684801

CLIP.FUEL.LINE

$3.49

$

Usually ships in 3-10 days

0

162

Husqvarna 596134101

Screws

$3.99

$

In Stock, Qty 13

0

181

Husqvarna 532439746

BUSHING.MNT.FEND.CRGO.TEX.49
(Superseded to 532403025)

$5.99

$

Usually ships in 3-10 days

0

150

Husqvarna 532439774

AIR.DUCT.GTV.BLACK

$53.99

$

In Stock, Qty 5

0

196

Husqvarna 532439647

DECKLFT.CONSOL FULL ASSM GREY

$

$

Not available

206

Husqvarna 532439729

SIDE.TRIM.LH.GT.HUSQ.II.GRAY

Note: LH

$21.99

$

In Stock, only 4 left!

0

235

Husqvarna 532406129

SPACER FENDER
(Superseded to 596564201)

Note: For 96043003700, 960430037

$5.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532443385

LENS.HEADLIGHT.RH.GTII.2011

Note: RH

$14.99

$

In Stock, Qty 5

0

297

Husqvarna 532437456

INSERT.REFLECTIVE.LH.HUSQ.GTII

$21.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532198907

LENS.LH.TEX.GT.HUSQ.CL

Note: For 96043003700, 960430037

$33.99

$

In Stock, only 1 left!

0

191

Husqvarna 532437455

INSERT.REFLECTIVE.RH.HUSQ.GTII

$21.99

$

In Stock, only 2 left!

0

335

Husqvarna 532448204

COVER.LOWER.DASH.RH.BLACK

Note: For 223905

$33.99

$

In Stock, Qty 7

0

175

Husqvarna 590607702

PLATE.PNT.CROSSMEMBER.HUSQ/PRE

$41.99

$

Usually ships in 3-10 days

0

378

Husqvarna 590849801

BUSHING FLANGE; PLASTIC

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 590748818

DASHBOARD.UPPER.ASM.GT2.X498

$47.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532199535

SHIELD.BROWNING.W/TEX
(Superseded to 531169901)

Note: For 96043003700, 960430037

$29.99

$

In Stock, Qty 7

0

236

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$3.49

$

In Stock, only 4 left!

0

208

Husqvarna 587464501

HEADLIGHT.CUP.BEZEL.HUS.GT2.LH

Note: For 223905

$14.99

$

In Stock, only 2 left!

0

183

Husqvarna 595305701

Screws

$4.99

$

In Stock, only 1 left!

0

234

Husqvarna 532404742

BUMPER.HOOD.TEX.HUSQVARNA

Note: For 96043003700, 960430037

$7.49

$

Usually ships in 3-10 days

0

34

Husqvarna 580910801

PLATE.ENGINE.WELDED.CHASSIS

$77.99

$

Usually ships in 3-10 days

0

182

Husqvarna 586738602

DASH LOWER.HUSQ.PRED NO CRUISE

$83.99

$

Usually ships in 3-10 days

0

194

Husqvarna 596135701

GSPW Nuts

$3.99

$

In Stock, Qty 20+

0
