YTH 22V42 (960430109-01) - Husqvarna 42" Yard Tractor (2010-12) ENGINE Parts Diagram

42" Yard Tractor

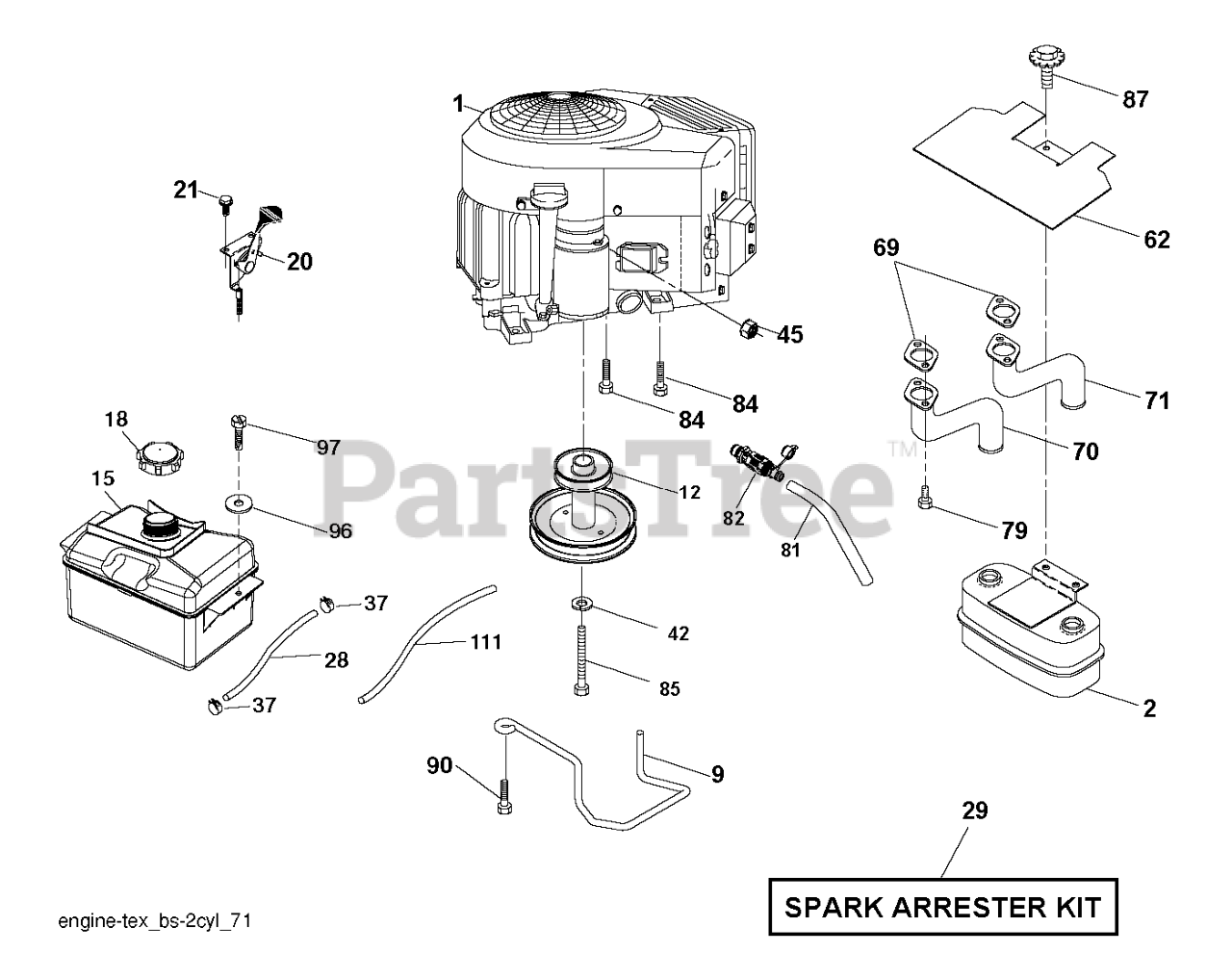

ENGINE Parts Diagram

  • Title

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$51.99

$

Usually ships in 3-10 days

0

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

87

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$5.99

$

In Stock, only 2 left!

0

71

Husqvarna 581881001

EXHAUST.TUBE.RH.B&S.TWIN.INTEK

Note: RH

$28.99

$

In Stock, only 3 left!

0

20

Husqvarna 532423502

CONTROL.TH/CK.COBRA.B&S.TWN.BK

$26.99

$

In Stock, Qty 10

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS

$

$

Not available

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.49

$

In Stock, Qty 15

0

111

Husqvarna 532414119

RP PURGE LINE
(Superseded to 587044580)

$14.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, only 3 left!

0

12

Husqvarna 532405471

PULLY ENGINE
(Superseded to 586478501)

$34.99

$

In Stock, only 2 left!

0

15

Husqvarna 532433007

TANK.ASM.FRT.2.5 GAL.W/CAP.EPA
(Superseded to 532433005)

$

$

Not available

1

000000000

Note: Engine Briggs Model No. 40777-2195-G1

$

$

Not available

84

Husqvarna 817060620

SCREW.3/8-16

$6.99

$

In Stock, Qty 6

0

9

Husqvarna 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 596501502)

$13.99

$

In Stock, only 3 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 7

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 8

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$20.99

$

In Stock, only 3 left!

0

28

Husqvarna 532401137

LINE.FUEL.20"FRONT.EMI
(Superseded to 587044822)

$13.99

$

In Stock, only 3 left!

0

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$3.49

$

In Stock, Qty 10

0

79

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18
(Superseded to 596134202)

$3.49

$

In Stock, Qty 19

0

70

Husqvarna 581881101

EXHAUST.TUBE.LH.BS/TWIN

Note: LH

$34.99

$

In Stock, Qty 5

0

96

Husqvarna 819091416

WASHER
(Superseded to 596135301)

$3.49

$

In Stock, Qty 6

0

69

Husqvarna 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$193.99

$

In Stock, only 1 left!

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$13.99

$

In Stock, only 2 left!

0

18

Husqvarna 532438596

CAP.2.25'.VENTED.TETHER .EPA

$31.99

$

In Stock, only 3 left!

0
