YTH 22V42 LS (960430097-01) - Husqvarna 42" Yard Tractor (2010-06) Mower Deck Parts Diagram

42" Yard Tractor

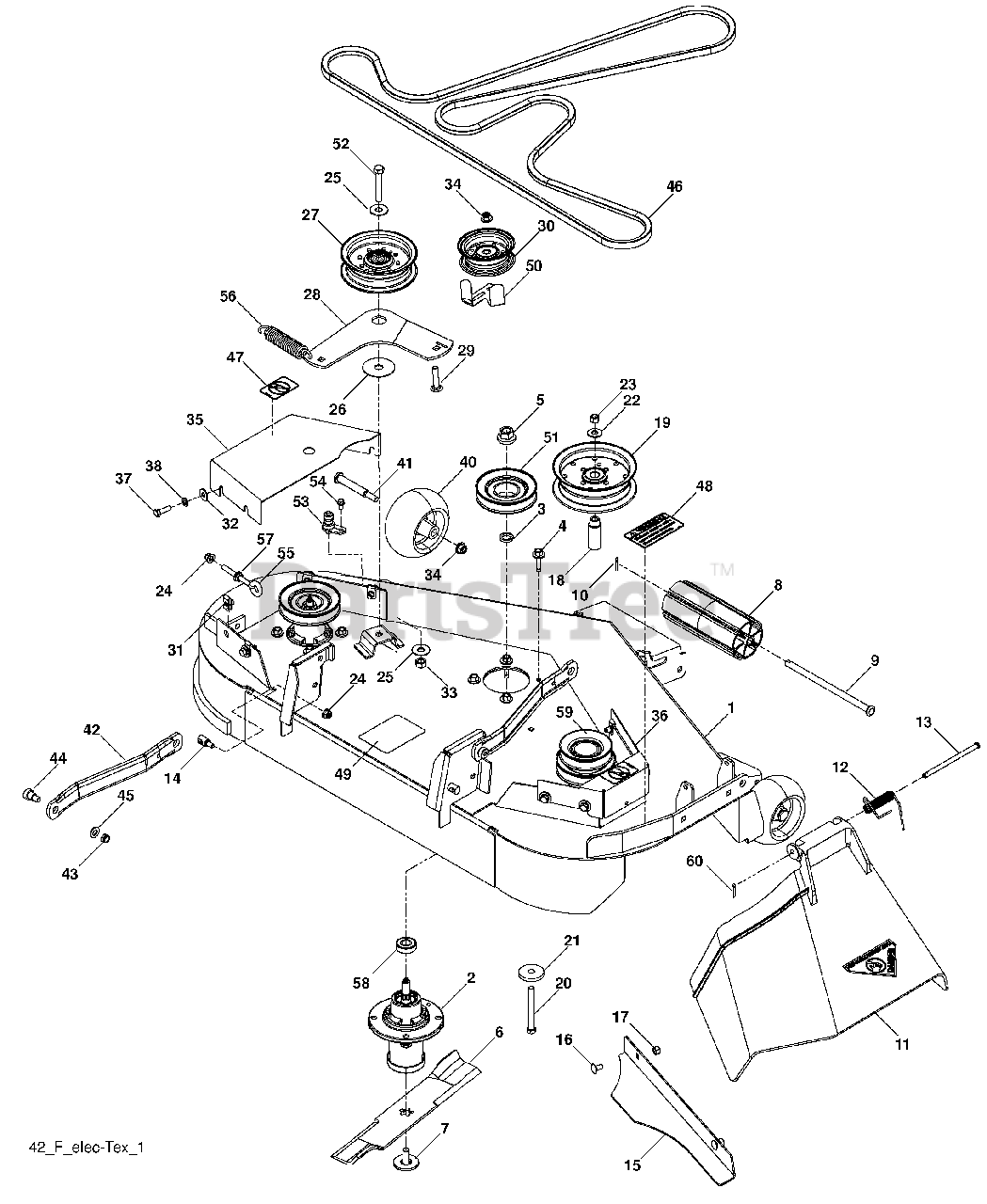

Mower Deck Parts Diagram

  • Title

1

Husqvarna 575438001

Deck w/Decals 42"

$1941.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539112170

Housing Assembly

$74.99

$

In Stock, Qty 20+

0

3

Husqvarna 539107520

Washer-Spacer
(Superseded to 532187690)

$3.49

$

In Stock, Qty 20+

0

4

Husqvarna 539107630

Screw, Washer Head
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

5

Husqvarna 539107590

Nut, 9/16 Top Center Lock
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

6

Husqvarna 539112078

Blade, 14-5/8"

$21.99

$

In Stock, Qty 20+

0

7

Husqvarna 539107522

Bolt, 7/16, Assy Blade
(Superseded to 532193003)

$8.99

$

In Stock, Qty 20+

0

8

Husqvarna 532176066

Roller, Nose

$9.99

$

In Stock, Qty 20+

0

9

Husqvarna 532179127

Rod, Roller, Nose
(Superseded to 594092501)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532194208

Clip Retainer

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 532110731

Discharge Chute - 42" Plastic
(Superseded to 539110731)

$53.99

$

In Stock, Qty 7

0

12

Husqvarna 532110735

Spring - Torsion
(Superseded to 539110735)

$

$

Not available

13

Husqvarna 532110736

Pin, Clevis 5/16 x 5.19

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532195161

Stud, Fasten w/ Anti- Rotate

$

$

Not available

15

Husqvarna 539112413

Confinement Plate

$40.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990799

Rhsnb 5/16-18 x 5/8 Gr. 5
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539990717

Nut 5/16-18 Hex Nyloc
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 575224501

Idler Bushing

$24.99

$

In Stock, only 4 left!

0

19

Husqvarna 539132728

Pulley, Idler
(Superseded to 589766102)

$29.99

$

In Stock, Qty 20+

0

20

Husqvarna 539108271

Hcs 3/8-16 x 3-1/2 Gr. 5

$4.99

$

In Stock, Qty 9

0

21

Husqvarna 539106504

Heavy Washer

$

$

Not available

22

Husqvarna 539990517

Washer, 3/8 Flat Std

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539976979

Nut 3/8-16 Hex Nyloc
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 539112899

Nut 5/16-18 Hex Flange Nyloc
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

25

Husqvarna 539104864

Washer, 7/16 Flat
(Superseded to 596437601)

$3.99

$

In Stock, Qty 11

0

26

Husqvarna 532178515

Washer, Flat Hardened

$6.49

$

In Stock, Qty 20+

0

27

Husqvarna 532196104

Pulley, Idler Spec. Hub

$34.99

$

In Stock, Qty 20+

0

28

Husqvarna 574827102

Arm, Idler, Blk

$37.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990923

Rhsnb 3/8-16 x 1-3/4 Gr. 5

$3.99

$

In Stock, only 3 left!

0

30

Husqvarna 532177968

Pulley, Idler

$24.99

$

In Stock, Qty 20+

0

31

Husqvarna 539104763

Retainer 5/16c U Type

$6.49

$

In Stock, Qty 15

0

32

Husqvarna 539990692

Washer, 5/16 Std Flt
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

33

Husqvarna 539119124

Nut, 7/16-14 Hex Nyloc

$

$

Not available

34

Husqvarna 521996501

Nut 3/8-16 Hex Flg Nyloc

$

$

Not available

35

Husqvarna 575224702

Shield, Belt LH

$48.99

$

Usually ships in 3-10 days

0

36

Husqvarna 575500302

Shield, Belt RH
(Superseded to 575967102)

$

$

Not available

37

Husqvarna 539990209

Hcs 5/16-18 x 1 Gr. 5

$3.49

$

Usually ships in 3-10 days

0

38

Husqvarna 539990187

Wash 5/16 Slw
(Superseded to 596238801)

$3.99

$

In Stock, Qty 18

0

40

Husqvarna 539107610

Wheel, Gauge
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

41

Husqvarna 539107608

Bolt, Shoulder
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

42

Husqvarna 532195185

Arm, Susp., Rear

$18.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539200282

Nut, 3/8-16 Hex Jam Nyloc

$

$

Not available

44

Husqvarna 539113621

Sb 3/8-16 x 3/8 Skt Hd
(Superseded to 596241101)

$3.99

$

In Stock, only 4 left!

0

45

Husqvarna 539990122

Washer, 3/8 Sae Flt
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

46

Husqvarna 574845601

Belt, 42" Fab Deck

$85.99

$

In Stock, Qty 12

0

47

Husqvarna 539105743

Decal, No Step
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

48

Husqvarna 539113224

Decal, Warning

$9.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532198785

Decal, Deck Sch
(Superseded to 581580002)

$3.99

$

In Stock, Qty 8

0

50

Husqvarna 575224301

Guard, Belt
(Superseded to 532141043)

$4.99

$

In Stock, Qty 17

0

51

Husqvarna 575224401

Pulley, Mandrel

$37.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539104870

Hcs 7/16-14 x 2-1/2 Gr. 5
(Superseded to 874780740)

$3.99

$

In Stock, Qty 13

0

53

Husqvarna 532415598

Washout Port

$8.99

$

In Stock, Qty 20+

0

54

Husqvarna 539108461

Bolt, 1/4-20 x 1/2

$4.99

$

In Stock, Qty 10

0

55

Husqvarna 539115574

Eyebolt 5/16 x 3-1/2

$

$

Not available

56

Husqvarna 539106850

Spring

$

$

Not available

57

Husqvarna 539990585

Nut 5/16-18 Hex Whizlk

$3.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539112050

Ball Bearing

$7.49

$

In Stock, Qty 20+

0

59

Husqvarna 575416201

Pulley

$75.99

$

In Stock, only 2 left!

0

60

Husqvarna 532169484

Reainter Clip

$

$

Not available

Husqvarna 532416405

Coupling Quick Connect

$8.99

$

In Stock, Qty 20+

0

Husqvarna 575015801

Mower Deck Complete
(Superseded to 575438001)

$1941.99

$

Usually ships in 3-10 days

0
