YTH 22V42 LS (960430097-01) - Husqvarna 42" Yard Tractor (2010-06) Mower Lift Parts Diagram

42" Yard Tractor

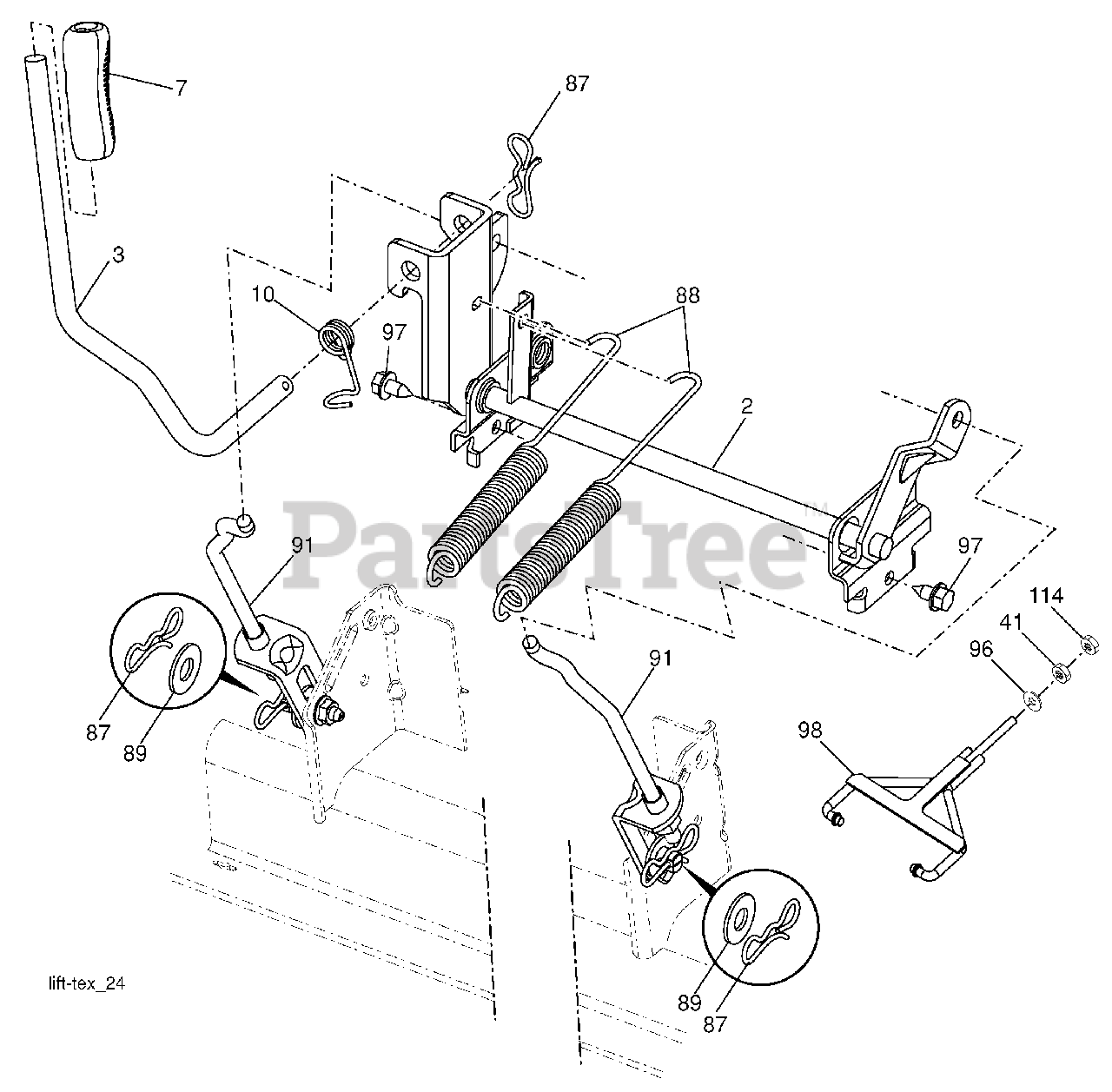

Mower Lift Parts Diagram

  • Title

2

Husqvarna 532422027

Shaft Asm., Lift

$80.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532195231

Lever Asm., Lift RH

$

$

Not available

7

Husqvarna 532411555

Grip, Lever

$6.49

$

In Stock, Qty 6

0

10

Husqvarna 532196314

Spring Torsion

$6.49

$

In Stock, Qty 5

0

41

Husqvarna 532175994

Nut, Lift Link
(Superseded to 589464902)

$3.99

$

In Stock, Qty 20+

0

87

Husqvarna 532194209

Pin Cotter 7/16 Bow Tie Lock

$3.99

$

In Stock, Qty 20+

0

88

Husqvarna 532410710

Spring Lift Assist

$8.99

$

In Stock, Qty 17

0

89

Husqvarna 819191912

Washer Clear Zinc

$6.49

$

In Stock, Qty 20+

0

91

Husqvarna 532403407

Link Lift Susp Mower Rear

$

$

Not available

96

Husqvarna 532195263

Bushing, Spherical

$

$

Not available

97

Husqvarna 817000612

Screw 3/8-16 x 3/4

$4.99

$

In Stock, Qty 20+

0

98

Husqvarna 574822501

Link Lift Susp. Front Mower

$103.99

$

Usually ships in 3-10 days

0

100

Husqvarna 873930600

Nut Center Lock 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

101

Husqvarna 532407003

Link Asm Lift FXD

$18.99

$

In Stock, Qty 7

0

114

Husqvarna 873360700

Nut Jam 7/16-20
(Superseded to 873610700)

$7.49

$

Usually ships in 3-10 days

0
