YTH 22V42 LS (960430113-00) - Husqvarna 42" Yard Tractor (2010-10) MOWER DECK / CUTTING DECK Parts Diagram

42" Yard Tractor

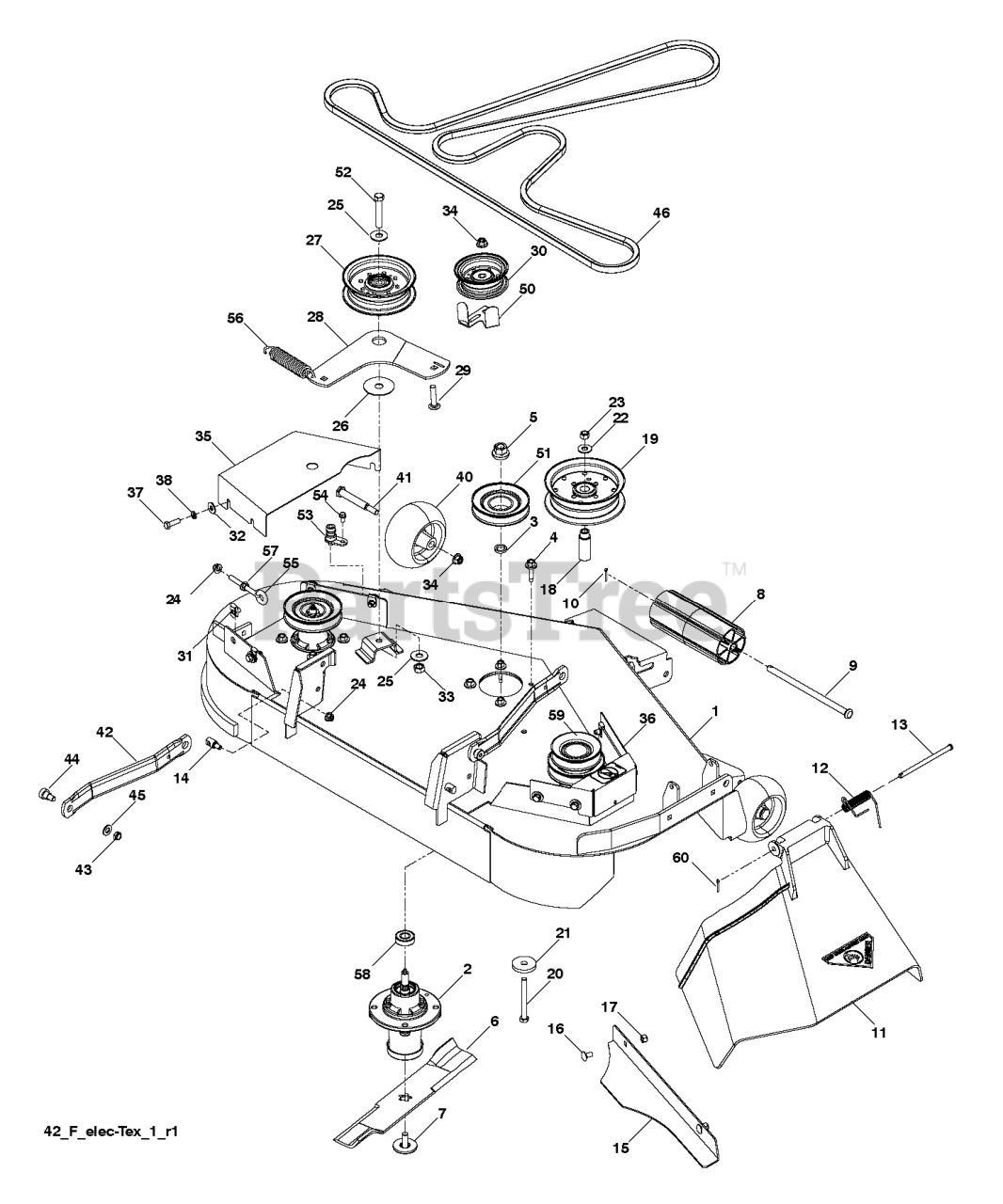

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

5

Husqvarna 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$2.49

$

In Stock, Qty 20+

0

56

Husqvarna 539106850

SPRING
(Superseded to 596645601)

$11.99

$

In Stock, only 2 left!

0

11

Husqvarna 539110731

DISCHARGE CHUTE 42"

$65.99

$

In Stock, Qty 18

0

23

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

43

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 539976979)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 539110736

PIN-CLEVIS 5/16 DIA X 5.19 ZD
(Superseded to 595935501)

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.49

$

In Stock, Qty 7

0

37

Husqvarna 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.99

$

In Stock, Qty 19

0

12

Husqvarna 539110735

SPRING - TORSION
(Superseded to 596646001)

$4.99

$

In Stock, Qty 15

0

19

Husqvarna 539132728

PULLEY, IDLER
(Superseded to 589766102)

$35.99

$

In Stock, Qty 20+

0

22

Husqvarna 539990517

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 20+

0

60

Husqvarna 532169484

RETAINER CLIP
(Superseded to 596029401)

$4.99

$

In Stock, Qty 6

0

1

Husqvarna 575438001

DECK SVC W/DECALS 42 YTH ORNGE

$2393.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 532445357

DECK.ASM SVC.42F.EL.GW.WP.668
(Superseded to 575438001)

$2393.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539112050

BEARING, BALL

$7.49

$

In Stock, Qty 20+

0

44

Husqvarna 539113621

SB 3/8-16 X 3/8 SKT HD ZD
(Superseded to 596241101)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 539107610

GAUGE WHEEL
(Superseded to 532133957)

$14.99

$

In Stock, Qty 20+

0

3

Husqvarna 539107520

WASHER-SPACER
(Superseded to 532187690)

$5.99

$

In Stock, Qty 20+

0

2

Husqvarna 539112170

MANDREL.DECK.ASSEMBLY

$101.99

$

In Stock, Qty 20+

0

35

Husqvarna 575224702

SHIELD.BELT.LH.ORANGE

$48.99

$

Usually ships in 3-10 days

0

28

Husqvarna 574827102

ARM, IDLER, BLK

$

$

Not available

52

Husqvarna 539104870

BOLT 7/16-14 X 2-1/2 GR 5 ZD
(Superseded to 596435201)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 11

0

10

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$1.49

$

In Stock, Qty 20+

0

21

Husqvarna 539106504

SPINDLE WASHER
(Superseded to 596770301)

$5.99

$

In Stock, Qty 5

0

59

Husqvarna 575416201

PULLEY, COLLECTION 42

$

$

Not available

51

Husqvarna 575224401

PULLEY, MANDREL 4.08 OP

$34.99

$

In Stock, only 3 left!

0

57

Husqvarna 539990585

NUT 5/16C WHIZ
(Superseded to 596039201)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 575500302

SHIELD.BELT.RH.ORG
(Superseded to 575967102)

$

$

Not available

42

Husqvarna 532195185

ARM.SUSPENSION.MOWER
(Superseded to 531169201)

$17.99

$

In Stock, Qty 8

0

4

Husqvarna 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

41

Husqvarna 539107608

SHOULDER BOLT 1/2X2-5/8 ZD SPE
(Superseded to 532193406)

$2.49

$

In Stock, Qty 20+

0

6

Husqvarna 539112078

BLADE, 14 5/8"

$22.99

$

In Stock, Qty 20+

0

38

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$8.49

$

In Stock, Qty 20+

0

25

Husqvarna 539104864

WASHER 7/16 FLAT ZD
(Superseded to 596437601)

$3.99

$

In Stock, Qty 20+

0

54

Husqvarna 539108461

BOLT 1/4-20 X 1/2 HWST

$3.99

$

In Stock, Qty 16

0

50

Husqvarna 575224301

BELT GAURD
(Superseded to 531165901)

$5.99

$

In Stock, Qty 20+

0

29

Husqvarna 539990923

RHSNB 3/8-16X1-3/4

$3.49

$

In Stock, Qty 11

0

15

Husqvarna 539112413

CONFINEMENT.PLATE.42".BLACK

$35.99

$

In Stock, only 1 left!

0

8

Husqvarna 532176066

NOSE ROLLER 48"

$14.99

$

In Stock, Qty 20+

0

7

Husqvarna 539107522

BLADE BOLT ASSY-7/16" TB REPL
(Superseded to 532193003)

$9.49

$

In Stock, Qty 20+

0

17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

55

Husqvarna 539115574

EYE BOLT 5/16 X 3.50
(Superseded to 596240801)

$4.99

$

In Stock, only 1 left!

0

26

Husqvarna 532178515

WASHER

$7.49

$

In Stock, Qty 20+

0

27

Husqvarna 532196104

PULLEY.IDLER.MWR.STATI.LH

$47.99

$

In Stock, Qty 20+

0

53

Husqvarna 532415598

PORT.WASHOUT

$8.49

$

In Stock, Qty 20+

0

33

Husqvarna 539119124

7/16-14 HEX NUT W/NYL RING ZD
(Superseded to 595901901)

$3.99

$

In Stock, Qty 8

0

14

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE
(Superseded to 593824001)

$4.99

$

In Stock, Qty 9

0

24

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

16

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$2.49

$

In Stock, Qty 20+

0

20

Husqvarna 539108271

HCS 3/8-16 X 3-1/2 GR5 ZD

$4.99

$

In Stock, only 1 left!

0

30

Husqvarna 532177968

PULLEY.IDLER.FLAT

$33.99

$

In Stock, Qty 20+

0

32

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.99

$

In Stock, Qty 20+

0

46

Husqvarna 574845601

BELT, 42" FAB DECK

$101.99

$

In Stock, Qty 17

0

18

Husqvarna 575224501

BUSHING, IDLER

$35.99

$

Usually ships in 3-10 days

0
