YTH 22V46 - Husqvarna 46" Yard Tractor (Original) MOWER DECK / CUTTING DECK Parts Diagram

46" Yard Tractor

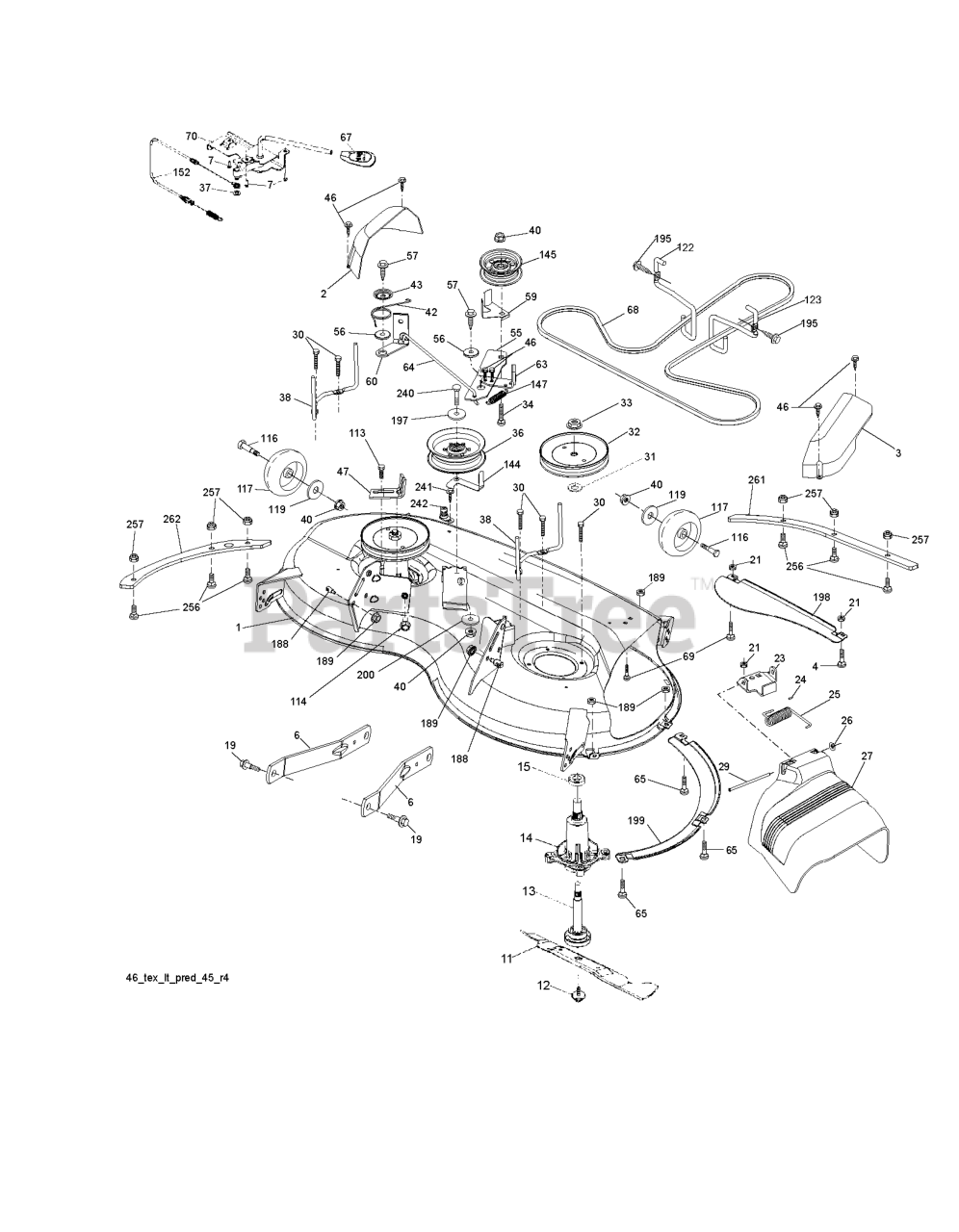

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

32

Husqvarna 532197473

PULLEY.MANDREL.5.438.PD
(Superseded to 532195945)

$14.99

$

In Stock, Qty 20+

0

114

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

Note: For 96043010100, 289630, 96043010101

$5.99

$

In Stock, Qty 19

0

119

Husqvarna 596134901

GSPH

$3.99

$

In Stock, Qty 20+

0

144

Husqvarna 532199204

KEEPER.BELT.MOWER
(Superseded to 531169801)

$5.99

$

In Stock, Qty 20+

0

21

Husqvarna 596040501

Hardware

$3.99

$

In Stock, Qty 20+

0

1

Husqvarna 532442693

DECK.SVC.46"405050X668
(Superseded to 591111601)

Note: For 96043021300

$

$

Not available

145

Husqvarna 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$33.99

$

In Stock, Qty 20+

0

34

Husqvarna 596136101

GSPW Bolts

$3.99

$

In Stock, Qty 11

0

38

Husqvarna 589676102

KEEPER.BLT.PNT.MNDRL.PULL.6.25
(Superseded to 589676103)

$8.49

$

In Stock, Qty 20+

0

242

Husqvarna 532415598

PORT.WASHOUT

$8.49

$

In Stock, Qty 20+

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$3.99

$

In Stock, Qty 20+

0

257

Husqvarna 586668901

NUT HEX_LRG FLG_1_4-20_LOCK

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 596565301

WASHER PLAIN WASHER 3/8 X 0.08

$3.99

$

In Stock, Qty 20+

0

1

Husqvarna 586352301

KIT SVC DECK WELDMENT
(Superseded to 591111601)

Note: For 96045006100, 96045006200, 96043025700, 96043027100, 96045006101, 96045006102, , 96043021300

$

$

Not available

Husqvarna 532416405

COUPLING.QUICK CONNECT

Note: NOT SHOWN

$9.99

$

In Stock, Qty 20+

0

200

Husqvarna 532413524

WASHER.13/32 X 1 X 1/2.11GUARD
(Superseded to 596135501)

$5.99

$

In Stock, only 2 left!

0

147

Husqvarna 532401872

SPRING RETURN

$5.99

$

In Stock, Qty 20+

0

14

Husqvarna 587819701

KIT.MANDREL.NONGREASE.TALL

$71.99

$

In Stock, Qty 20+

0

113

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$5.99

$

In Stock, Qty 19

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

Note: For all EXCEPT 96045006100, 96045006200, 96043025700, 96043027100

$7.49

$

In Stock, Qty 20+

0

3

Husqvarna 532405506

COVER.MANDREL.RH.46"

$26.99

$

In Stock, only 2 left!

0

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

Note: For 96043010100, 289630, 96043010101, 96043016100, 96043016200, 96045004100, 96045004200

$5.99

$

In Stock, Qty 20+

0

40

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

1

Husqvarna 532408486

RP DECK.WELDMENT.46"(2GA.WHL)
(Superseded to 591111601)

Note: For 96043018500, 96045004500, 96045004100, 96043018100, 96043016200, 96043018101, 96043010100, 96043010101, 96043016100, 289630

$

$

Not available

38

Husqvarna 532432520

KEEPER.BELT.MANDREL.PULLEY
(Superseded to 589676103)

Note: For all EXCEPT 96043016100, 96045006100, 96045006200, 96043025700, 96043027100

$8.49

$

In Stock, Qty 20+

0

240

Husqvarna 874520636

BOLT-HEX EAK
(Superseded to 596564404)

$3.99

$

In Stock, Qty 17

0

195

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 13

0

117

Husqvarna 589527301

WHEEL.GAUGE.RALLY

$9.99

$

In Stock, Qty 20+

0

67

Husqvarna 532403012

HANDLE.CLUTCH.CABLE.LT

$8.49

$

In Stock, Qty 12

0

15

Husqvarna 585323901

BEARING.MANDREL.TOP.EXTENDED
(Superseded to 532110485)

$17.99

$

In Stock, Qty 20+

0

116

Husqvarna 596434404

Bolts

$2.49

$

In Stock, Qty 20+

0

152

Husqvarna 532435110

CABLE.CLUTCH.CABLE.W/SPRING

Note: For 96043010100, 289630, 96043010101

$41.99

$

In Stock, Qty 20+

0

64

Husqvarna 532405138

LINKAGE BRAKE
(Superseded to 532405139)

$21.99

$

In Stock, Qty 8

0

23

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$9.99

$

In Stock, Qty 20+

0

12

Husqvarna 584309301

SCREW.SEMS.7/16-20X1.HEX.HEAD
(Superseded to 532193003)

$9.49

$

In Stock, Qty 20+

0

60

Husqvarna 532199471

ARM BRAKE MOWER RH 38"
(Superseded to 532400132)

Note: LH

$17.99

$

In Stock, Qty 20+

0

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

Note: For all EXCEPT 96045006100, 96045006200, 96043025700, 96043027100

$2.49

$

In Stock, Qty 20+

0

152

Husqvarna 584243501

CABLE.MECHANICAL.CLUTCH

Note: For all EXCEPT 96043010100, 289630, 96043010101

$39.99

$

In Stock, Qty 20+

0

34

Husqvarna 872110612

BOLT.3/8-16X1.50
(Superseded to 596136101)

Note: For all EXCEPT 96045006100, 96045006200, 96043025700, 96043027100

$3.99

$

In Stock, Qty 11

0

19

Husqvarna 532196539

BOLT.SHOULDER

$1.49

$

In Stock, Qty 20+

0

15

Husqvarna 532110485

BEARING

Note: For 96043010100, 289630, 96043010101, 96043016100, 96043016200, 96045004100, 96045004200

$17.99

$

In Stock, Qty 20+

0

30

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$3.99

$

In Stock, Qty 20+

0

262

Husqvarna 589482005

PLATE.REINF.DECK.46".SIDE.BLK

Note: For 96043021300, 96045006100, 96045006200, 96043025700, 96043027100, 96045006102, 96045006101

$23.99

$

In Stock, only 1 left!

0

69

Husqvarna 596136401

Bolts

$3.99

$

In Stock, Qty 20+

0

43

Husqvarna 532197256

SRPING.TORSION.RETAINE

$5.99

$

In Stock, Qty 17

0

29

Husqvarna 595297001

Rods

$7.49

$

In Stock, Qty 20+

0

--

Husqvarna 586059001

DECK ASM.SVC.46B.HP.CC.GWB.

Note: For 96045006100, 96045006200, 96043025700, 96043027100, 96045006101.96045006102, 96043021300, 96045006101

$

$

Not available

70

Husqvarna 532406563

CLUTCH.ASM.CABLE.HUSQ.TEX

Note: For 96043010100, 289630, 96043010101

$

$

Not available

11

Husqvarna 532405380

BLADE.MOWER.46".HI.LIFT

$

$

Not available

1

Husqvarna 532444379

DECK.SVC 46" 441616X498 GREY
(Superseded to 591111601)

Note: For 96045004200, 96045004101, 96045004800

$

$

Not available

241

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$3.99

$

In Stock, Qty 19

0

70

Husqvarna 532199972

CLUTCH.ASM.MANUAL.YT.PREDATORQ

Note: For all EXCEPT 96043010100, 289630, 96043010101

$62.99

$

In Stock, Qty 11

0

63

Husqvarna 532199477

ARM BRAKE MOWER
(Superseded to 532199478)

$23.99

$

In Stock, Qty 20+

0

68

Husqvarna 532405143

V-BELT
(Superseded to 584453101)

$59.99

$

In Stock, Qty 20+

0

42

Husqvarna 532198410

SPRING.TORSION.BRAKE

$5.99

$

In Stock, Qty 20+

0

12

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

Note: For 96043010100, 289630, 96043010101, 96043016100, 96043016200, 96045004100, 96045004200

$9.49

$

In Stock, Qty 20+

0

122

Husqvarna 532197258

KEEPER BELT ENGINE LH
(Superseded to 531169501)

Note: LH

$7.49

$

In Stock, Qty 20+

0

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

Note: For all EXCEPT 96045006100, 96045006200, 96043025700, 96043027100

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 596030501

SCREW HEXAGON HEAD SCREW 5/16-

Note: For 289630, 96043010100, 96043010101, 96043016100, 96043016200, 96043018100, 96043018101, 96043018500, 96043021300, 96043025700, 9603027100, 96045004100, 96045004101, 96045004200, 96045004500, 96045004800, 96045006100, 96045006200, 96045006101, 96045006102

$4.99

$

In Stock, Qty 20+

0

57

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

189

Husqvarna 596135701

GSPW Nuts

$3.99

$

In Stock, Qty 20+

0

188

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE
(Superseded to 593824001)

Note: For all EXCEPT 96045006100, 96045006200, 96043025700, 96043027100

$4.99

$

In Stock, Qty 9

0

256

Husqvarna 539109800

RHSNB, 1/4-20 X 1, GR5
(Superseded to 592807801)

Note: For 96043021300

$3.99

$

In Stock, only 3 left!

0

14

Husqvarna 532187281

RP.HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$71.99

$

In Stock, Qty 20+

0

188

Husqvarna 593824001

STUD.W/"D"ANTI-ROTATION

$4.99

$

In Stock, Qty 9

0

4

Husqvarna 596136401

Bolts

Note: For 96043010100, 289630, 96043010101

$3.99

$

In Stock, Qty 20+

0

55

Husqvarna 532197249

IDLER.ARM
(Superseded to 531169401)

$7.49

$

In Stock, Qty 20+

0

37

Husqvarna 819131316

WASHER
(Superseded to 596565301)

Note: For all EXCEPT 96045006100, 96045006200, 96043025700, 96043027100

$3.99

$

In Stock, Qty 20+

0

256

Husqvarna 596238401

BOLT CUP HEAD SQUARE NECK BOLT

Note: For 96045006100, 96045006200, 96043025700, 96043027100, 96045006101, 96045006102, 96043021300

$3.99

$

In Stock, only 4 left!

0

56

Husqvarna 532199092

SPACER.RETAINER

$8.49

$

In Stock, Qty 20+

0

13

Husqvarna 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

Note: For 96043010100, 289630, 96043010101, 96043016100, 96043016200, 96045004100, 96045004200

$71.99

$

In Stock, Qty 20+

0

--

Husqvarna 532439672

DECK.ASM SVC.46"HP.C.2GW.WP498

Note: For 96045004500, 96045004100

$

$

Not available

33

Husqvarna 596134801

Nuts

$2.49

$

In Stock, Qty 20+

0

65

Husqvarna 596039401

BOLT ROUND HEAD SQUARE NECK BO

$2.49

$

In Stock, Qty 20+

0

6

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R
(Superseded to 529846401)

$21.99

$

In Stock, Qty 20+

0

198

Husqvarna 532403149

BAFFLE CENTER FRONT
(Superseded to 531170601)

$14.99

$

In Stock, only 1 left!

0

--

Husqvarna 532431823

DECK.SVC.46"HP.C.2GW.WP.TX.418
(Superseded to 532439672)

Note: For 96045004200, 96045004101, 96043018500, 96043018100, 96043016200, 96043018101, 96043010100, 96043010101, 96043016100, 289630

$

$

Not available

261

Husqvarna 589481805

PLATE.REINF.DECK.46".FRONT.BLK

Note: For 96043021300, 96045006100, 96045006200, 96043025700, 96043027100, 96045006102, 96045006101

$23.99

$

In Stock, Qty 7

0

13

Husqvarna 587256501

SHAFT ASM.MNDRL.N/GREASEABLE
(Superseded to 587819701)

$71.99

$

In Stock, Qty 20+

0

7

Husqvarna 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

Note: For all EXCEPT 96045006100, 96045006200, 96043025700, 96043027100

$3.99

$

In Stock, Qty 13

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

123

Husqvarna 532197259

KEEPER BELT RH
(Superseded to 531169701)

Note: RH

$8.49

$

In Stock, Qty 20+

0

2

Husqvarna 532405507

COVER.MANDREL.LH.46"

$27.99

$

In Stock, only 4 left!

0

47

Husqvarna 532197250

BRKT.CLUTCH.CABLE

$5.99

$

In Stock, Qty 17

0

199

Husqvarna 532403150

BAFFLE FRONT RH
(Superseded to 531170701)

Note: RH

$15.99

$

In Stock, Qty 8

0

25

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$11.99

$

In Stock, Qty 20+

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

4

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

Note: For all EXCEPT 96043010100, 289630, 96043010101, 96045006100, 96045006200, 96043025700, 96043027100

$4.99

$

In Stock, Qty 20+

0

59

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

Note: 94

$5.99

$

In Stock, Qty 20+

0

116

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

Note: For all EXCEPT 96045006100, 96045006200, 96043025700, 96043027100

$2.49

$

In Stock, Qty 20+

0

197

Husqvarna 596133201

Washers

$7.49

$

In Stock, Qty 15

0

257

Husqvarna 873900400

NUT T
(Superseded to 586668901)

Note: For 96045006101, 96045006102

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 532405357

SHIELD.DEFLECTOR.MOWER.46"BLAC

$65.99

$

In Stock, Qty 20+

0

36

Husqvarna 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$43.99

$

In Stock, Qty 20+

0

197

Husqvarna 596134901

GSPH

Note: For all EXCEPT 96045006100, 96045006200, 96043025700, 96043027100

$3.99

$

In Stock, Qty 20+

0
