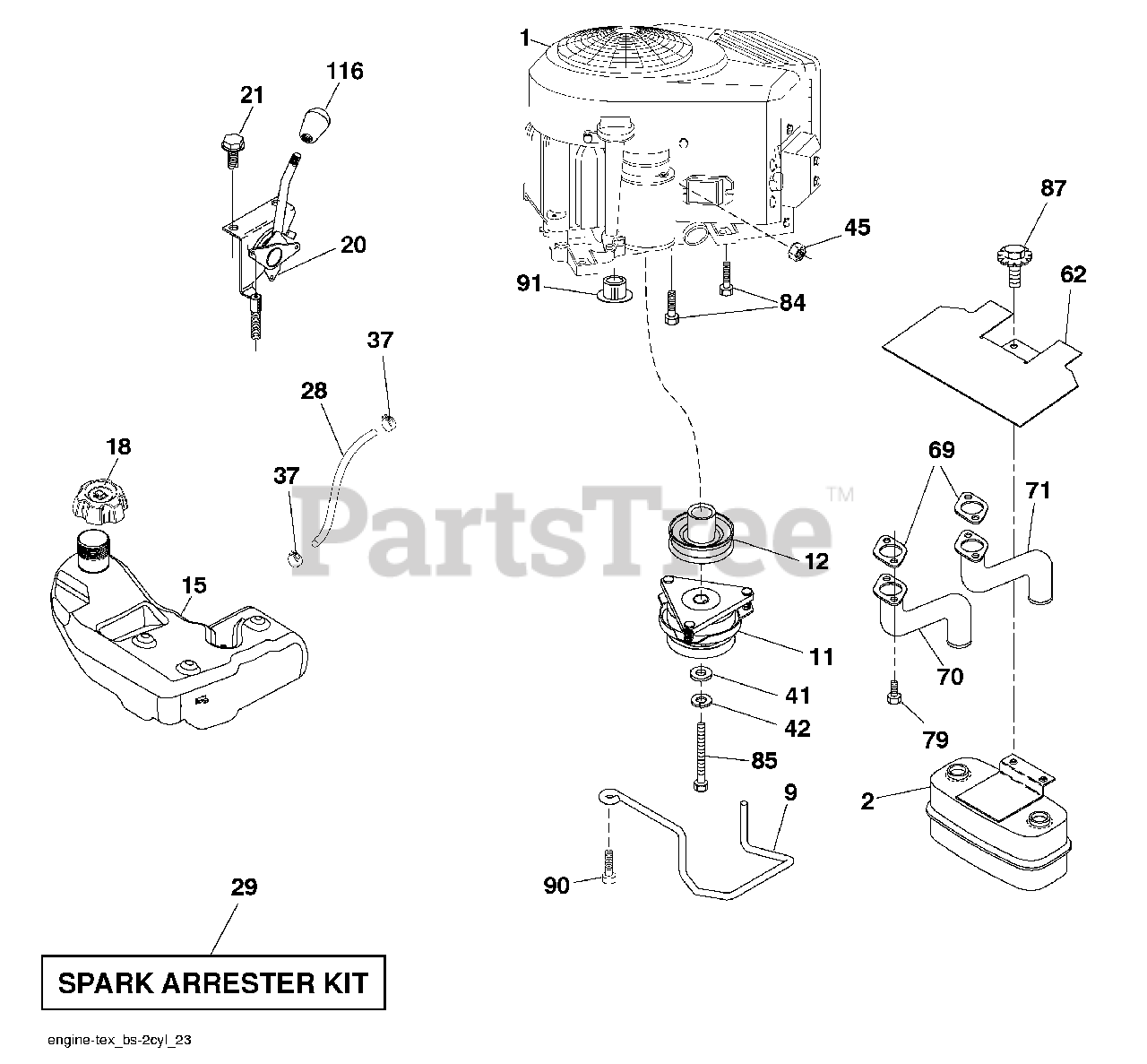

YTH 22V46 XLS (960430103-01) - Husqvarna 46" Yard Tractor (2010-02) Engine Parts Diagram

46" Yard Tractor

Engine Parts Diagram

  • Title

1

Engine Briggs & Stratton Model No. 40H777-1421-B1

$

$

Not available

2

Husqvarna 532149723

Muffler

$74.99

$

In Stock, Qty 5

0

9

Husqvarna 532194320

Keeper Belt Engine
(Superseded to 584908001)

$

$

Not available

11

Husqvarna 532400008

Clutch
(Superseded to 532414336)

$399.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532405097

Pulley Engine

$100.99

$

In Stock, only 1 left!

0

15

Husqvarna 532400021

Tank Fuel
(Superseded to 532442448)

$206.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532430217

Cap Asm Fuel
(Superseded to 584248702)

$12.99

$

In Stock, only 1 left!

0

20

Husqvarna 532424340

Control Throttle/Choke
(Superseded to 586219601)

$80.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532416358

Screw #10 X .750 Bos Thread

$

$

Not available

28

Husqvarna 532401135

Fuel Line
(Superseded to 587044864)

$18.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532137180

Spark Arrester Kit

$182.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

Clamp Hose

$7.49

$

In Stock, Qty 16

0

41

Husqvarna 532126197

Washer 1-1/2 Od X 15/32 Id X .250

$8.99

$

In Stock, Qty 19

0

42

Husqvarna 810040700

Washer Lock 7/16
(Superseded to 539990247)

$

$

Not available

45

Husqvarna 873510400

Nut Keps Hex 1/4-20 Unc
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

62

Husqvarna 532434017

Heat Shield

$15.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532165391

Gasket

$4.99

$

In Stock, Qty 20+

0

70

Husqvarna 532159955

Exhaust Tube Lh
(Superseded to 581881101)

$44.99

$

In Stock, only 4 left!

0

71

Husqvarna 532160589

Exhaust Tube Rh
(Superseded to 581881001)

$31.99

$

In Stock, only 3 left!

0

79

Husqvarna 532183906

Screw Socket Head 5/16-18 X1

$6.49

$

Usually ships in 3-10 days

0

84

Husqvarna 817060620

Screw 3/8-16 X 1-1/4

$7.49

$

In Stock, Qty 20+

0

85

Husqvarna 532173937

Bolt Hex 7/16-20 X 4 X Gr. 5-1.5 Thr
(Superseded to 501606501)

$4.99

$

In Stock, Qty 8

0

87

Husqvarna 537171877

Bolt 5/16-18 Unc X 3/4 W/Sems
(Superseded to 532171877)

$7.49

$

In Stock, only 3 left!

0

90

Husqvarna 817000616

Screw 3/8-16 X 1

$7.49

$

In Stock, Qty 13

0

91

Husqvarna 532187495

Bushing

$6.49

$

In Stock, only 1 left!

0

116

Husqvarna 532424659

Knob Soft Touch
(Superseded to 539132624)

$7.49

$

In Stock, Qty 12

0
