YTH 22V46 XLS (960430112-00) - Husqvarna 46" Yard Tractor (2010-10) MOWER DECK / CUTTING DECK Parts Diagram

46" Yard Tractor

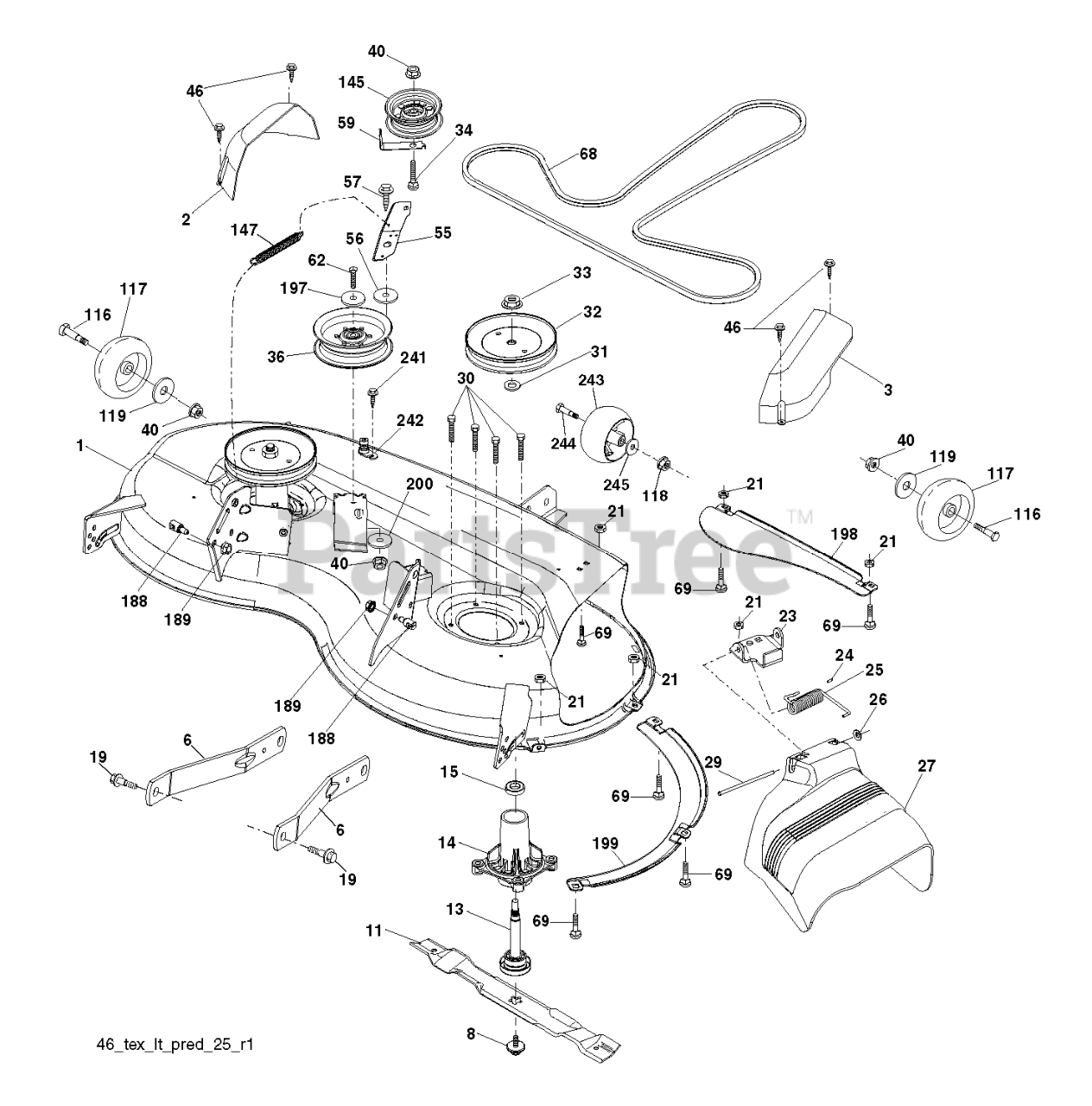

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

36

Husqvarna 532197379

PULLEY.IDLER.2006
(Superseded to 532196106)

$43.99

$

In Stock, Qty 20+

0

245

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 532405357

SHIELD.DEFLECTOR.MOWER.46"BLAC

$62.99

$

In Stock, Qty 6

0

69

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.49

$

In Stock, Qty 20+

0

34

Husqvarna 872110612

BOLT.3/8-16X1.50
(Superseded to 596136101)

$3.49

$

In Stock, only 2 left!

0

24

Husqvarna 532105304

CAP-SLEEVE LT

$3.49

$

In Stock, Qty 20+

0

118

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

200

Husqvarna 532413524

WASHER.13/32 X 1 X 1/2.11GUARD
(Superseded to 596135501)

$5.99

$

In Stock, Qty 18

0

26

Husqvarna 532110452

NUT PUSH M

$3.49

$

In Stock, Qty 20+

0

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$2.49

$

In Stock, Qty 20+

0

199

Husqvarna 532403150

BAFFLE FRONT RH
(Superseded to 531170701)

$14.99

$

In Stock, Qty 20+

0

1

Husqvarna 532442405

DECK.WLDMT.WTUBES.46.4GWB.ORNG
(Superseded to 532418227)

$512.99

$

Usually ships in 3-10 days

0

117

Husqvarna 532174873

RP WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

In Stock, Qty 20+

0

6

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R
(Superseded to 529846401)

$20.99

$

In Stock, only 1 left!

0

57

Husqvarna 817000616

SCREW 3/8-16X1

$6.99

$

In Stock, Qty 11

0

25

Husqvarna 532197026

SPRING.TORSION.DEFLECT

$11.99

$

In Stock, Qty 20+

0

32

Husqvarna 532197473

PULLEY.MANDREL.5.438.PD
(Superseded to 532195945)

$14.99

$

In Stock, Qty 20+

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 8

0

245

Husqvarna 532416405

COUPLING.QUICK CONNECT

$9.49

$

In Stock, Qty 12

0

3

Husqvarna 532405506

COVER.MANDREL.RH.46"

Note: LH

$47.99

$

In Stock, Qty 6

0

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$6.99

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$1.49

$

In Stock, Qty 20+

0

243

Husqvarna 532188606

WHEEL.GAGE.HALF.SPOKED
(Superseded to 589527401)

$11.99

$

In Stock, Qty 20+

0

59

Husqvarna 532141043

GUARD, BELT
(Superseded to 531165901)

$5.99

$

In Stock, Qty 18

0

116

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$2.49

$

In Stock, Qty 20+

0

11

Husqvarna 532405380

BLADE.MOWER.46".HI.LIFT

$

$

Not available

244

Husqvarna 532124842

BOLT M
(Superseded to 596434402)

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$9.49

$

In Stock, Qty 20+

0

19

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

119

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

In Stock, Qty 20+

0

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$5.99

$

In Stock, Qty 20+

0

56

Husqvarna 532199092

SPACER.RETAINER

$7.99

$

In Stock, Qty 20+

0

188

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

14

Husqvarna 532187281

RP.HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$62.99

$

In Stock, Qty 20+

0

189

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

62

Husqvarna 874520636

BOLT-HEX EAK
(Superseded to 596564404)

$3.49

$

In Stock, only 2 left!

0

242

Husqvarna 532415598

PORT.WASHOUT

$7.99

$

In Stock, Qty 6

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

40

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 532405507

COVER.MANDREL.LH.46"

Note: RH

$26.99

$

In Stock, only 2 left!

0

147

Husqvarna 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$13.99

$

In Stock, Qty 20+

0

145

Husqvarna 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$28.99

$

In Stock, Qty 20+

0

245

Husqvarna 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

Note: "INCL HOUSING, SHAFT ASSEMBLY, BEARING ONLY"

$62.99

$

In Stock, Qty 20+

0

241

Husqvarna 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, only 3 left!

0

13

Husqvarna 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$62.99

$

In Stock, Qty 20+

0

15

Husqvarna 532110485

BEARING

$14.99

$

In Stock, Qty 20+

0

198

Husqvarna 532403149

BAFFLE CENTER FRONT

$13.99

$

In Stock, Qty 20+

0

197

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0

68

Husqvarna 532405143

V-BELT
(Superseded to 584453101)

$62.99

$

In Stock, Qty 20+

0

55

Husqvarna 532197249

IDLER.ARM
(Superseded to 531169401)

$6.99

$

In Stock, Qty 20+

0

245

Husqvarna 532418226

DECK.ASM SVC 46"HP E 5GW WP668

$910.99

$

Usually ships in 3-10 days

0
