YTH 2348 (960450005-00) - Husqvarna 48" Yard Tractor (2006-11) Chassis Parts Diagram

48" Yard Tractor

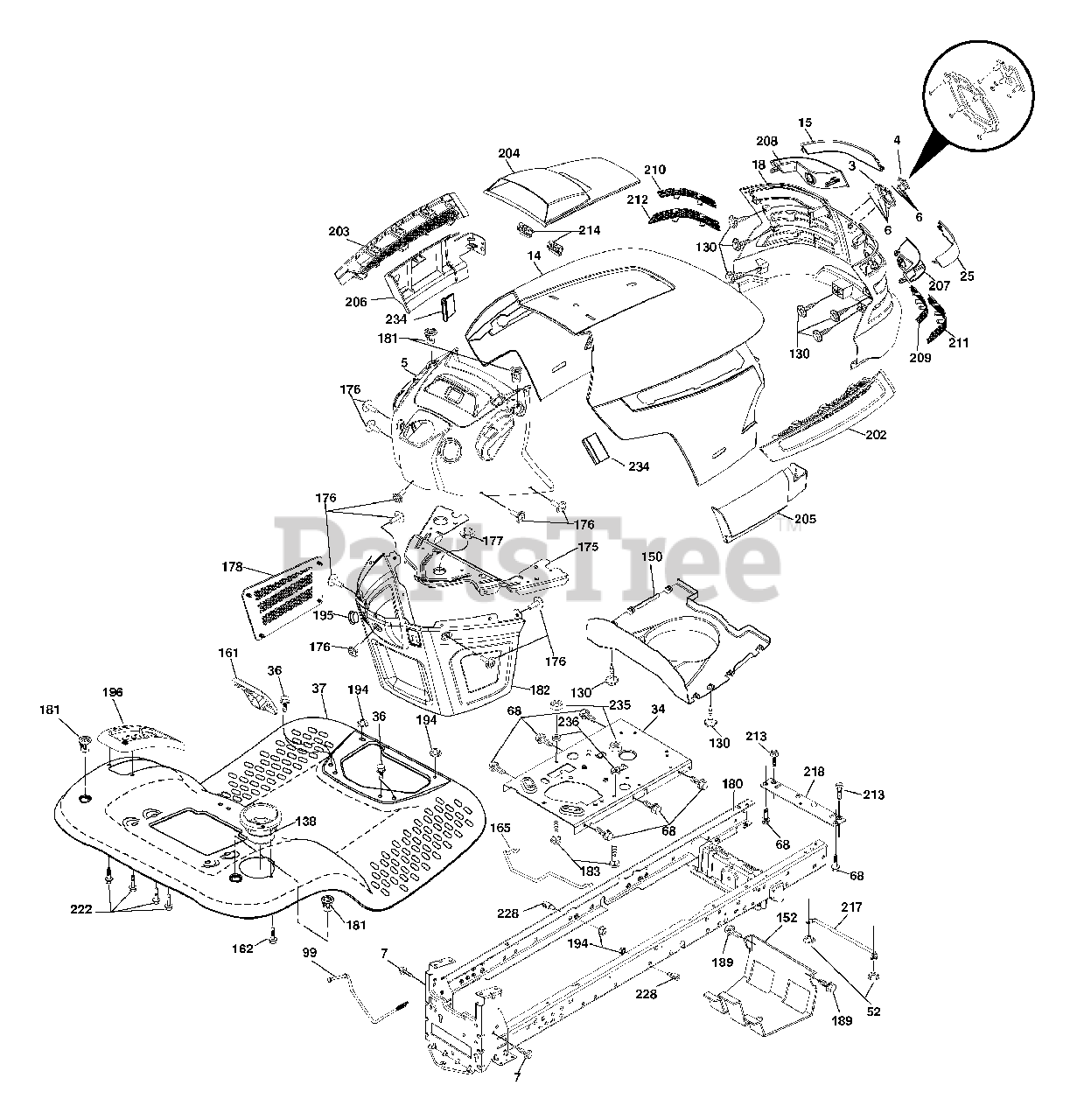

Chassis Parts Diagram

  • Title

3

Husqvarna 532198509

Logo Crown
(Superseded to 532404472)

$14.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532199348

Logo
(Superseded to 532404472)

$14.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532408701

Dash

$

$

Not available

6

Husqvarna 532404883

Clip

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532196539

Bolt Shoulder

$1.49

$

In Stock, Qty 20+

0

14

Husqvarna 532401824

Hood
(Superseded to 532442396)

$

$

Not available

15

Husqvarna 532198907

Lens LH

$31.99

$

In Stock, only 3 left!

0

18

Husqvarna 532404821

Grille Asm.
(Superseded to 532408607)

$

$

Not available

25

Husqvarna 532198906

Lens RH

$39.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532196125

Plate Engine
(Superseded to 580910801)

$74.99

$

Usually ships in 3-10 days

0

36

Husqvarna 817060512

Screw 5/16-18 x 3/4
(Superseded to 532171877)

$5.99

$

In Stock, only 2 left!

0

37

Husqvarna 532404940

Fender
(Superseded to 532418673)

$341.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

Nut Lock 5/16-18
(Superseded to 873690500)

$

$

Not available

68

Husqvarna 817490508

Screw 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

99

Husqvarna 532405903

Rod Asm Bypass
(Superseded to 532415742)

$9.49

$

In Stock, Qty 5

0

130

Husqvarna 532191611

Screw 10 x 3/4 Single Lead-Hex
(Superseded to 532416358)

$

$

Not available

138

Husqvarna 532402954

Cupholder
(Superseded to 532439747)

$5.99

$

In Stock, only 1 left!

0

150

Husqvarna 532198512

Air Duct

$39.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532199535

Shield Browning
(Superseded to 531169901)

$28.99

$

In Stock, Qty 13

0

161

Husqvarna 532409627

Window Fuel
(Superseded to 532439781)

$7.99

$

In Stock, only 4 left!

0

162

Husqvarna 532142432

Screw
(Superseded to 596134101)

$3.49

$

In Stock, Qty 19

0

165

Husqvarna 532196826

Support Tank Rear

$31.99

$

Usually ships in 3-10 days

0

175

Husqvarna 532196304

Crossmember
(Superseded to 590607702)

$39.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532400776

Screw 10-24 x 5/8

$4.99

$

In Stock, only 2 left!

0

177

Husqvarna 532195227

Bushing Steering

$2.49

$

In Stock, Qty 16

0

178

Husqvarna 532199782

Cargo Net Asm.

$39.99

$

Usually ships in 3-10 days

0

180

Husqvarna 532195457

Chassis
(Superseded to 579841501)

$319.99

$

Usually ships in 3-10 days

0

181

Husqvarna 532403025

Bushing Mtg. Fender Crgo
(Superseded to 532439746)

$

$

Not available

182

Husqvarna 532194787

Dash Lower
(Superseded to 532406859)

$113.99

$

In Stock, only 4 left!

0

183

Husqvarna 874780520

Bolt Fin Hex 5/16-18 unc x 1-1/4
(Superseded to 595305701)

$4.99

$

In Stock, Qty 14

0

189

Husqvarna 817000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$5.99

$

In Stock, Qty 11

0

194

Husqvarna 873900500

Nut Lock Hex Flange 5/16-18
(Superseded to 583612701)

$

$

Not available

195

Husqvarna 532404137

Plug Hole Dash Lower

$3.99

$

Usually ships in 3-10 days

0

196

Husqvarna 532402843

Console Asm. Deck Lift
(Superseded to 532414579)

$28.99

$

In Stock, only 2 left!

0

202

Husqvarna 532403048

Vent Side Hood RH

$

$

Not available

203

Husqvarna 532403076

Vent Side Hood LH

$

$

Not available

204

Husqvarna 532198904

Vent Top Hood
(Superseded to 532416615)

$

$

Not available

205

Husqvarna 532401709

Skirt Hood Side RH

$

$

Not available

206

Husqvarna 532401711

Skirt Hood Side LH

$

$

Not available

207

Husqvarna 532197198

Bezel RH

$26.99

$

Usually ships in 3-10 days

0

208

Husqvarna 532197199

Bezel LH

$

$

Not available

209

Husqvarna 532199130

Insert Hex Top RH

$6.99

$

Usually ships in 3-10 days

0

210

Husqvarna 532199131

Insert Hex Top Lh

$

$

Not available

211

Husqvarna 532199132

Insert Hex Bottom RH

$

$

Not available

212

Husqvarna 532199133

Insert Hex Bottom LH

$3.49

$

In Stock, only 2 left!

0

213

Husqvarna 874760512

Bolt 5/16-18 UNC x 3/4
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

214

Husqvarna 532199145

Clip Retainer Tinner

$3.49

$

In Stock, only 2 left!

0

217

Husqvarna 532156524

Rod Pivot
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

218

Husqvarna 532196395

X-Piece Hood Stop

$7.99

$

In Stock, only 2 left!

0

222

Husqvarna 532137729

Screw Thdrol 1/4-20 x 5/8

$2.49

$

In Stock, Qty 20+

0

228

Husqvarna 532195161

Stud Fastner

$

$

Not available

234

Husqvarna 532404742

Bumper Hood

$6.99

$

Usually ships in 3-10 days

0

235

Husqvarna 532406129

Spacer Fender
(Superseded to 596564201)

$5.99

$

Usually ships in 3-10 days

0

236

Husqvarna 873930500

Nut Lock 5/16-18 UNC

$3.49

$

In Stock, Qty 5

0
