YTH 2348 (960450005-00) - Husqvarna 48" Yard Tractor (2006-11) Drive Parts Diagram

48" Yard Tractor

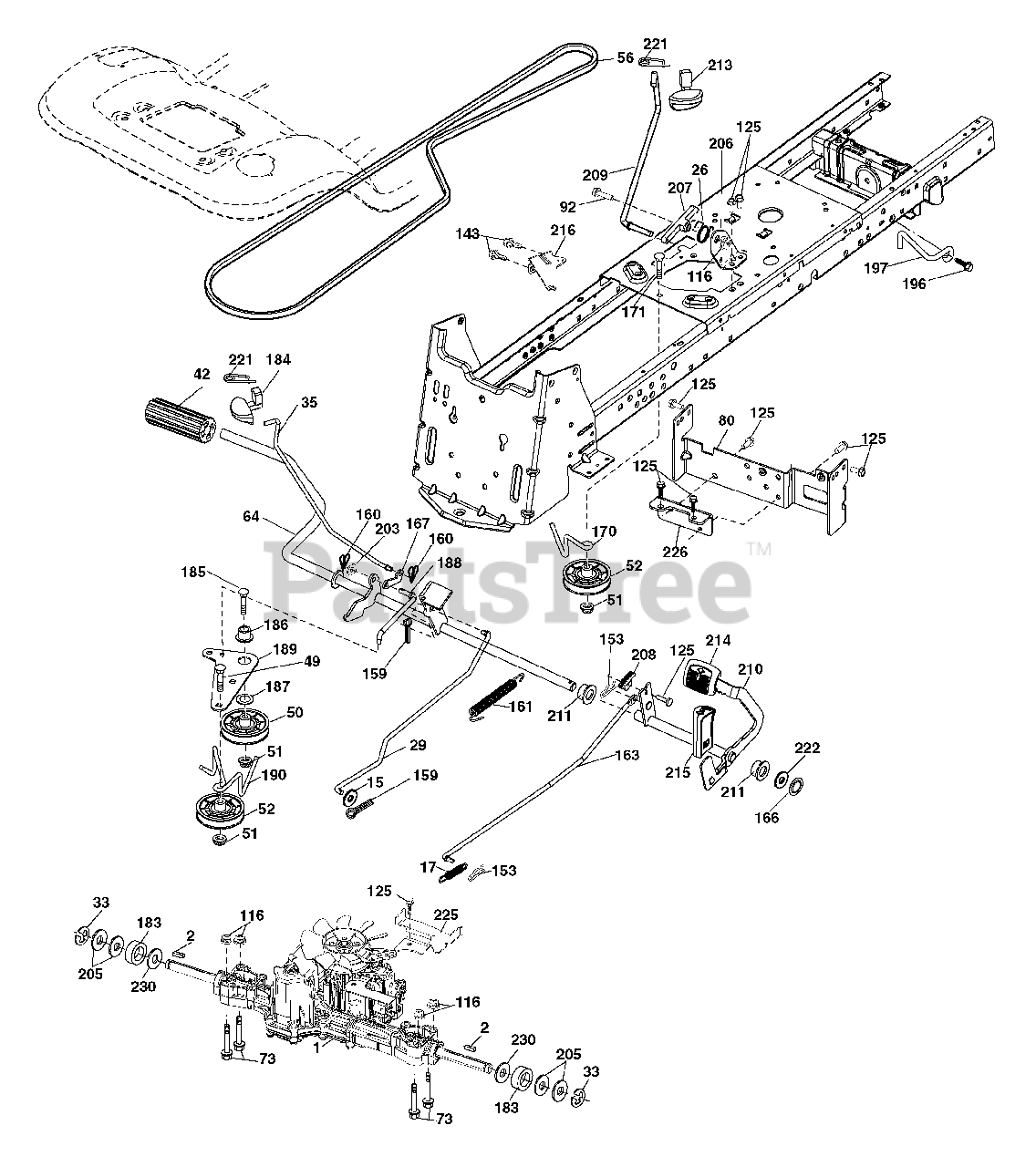

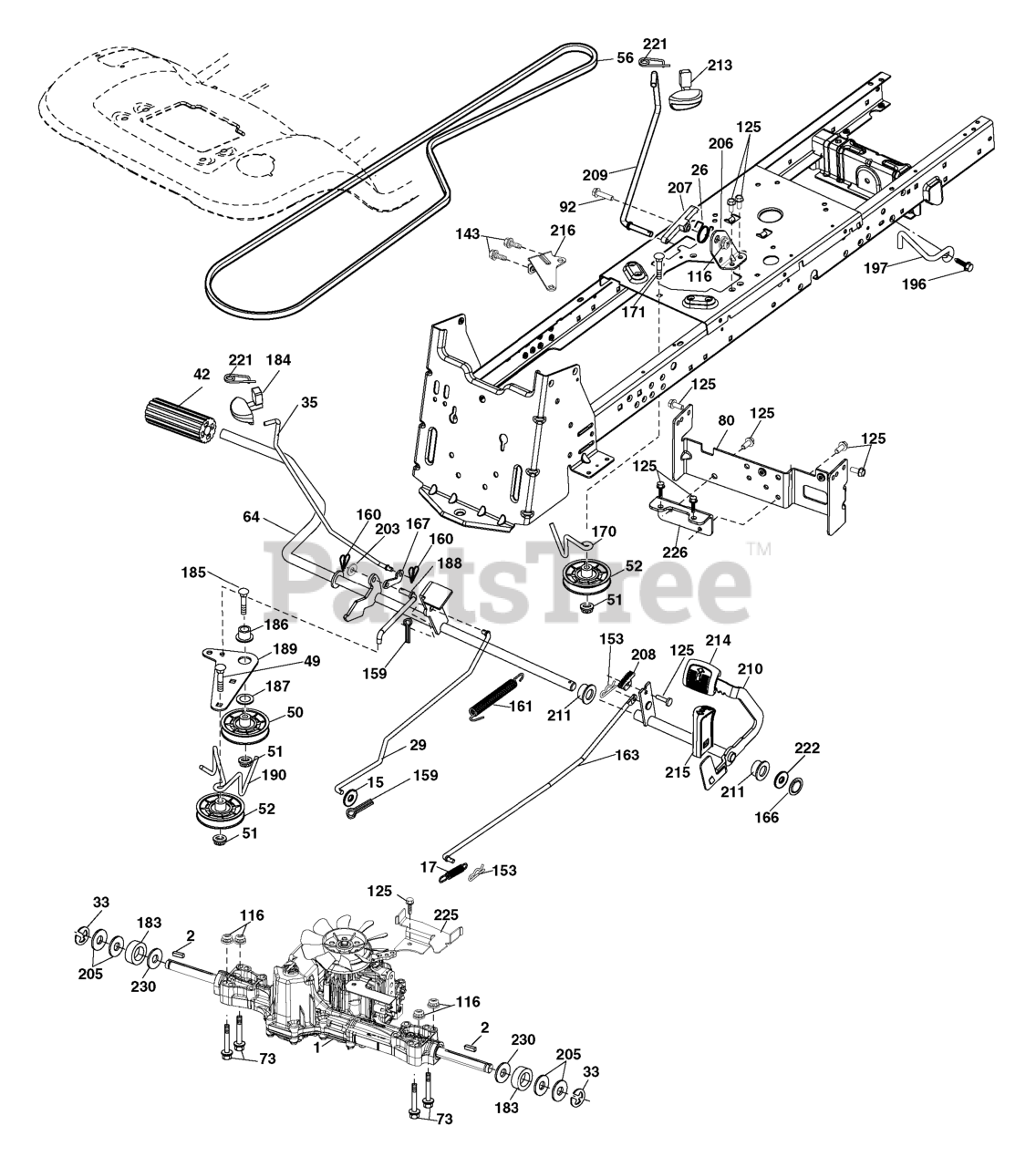

Drive Parts Diagram

  • Title

1

Husqvarna 532405384

Transaxle, TUFFTORQ K46
(Superseded to 532426120)

Note: (Internal parts not available)

$848.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532123583

Key

$4.99

$

In Stock, Qty 10

0

15

Husqvarna 819131316

Washer 13/32 x 13/16 x 16 Ga.
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 532401072

Spring, Brake

$8.99

$

In Stock, Qty 11

0

26

Husqvarna 532199679

Spring Return Cruise

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532403806

Rod, Brake

$31.99

$

In Stock, only 1 left!

0

33

Husqvarna 812000001

Ring E

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 532199591

Rod, Brake, Park
(Superseded to 532435486)

$7.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532124872

Cover, Foot Pedal
(Superseded to 532008883)

$6.49

$

In Stock, Qty 17

0

49

Husqvarna 872110614

Bolt

$6.49

$

Usually ships in 3-10 days

0

50

Husqvarna 532194327

Pulley Idler Flat

$13.99

$

In Stock, Qty 20+

0

51

Husqvarna 873900600

Lock Nut 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

52

Husqvarna 532194326

Idler V-Groove 910 Offset

$12.99

$

In Stock, Qty 20+

0

56

Husqvarna 532130969

V-Belt, Drive

$31.99

$

In Stock, Qty 20+

0

64

Husqvarna 532197865

Shaft Asm. Pedal Brake Control

$53.99

$

In Stock, only 1 left!

0

73

Husqvarna 874490544

Bolt Hex Flghd 5/16-18 Gr. 5

$4.99

$

Usually ships in 3-10 days

0

80

Husqvarna 532404483

Bracket Strap Torque

$

$

Not available

92

Husqvarna 874760520

Bolt Fin Hex 5/16-18 unc x 1.25
(Superseded to 874780520)

$4.99

$

Usually ships in 3-10 days

0

116

Husqvarna 873900500

Nut Lock Hex Flange 5/16-18
(Superseded to 583612701)

$6.49

$

Usually ships in 3-10 days

0

125

Husqvarna 817000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

143

Husqvarna 817490508

Screw 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

153

Husqvarna 532124788

Retainer Spring
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

159

Husqvarna 876020412

Pin Cotter 1/8 x 3/4
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

160

Husqvarna 532169484

Retainer Clip

$

$

Not available

161

Husqvarna 532195403

Spring, Return, Clutch
(Superseded to 532105709)

$10.99

$

In Stock, Qty 20+

0

163

Husqvarna 532401034

Rod Pedal Control
(Superseded to 532448275)

$

$

Not available

166

Husqvarna 532197290

Nut Push
(Superseded to 532429164)

$6.49

$

In Stock, Qty 6

0

167

Husqvarna 532405257

Latch Brake Parking

$4.99

$

Usually ships in 3-10 days

0

170

Husqvarna 532194322

Keeper Belt Centerspan

$7.49

$

In Stock, Qty 11

0

171

Husqvarna 872110616

Bolt RDHD SQNK 3/8-16UNC x 2

$6.49

$

Usually ships in 3-10 days

0

183

Husqvarna 532137057

Spacer Split

$7.49

$

In Stock, Qty 10

0

184

Husqvarna 532403118

Handle Parking Brake
(Superseded to 532196439)

$12.99

$

In Stock, Qty 20+

0

185

Husqvarna 872110620

Bolt Rdhd Sqnk 3/8-16 x 2-1/2

$4.99

$

Usually ships in 3-10 days

0

186

Husqvarna 532194321

Spacer Retainer

$7.49

$

Usually ships in 3-10 days

0

187

Husqvarna 819133210

Washer
(Superseded to 532413524)

$

$

Not available

188

Husqvarna 532194323

Link Clutch Ground Drive
(Superseded to 582217001)

$4.99

$

In Stock, Qty 13

0

189

Husqvarna 532194317

Bellcrank Ground Drive

$

$

Not available

190

Husqvarna 532194318

Keeper Bellcrank Ground Drive

$8.99

$

In Stock, Qty 19

0

196

Husqvarna 817000616

Screw 3/8-16 x 1

$7.49

$

In Stock, Qty 7

0

197

Husqvarna 532195804

Bracket Clutch Anti-Rotation

$8.99

$

In Stock, Qty 13

0

203

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

205

Husqvarna 532121748

Washer

$3.49

$

In Stock, Qty 20+

0

206

Husqvarna 532197867

Bracket Mount Latch Cruise
(Superseded to 532448596)

$4.99

$

In Stock, only 1 left!

0

207

Husqvarna 532197868

Latch Control Cruise
(Superseded to 587031401)

$

$

Not available

208

Husqvarna 532197869

Gear Sector Control Cruise

$6.49

$

Usually ships in 3-10 days

0

209

Husqvarna 532199592

Rod Control Cruise

$10.99

$

Usually ships in 3-10 days

0

210

Husqvarna 532400980

Rocker Asm. Pedal Control

$34.99

$

In Stock, only 1 left!

0

211

Husqvarna 532120183

Bearing Nylon

$6.49

$

In Stock, Qty 8

0

213

Husqvarna 532403119

Knob Control Cruise

$12.99

$

Usually ships in 3-10 days

0

214

Husqvarna 532401722

Pedal Forward
(Superseded to 532421263)

$8.99

$

In Stock, Qty 5

0

215

Husqvarna 532401723

Pedal Reverse

$7.49

$

Usually ships in 3-10 days

0

216

Husqvarna 532196131

Bracket Pulley Idler

$7.49

$

In Stock, only 2 left!

0

221

Husqvarna 532403187

Retainer Spring Clip Handle

$6.49

$

In Stock, Qty 10

0

222

Husqvarna 879212010

Washer 21/32 x 1-1/4 x 10 Ga.

$6.49

$

In Stock, only 4 left!

0

225

Husqvarna 532403319

Keeper Belt Trans.

$3.49

$

In Stock, only 4 left!

0

226

Husqvarna 532401564

Bracket Mount Touque

$18.99

$

Usually ships in 3-10 days

0

230

Husqvarna 532188967

Washer Hardened

$4.99

$

In Stock, Qty 20+

0
