YTH 2348 (960450005-01) - Husqvarna 48" Yard Tractor (2008-02) Chassis / Frame Parts Diagram

48" Yard Tractor

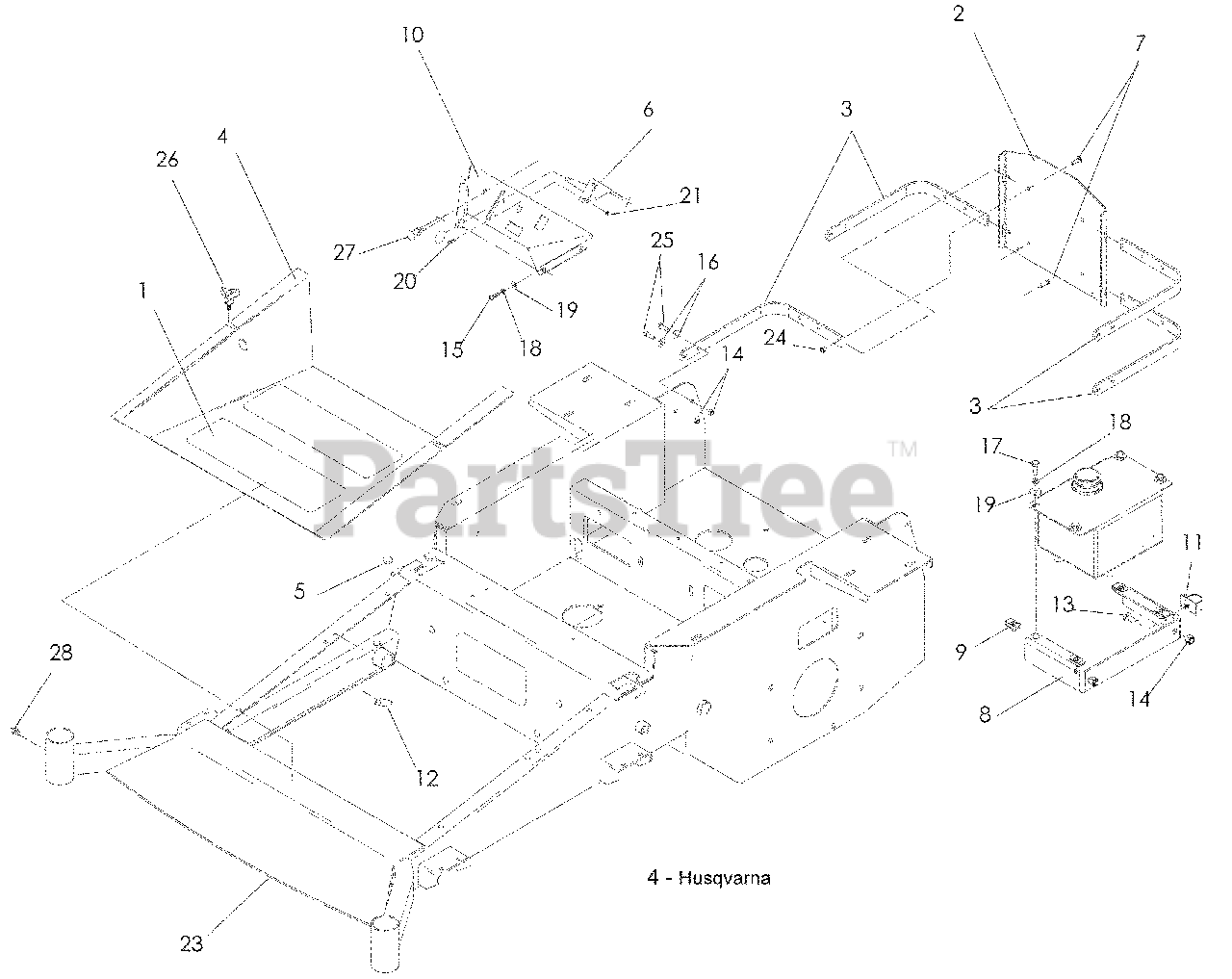

Chassis / Frame Parts Diagram

  • Title

1

Husqvarna 539977778

FLOOR PAN PAD

$4.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539110976

XP GUARD, BLACK

$

$

Not available

3

Husqvarna 539106961

STRAP, BLACK

$

$

Not available

4

Husqvarna 539104721

FOOT PLATE

$

$

Not available

5

Husqvarna 539102587

BUMPER

$5.99

$

In Stock, Qty 9

0

6

Husqvarna 539102732

CABLE, THROTTLE
(Superseded to 597524002)

$56.99

$

In Stock, only 3 left!

0

7

Husqvarna 539990316

RHSNB 5/16-18 x ¾
(Superseded to 595901601)

$3.49

$

In Stock, Qty 20+

0

8

Husqvarna 539110814

TANK MOUNT

$

$

Not available

9

Husqvarna 539110813

U TYPE RETAINER

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 539110953

CONSOLE

$

$

Not available

11

Husqvarna 539110815

CLIP, PUSH MOUNT

$3.49

$

In Stock, only 1 left!

0

12

Husqvarna 539104763

U CLIP 5/16-18

$4.99

$

In Stock, Qty 7

0

13

Husqvarna 539976934

HCS 5/16-18 x ¾
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

14

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 539990362

TFS ¼-20 x 5/8

$4.99

$

In Stock, Qty 12

0

16

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

17

Husqvarna 539990580

HCS ¼-20 x ¾
(Superseded to 596230901)

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 539990052

LOCKWASHER ¼
(Superseded to 596564801)

$3.49

$

Usually ships in 3-10 days

0

19

Husqvarna 539990598

WASHER ¼ FLAT
(Superseded to 597338501)

$17.99

$

In Stock, Qty 20+

0

20

Husqvarna 539990411

HCS 10-24 x ½

$

$

Not available

21

Husqvarna 539976977

NUT 10-24 NYLOC
(Superseded to 596040801)

$3.49

$

In Stock, Qty 20+

0

22

Husqvarna 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.49

$

In Stock, only 3 left!

0

23

Husqvarna 539132278

FRAME

$

$

Not available

24

Husqvarna 539990184

NUT 5/16-18 CENTERLOCK

$

$

Not available

25

Husqvarna 539990209

HCS 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 12

0

27

Husqvarna 539130207

CHOKE CONTROL
(Superseded to 539102733)

$62.99

$

In Stock, only 3 left!

0

28

Husqvarna 539101474

ZERK
(Superseded to 596623501)

$3.49

$

In Stock, Qty 10

0
