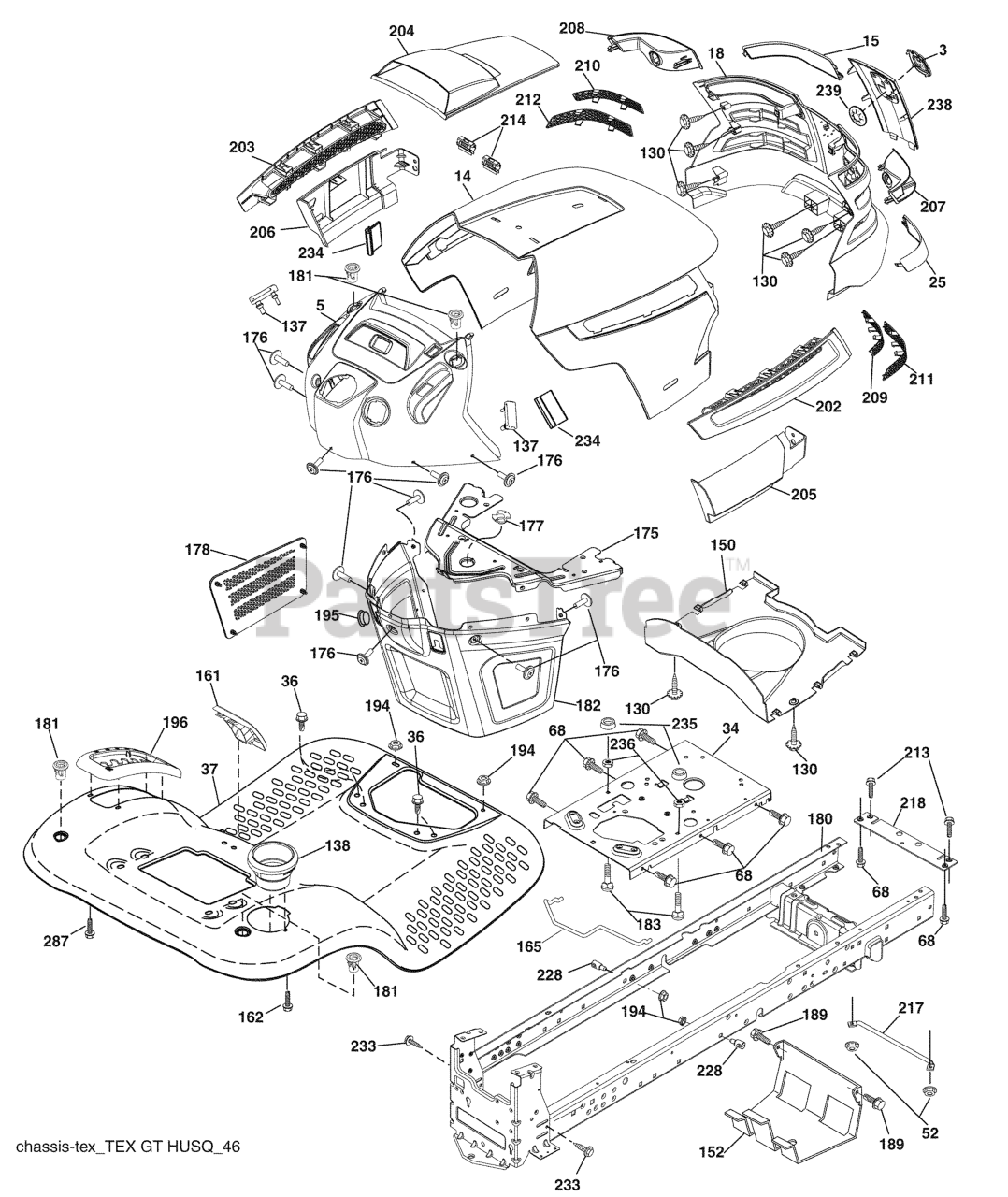

YTH 2348 (960450005-03) - Husqvarna 48" Yard Tractor (2009-02) Chassis Parts Diagram

48" Yard Tractor

Chassis Parts Diagram

  • Title

3

Husqvarna 532405012

RP LOGO
(Superseded to 532430771)

$5.99

$

In Stock, Qty 13

0

5

Husqvarna 532408701

DASH.ASM.HUSQ.GT.E.RECT.W/CK

$

$

Not available

14

Husqvarna 532411046

HOOD
(Superseded to 532442396)

$

$

Not available

15

Husqvarna 532198907

LENS.LH.TEX.GT.HUSQ.CL

$31.99

$

In Stock, only 2 left!

0

18

Husqvarna 532408607

GRILL.ASM.HUSQ.TG/CRD.W/TRIM

$

$

Not available

25

Husqvarna 532198906

LENS.RH.TEX.GT.HUSQ.CL

$41.99

$

In Stock, only 1 left!

0

34

Husqvarna 532196125

PLATE.ENGINE.WELDED.CHASSIS
(Superseded to 580910801)

$77.99

$

Usually ships in 3-10 days

0

36

Husqvarna 817060512

SCREW 5/16"
(Superseded to 532171877)

$5.99

$

In Stock, Qty 10

0

37

Husqvarna 532418673

FENDER.TLT.W/CPH.W/FW.ORANGE

$263.99

$

Usually ships in 3-10 days

0

52

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

68

Husqvarna 817490508

Screw 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

130

Husqvarna 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

$3.99

$

In Stock, Qty 13

0

137

Husqvarna 532407590

BUMPER DASH

$4.99

$

In Stock, only 2 left!

0

138

Husqvarna 532402954

CUPHOLDER.TL.TEX.418
(Superseded to 532439747)

$5.99

$

Usually ships in 3-10 days

0

150

Husqvarna 532198512

AIR.DUCT.HOOD.TEX.GT.HUSQ

$41.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532199535

SHIELD.BROWNING.W/TEX
(Superseded to 531169901)

$29.99

$

In Stock, Qty 8

0

161

Husqvarna 532409627

WINDOW FUEL
(Superseded to 532439781)

$8.49

$

In Stock, only 1 left!

0

162

Husqvarna 532142432

SCREW.HI-LO.CONSOLE
(Superseded to 596134101)

$3.99

$

In Stock, Qty 14

0

165

Husqvarna 532196826

SUPPORT.TANK.REAR.W/TEX

$33.99

$

Usually ships in 3-10 days

0

175

Husqvarna 532196304

PLATE.CROSSMEMBER.HUSQ
(Superseded to 590607702)

$41.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532400776

SCREW.#10-24X5/8.RN.QU

$4.99

$

Usually ships in 3-10 days

0

177

Husqvarna 532195227

BUSHING, STEERING

$2.49

$

In Stock, Qty 20+

0

178

Husqvarna 532199782

CARGO.ASM.NET.TXGT.W/C

$

$

Not available

180

Husqvarna 532195457

CHASSIS
(Superseded to 579841501)

$335.99

$

Usually ships in 3-10 days

0

181

Husqvarna 532403025

BUSHING.MNT.FEND.CRGO.
(Superseded to 532439746)

$

$

Not available

182

Husqvarna 532406859

DASH.LOWER.COMMON.12V.ADAPTOR

$131.99

$

In Stock, only 1 left!

0

183

Husqvarna 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 595305701)

$4.99

$

In Stock, only 2 left!

0

189

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

194

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

195

Husqvarna 532404137

PLUG.HOLE.DASH.LOWER.12V.BLK

$3.99

$

Usually ships in 3-10 days

0

196

Husqvarna 532414580

RP CONSOLE.ASM.DECKLFT.GR/RBT.
(Superseded to 532439647)

$

$

Not available

202

Husqvarna 532403048

VENT.SIDE.HOOD.HUSQ.RH.GREY

$

$

Not available

203

Husqvarna 532403076

VENT.SIDE.HOOD.HUSQ.LH.GRAY

$

$

Not available

204

Husqvarna 532416613

HOOD VENT
(Superseded to 532416615)

$

$

Not available

205

Husqvarna 532401709

SKIRT.HOOD.SIDE.HUSQ.RH.GREY

$

$

Not available

206

Husqvarna 532401711

SKIRT.HOOD.SIDE.HUSQ.LH.GREY

$

$

Not available

207

Husqvarna 532197198

BEZEL.RH.TEX.GT.HUSQ

$26.99

$

Usually ships in 3-10 days

0

208

Husqvarna 532197199

BEZEL.LH.TEX.GT.HUSQ

$

$

Not available

209

Husqvarna 532199130

INSERT.HEX.GRILL.HUSQ.GREY

$7.49

$

Usually ships in 3-10 days

0

210

Husqvarna 532199131

INSERT.HEX.GRILL.HUSQ.

$

$

Not available

211

Husqvarna 532199132

INSERT.HEX.GRILL.HUSQ.

$

$

Not available

212

Husqvarna 532199133

INSERT.HEX.GRILL.HUSQ.

$3.49

$

In Stock, only 2 left!

0

213

Husqvarna 874760512

BOLT
(Superseded to 539976934)

$4.99

$

In Stock, Qty 20+

0

214

Husqvarna 532199145

CLIP.RETAINER.TINNER.

$3.99

$

In Stock, Qty 10

0

217

Husqvarna 532409167

ROD.PIVOT.HOOD

$14.99

$

In Stock, only 2 left!

0

218

Husqvarna 532196395

X-PIECE.HOOD.STOP.NON/

$8.49

$

In Stock, only 1 left!

0

228

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE
(Superseded to 593824001)

$4.99

$

In Stock, Qty 9

0

233

Husqvarna 532196539

BOLT.SHOULDER

$1.49

$

In Stock, Qty 20+

0

234

Husqvarna 532404742

BUMPER.HOOD.TEX.HUSQVARNA

$7.49

$

Usually ships in 3-10 days

0

235

Husqvarna 532406129

SPACER FENDER
(Superseded to 596564201)

$5.99

$

Usually ships in 3-10 days

0

236

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$3.49

$

In Stock, only 4 left!

0

238

Husqvarna 532408606

TRIM.HUSQ.TG/CRD.SERVICE

$27.99

$

In Stock, only 2 left!

0

239

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

287

Husqvarna 817600406

SCREW 1/4X20

$3.99

$

In Stock, only 2 left!

0
