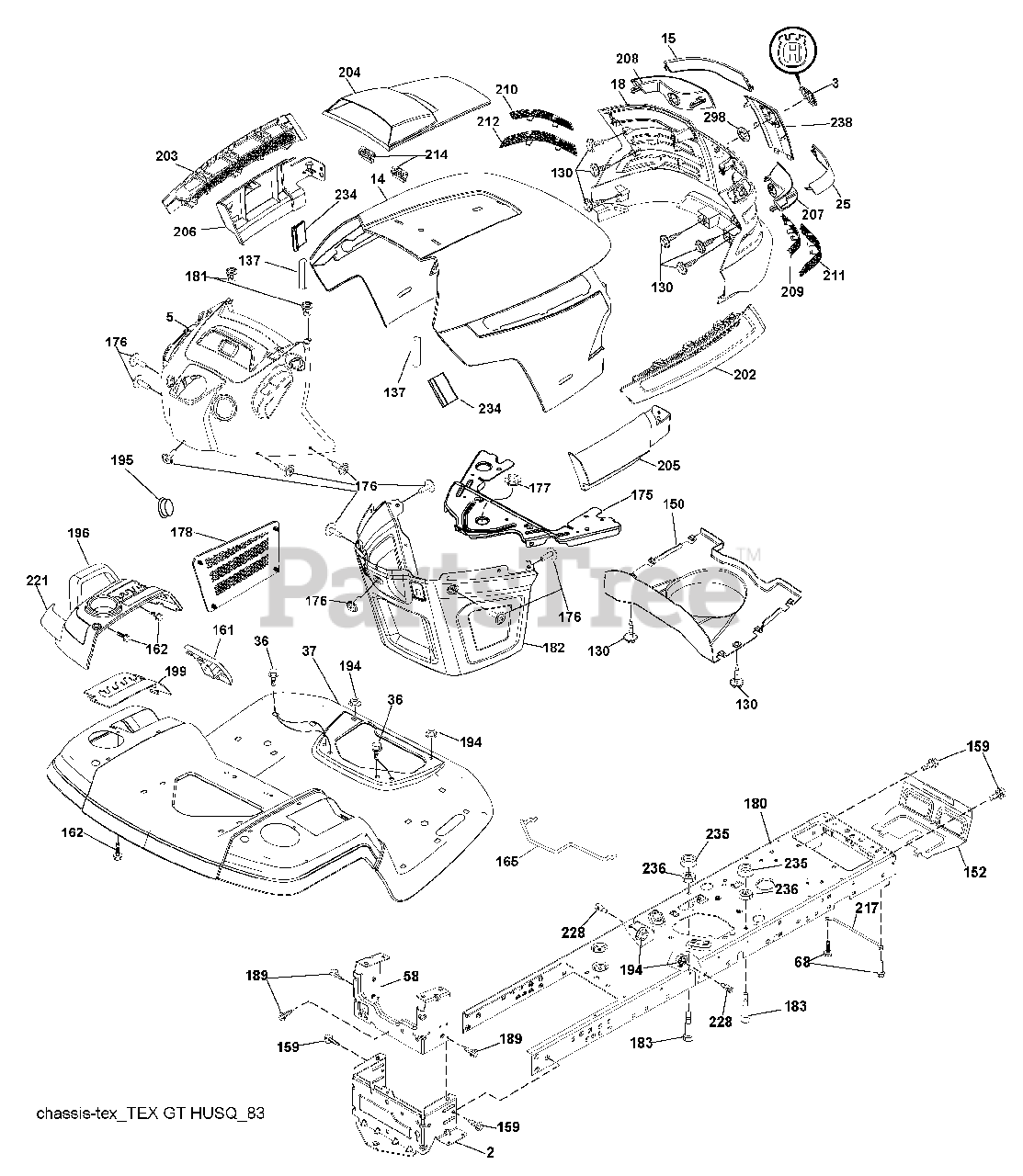

YTH 23V42 LS (960430088-00) - Husqvarna 42" Yard Tractor (2009-12) Chassis Parts Diagram

42" Yard Tractor

Chassis Parts Diagram

  • Title

2

Husqvarna 532412282

Drawbar Lower

$53.99

$

In Stock, only 3 left!

0

3

Husqvarna 532405012

Logo
(Superseded to 532430771)

$5.99

$

In Stock, only 2 left!

0

5

Husqvarna 532408699

Dash

$

$

Not available

14

Husqvarna 532411046

Hood
(Superseded to 532442396)

$

$

Not available

15

Husqvarna 532198907

Lens LH

$44.99

$

In Stock, only 3 left!

0

18

Husqvarna 532408607

Grille/Lens Asm.

$157.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532198906

Lens RH

$39.99

$

Usually ships in 3-10 days

0

36

Husqvarna 817060512

Screw 5/16-18 x 3/4
(Superseded to 817490508)

$

$

Not available

37

Husqvarna 532401825

Fender
(Superseded to 532441208)

$262.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532412281

Drawbar Upper 2pc Lrg Fender

$45.99

$

Usually ships in 3-10 days

0

68

Husqvarna 817490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

130

Husqvarna 532416358

Screw 10 x 0.750 BOS Thread

$

$

Not available

137

Husqvarna 532407590

Bumper Dash

$4.99

$

In Stock, Qty 8

0

150

Husqvarna 532198512

Air Duct

$39.99

$

Usually ships in 3-10 days

0

152

Husqvarna 532194329

Shield Browning

$22.99

$

Usually ships in 3-10 days

0

159

Husqvarna 817000612

Screw 3/8-16 x 3/4

$4.99

$

In Stock, Qty 20+

0

161

Husqvarna 532401826

Window Fuel

$9.49

$

In Stock, Qty 7

0

162

Husqvarna 532142432

Screw Hex Wsh Hi-Lo 1/4 x 1/2 unc

$

$

Not available

165

Husqvarna 532194330

Support Tank Rear

$22.99

$

Usually ships in 3-10 days

0

175

Husqvarna 532196304

Crossmember
(Superseded to 590607702)

$39.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532400776

Screw 10-24 x 5/8

$4.99

$

Usually ships in 3-10 days

0

177

Husqvarna 532195227

Bushing Steering

$2.49

$

In Stock, Qty 20+

0

178

Husqvarna 532199782

Cargo Net Asm.

$39.99

$

Usually ships in 3-10 days

0

180

Husqvarna 532194260

Chassis
(Superseded to 582033101)

$341.99

$

Usually ships in 3-10 days

0

181

Husqvarna 532403025

Bushing Mtg. Fender Crgo

$

$

Not available

182

Husqvarna 532406859

Dash Lower

$113.99

$

In Stock, only 4 left!

0

183

Husqvarna 874520520

Bolt 5/16-18 x 1-1/4

$

$

Not available

189

Husqvarna 817000512

Screw 5/16-18 x 3/4
(Superseded to 532428867)

$5.99

$

In Stock, Qty 19

0

194

Husqvarna 873900500

Nut Lock Hex Flange 5/16-18
(Superseded to 583612701)

$

$

Not available

196

Husqvarna 532417778

Console Asm Dck Lft
(Superseded to 532439674)

$102.99

$

In Stock, only 1 left!

0

199

Husqvarna 532198259

Plate Deck Lift

$26.99

$

In Stock, only 1 left!

0

202

Husqvarna 532403048

Vent Side Hood RH

$

$

Not available

203

Husqvarna 532403076

Vent Side Hood LH

$

$

Not available

204

Husqvarna 532416613

Vent Top Hood
(Superseded to 532416615)

$19.99

$

Usually ships in 3-10 days

0

205

Husqvarna 532401709

Skirt Hood Side RH

$

$

Not available

206

Husqvarna 532401711

Skirt Hood Side LH

$

$

Not available

207

Husqvarna 532197198

Bezel RH

$26.99

$

Usually ships in 3-10 days

0

208

Husqvarna 532197199

Bezel LH

$

$

Not available

209

Husqvarna 532199130

Insert Hex Top RH

$6.99

$

Usually ships in 3-10 days

0

210

Husqvarna 532199131

Insert Hex Top LH

$

$

Not available

211

Husqvarna 532199132

Insert Hex Bottom RH

$

$

Not available

212

Husqvarna 532199133

Insert Hex Bottom LH

$5.49

$

In Stock, only 2 left!

0

214

Husqvarna 532199145

Clip Retainer Tinner

$3.49

$

In Stock, only 2 left!

0

217

Husqvarna 532409167

Rod Pivot

$13.99

$

In Stock, only 2 left!

0

221

Husqvarna 532198909

Reflector LH

$20.99

$

In Stock, only 2 left!

0

228

Husqvarna 532195161

Stud Fastener

$

$

Not available

234

Husqvarna 532404742

Bumper Hood

$6.99

$

Usually ships in 3-10 days

0

236

Husqvarna 873930500

Nut Lock 5/16-18 unc

$7.49

$

In Stock, Qty 5

0

238

Husqvarna 532408606

Trim, Husq.

$26.99

$

In Stock, only 2 left!

0

298

Husqvarna 532110452

Nut, Push

$3.49

$

In Stock, Qty 20+

0

Husqvarna 532431882

Kit Guard Brush
(Superseded to 505568813)

$165.99

$

In Stock, only 2 left!

0
