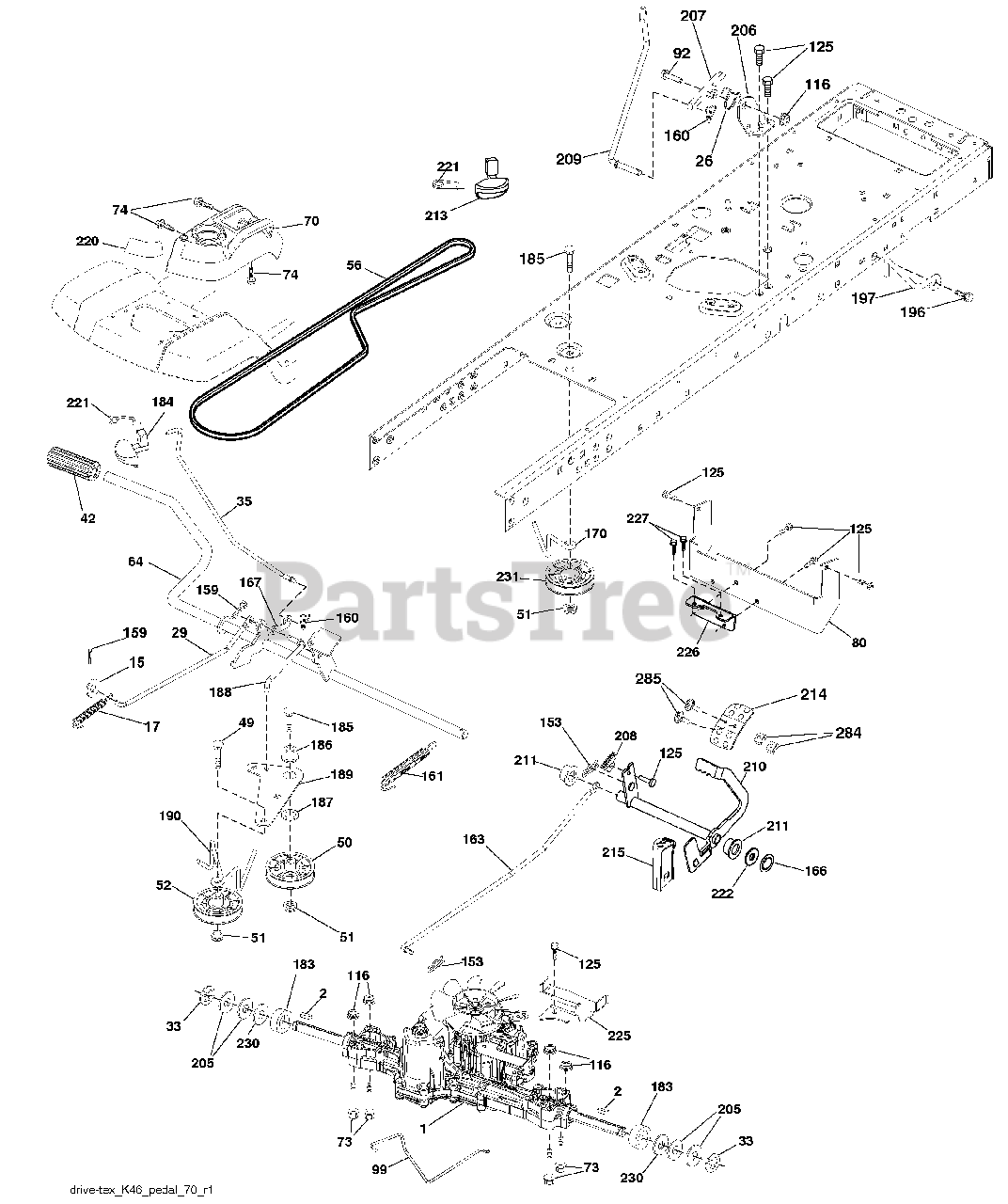

YTH 23V42 LS (960430088-01) - Husqvarna 42" Yard Tractor (2010-05) Drive Parts Diagram

42" Yard Tractor

Drive Parts Diagram

  • Title

1

Husqvarna 532123583

Transaxle, TUFFTORQ K46CR

$4.99

$

In Stock, only 2 left!

0

2

Husqvarna 819131316

Key
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 532413678

Washer 13/32 x 13/16 x 16 Ga.

$7.49

$

In Stock, Qty 12

0

17

Husqvarna 532199679

Spring, Brake

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532403806

Spring Return Cruise

$31.99

$

In Stock, only 1 left!

0

29

Husqvarna 812000001

Rod, Brake

$4.99

$

In Stock, Qty 16

0

33

Husqvarna 532199591

Ring E
(Superseded to 532435486)

$7.49

$

Usually ships in 3-10 days

0

35

Husqvarna 532124872

Rod, Brake, Park
(Superseded to 532008883)

$6.49

$

In Stock, Qty 14

0

42

Husqvarna 872110614

Cover, Foot Pedal

$6.49

$

Usually ships in 3-10 days

0

49

Husqvarna 532194327

Bolt

$13.99

$

In Stock, Qty 20+

0

50

Husqvarna 873900600

Pulley Idler Flat
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

51

Husqvarna 532194326

Lock Nut 3/8-16

$12.99

$

In Stock, Qty 20+

0

52

Husqvarna 532130969

Idler V-Groove 910" Offset

$31.99

$

In Stock, Qty 20+

0

56

Husqvarna 532197865

V-Belt, Drive

$53.99

$

In Stock, only 1 left!

0

64

Husqvarna 532400530

Shaft Asm. Pedal Brake Control
(Superseded to 532439661)

$120.99

$

Usually ships in 3-10 days

0

70

Husqvarna 874490540

Console Asm Pch

$4.99

$

Usually ships in 3-10 days

0

73

Husqvarna 532142432

Bolt Hex Flghd 5/16-18 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

74

Husqvarna 532410024

Screw Hex Wsh Hi-Lo 1/4 x 1/2
(Superseded to 532440619)

$24.99

$

Usually ships in 3-10 days

0

80

Husqvarna 874760520

Bracket Strap Torque
(Superseded to 874780520)

$4.99

$

Usually ships in 3-10 days

0

92

Husqvarna 532415742

Bolt Fin Hex 5/16-18 unc x 1.25

$10.99

$

In Stock, only 2 left!

0

99

Husqvarna 873900500

Rod Spring Bypass
(Superseded to 583612701)

$

$

Not available

116

Husqvarna 817000512

Nut Lock Hex Flange 5/16-18
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

125

Husqvarna 532124788

Screw 5/16-18 x 3/4
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

153

Husqvarna 876020412

Retainer Spring
(Superseded to 539990365)

$6.49

$

In Stock, Qty 20+

0

159

Husqvarna 532169484

Pin Cotter 1/8 x 3/4

$

$

Not available

160

Husqvarna 532105709

Retainer Clip

$10.99

$

In Stock, Qty 20+

0

161

Husqvarna 532401034

Spring, Return, Clutch
(Superseded to 532448275)

$

$

Not available

163

Husqvarna 532429164

Rod Pedal Control

$6.49

$

Usually ships in 3-10 days

0

166

Husqvarna 532405257

Nut Push

$4.99

$

Usually ships in 3-10 days

0

167

Husqvarna 532413430

Latch Brake Parking

$7.49

$

Usually ships in 3-10 days

0

170

Husqvarna 532137057

Keeper Belt Centerspan

$7.49

$

In Stock, Qty 10

0

183

Husqvarna 532403118

Spacer Split
(Superseded to 532196439)

$12.99

$

In Stock, Qty 20+

0

184

Husqvarna 872110622

Handle Parking Brake

$3.99

$

Usually ships in 3-10 days

0

185

Husqvarna 532194321

Bolt Rdhd Sqnk 3/8-16 x 2-1/2

$7.49

$

Usually ships in 3-10 days

0

186

Husqvarna 819133210

Spacer Retainer
(Superseded to 532413524)

$

$

Not available

187

Husqvarna 532194323

Washer
(Superseded to 582217001)

$4.99

$

In Stock, Qty 13

0

188

Husqvarna 532194317

Link Clutch Ground Drive

$

$

Not available

189

Husqvarna 532194318

Bellcrank Ground Drive

$8.99

$

In Stock, Qty 18

0

190

Husqvarna 817000616

Keeper Bellcrank Ground Drive

$7.49

$

In Stock, Qty 6

0

196

Husqvarna 532195804

Screw 3/8-16 x 1

$8.99

$

In Stock, Qty 13

0

197

Husqvarna 532121748

Bracket Clutch Anti-Rotation

$3.49

$

In Stock, Qty 20+

0

205

Husqvarna 532197867

Washer
(Superseded to 532448596)

$4.99

$

In Stock, only 1 left!

0

206

Husqvarna 532197868

Bracket Mount Latch Cruise
(Superseded to 587031401)

$

$

Not available

207

Husqvarna 532197869

Latch Control Cruise

$6.49

$

Usually ships in 3-10 days

0

208

Husqvarna 532199592

Gear Sector Control Cruise

$10.99

$

Usually ships in 3-10 days

0

209

Husqvarna 532197860

Rod Control Cruise

$30.99

$

In Stock, only 1 left!

0

210

Husqvarna 532120183

Rocker Asm. Pedal Control

$6.49

$

In Stock, Qty 6

0

211

Husqvarna 532403119

Bearing Nylon

$12.99

$

In Stock, only 1 left!

0

213

Husqvarna 532416863

Knob Control Cruise

$37.99

$

Usually ships in 3-10 days

0

214

Husqvarna 532401723

Pedal Forward Husq

$7.49

$

Usually ships in 3-10 days

0

215

Husqvarna 532198908

Pedal Reverse

$17.99

$

In Stock, only 1 left!

0

220

Husqvarna 532403187

Reflector RH

$6.49

$

In Stock, Qty 10

0

221

Husqvarna 879212010

Retainer Spring Clip Handle

$6.49

$

In Stock, only 3 left!

0

222

Husqvarna 532403319

Washer 21/32 x 1-1/4 x 10 Ga.

$3.49

$

In Stock, only 3 left!

0

225

Husqvarna 532401564

Keeper Belt Trans.

$18.99

$

Usually ships in 3-10 days

0

226

Husqvarna 817490512

Bracket Mount Torque
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

227

Husqvarna 532188967

Screw 5/16-18 x 3/4

$4.99

$

In Stock, Qty 19

0

230

Husqvarna 532407287

Washer Hardened

$18.99

$

In Stock, Qty 20+

0

231

Husqvarna 532417693

Idler V-Groove

$4.99

$

Usually ships in 3-10 days

0

284

Husqvarna 532417765

Nut U-CHNL 1/4-20 550DP .350 PNL
(Superseded to 874180412)

$4.99

$

In Stock, only 4 left!

0

285

Screw PHD 1/4-20 Box Drive

$

$

Not available
