YTH 23V48 (960450086-00) - Husqvarna 48" Yard Tractor (2010-01) Engine Parts Diagram

48" Yard Tractor

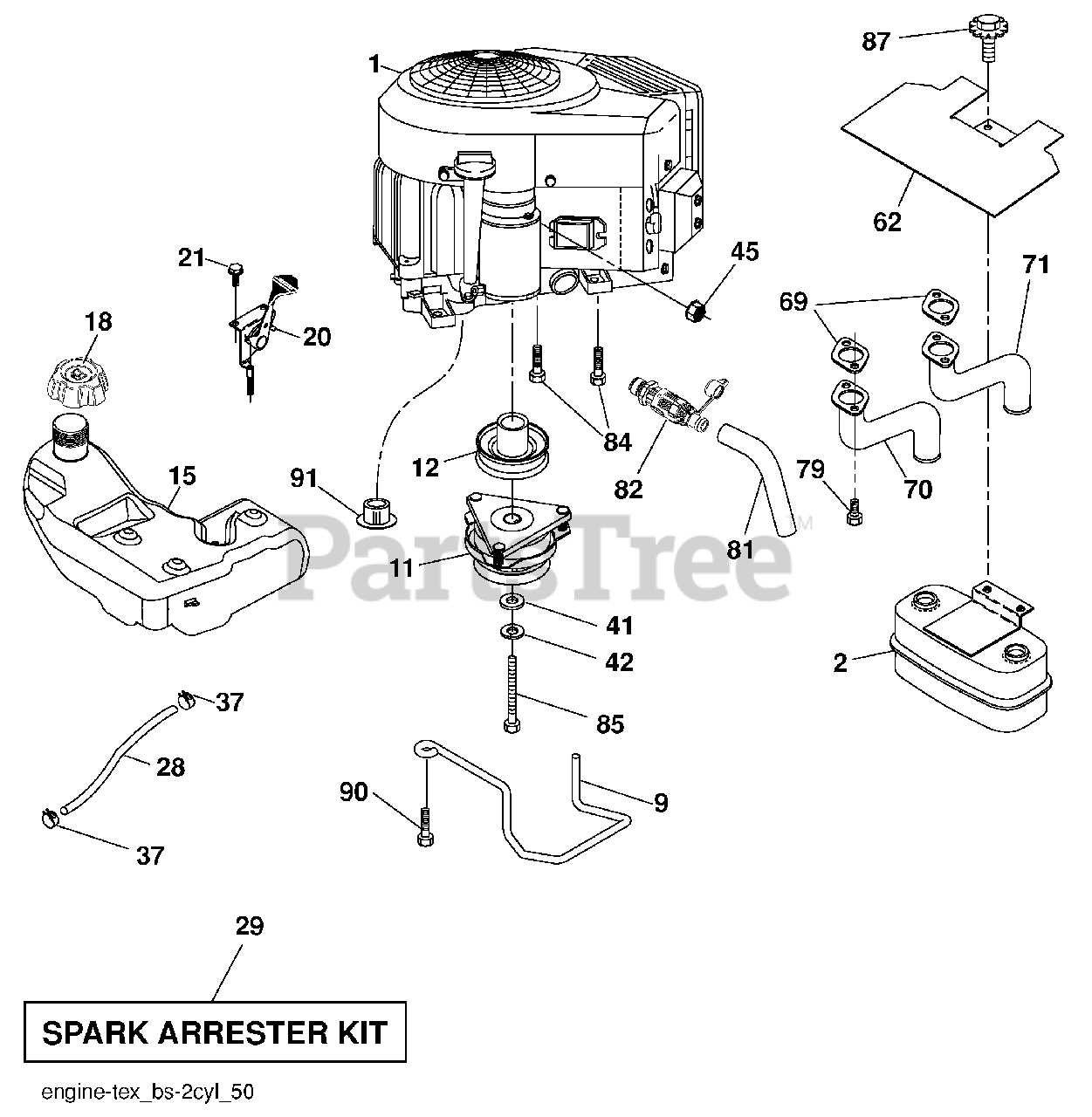

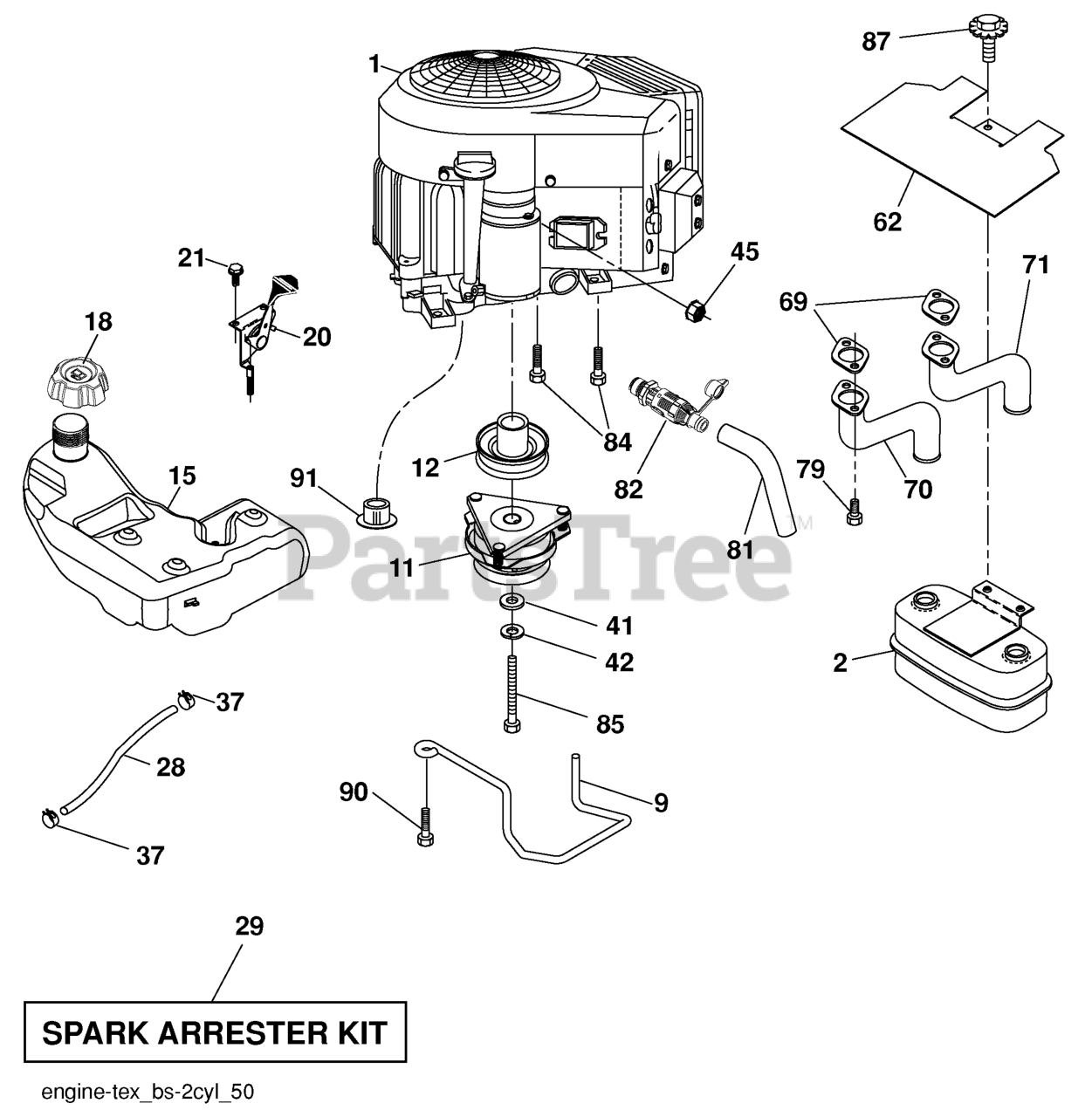

Engine Parts Diagram

  • Title

1

Husqvarna 532149723

Engine Briggs Model No. 445577-1187-B1

$74.99

$

In Stock, Qty 5

0

2

Husqvarna 532194320

Muffler
(Superseded to 584908001)

$

$

Not available

9

Husqvarna 532400008

Keeper Belt Engine
(Superseded to 532414336)

$399.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532405097

Clutch Electric

$100.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532400021

Pulley Engine
(Superseded to 532442448)

$206.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532194267

Tank Fuel
(Superseded to 584248702)

$12.99

$

In Stock, Qty 5

0

18

Husqvarna 532423502

Cap Asm

$31.99

$

In Stock, Qty 20+

0

20

Husqvarna 532416358

Control Throttle

$

$

Not available

21

Husqvarna 532401135

Screw #10 x 0.750 BOS Thread
(Superseded to 587044864)

$18.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532137180

Fuel Line

$182.99

$

In Stock, only 1 left!

0

29

Husqvarna 532123487

Spark Arrester Kit

$7.49

$

In Stock, Qty 16

0

37

Husqvarna 532126197

Clamp Hose

$8.99

$

In Stock, Qty 20+

0

41

Husqvarna 810040700

Washer 1-1/2 OD x 15/32 ID x .250
(Superseded to 539990247)

$

$

Not available

42

Husqvarna 873510400

Washer Lock 7/16
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 532146629

Nut Keps Hex 1/4-20 unc
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532165391

Shield Heat Muffler

$4.99

$

In Stock, Qty 14

0

69

Husqvarna 532159955

Gasket
(Superseded to 581881101)

$44.99

$

In Stock, only 4 left!

0

70

Husqvarna 532160589

Tube Exhaust LH
(Superseded to 581881001)

$31.99

$

In Stock, only 3 left!

0

71

Husqvarna 532183906

Tube Exhaust RH

$6.49

$

Usually ships in 3-10 days

0

79

Husqvarna 532148456

Screw Socket Head 5/16-18 x 1

$4.99

$

In Stock, Qty 18

0

81

Husqvarna 532428287

Tube Drain Oil Easy

$18.99

$

In Stock, Qty 13

0

82

Husqvarna 817060620

Valve Oil Drain

$7.49

$

In Stock, Qty 20+

0

84

Husqvarna 532173937

Screw 3/8-16 x 1-1/4
(Superseded to 501606501)

$4.99

$

In Stock, Qty 11

0

85

Husqvarna 532171877

Bolt Hex 7/16-20 x 4 Gr. 5

$7.49

$

In Stock, Qty 5

0

87

Husqvarna 817000616

Bolt 5/16-18 unc x 1 w/Sems

$7.49

$

In Stock, Qty 5

0

90

Husqvarna 532187495

Screw 3/8-16 x 1

$6.49

$

In Stock, only 1 left!

0

91

Bushing

$

$

Not available
