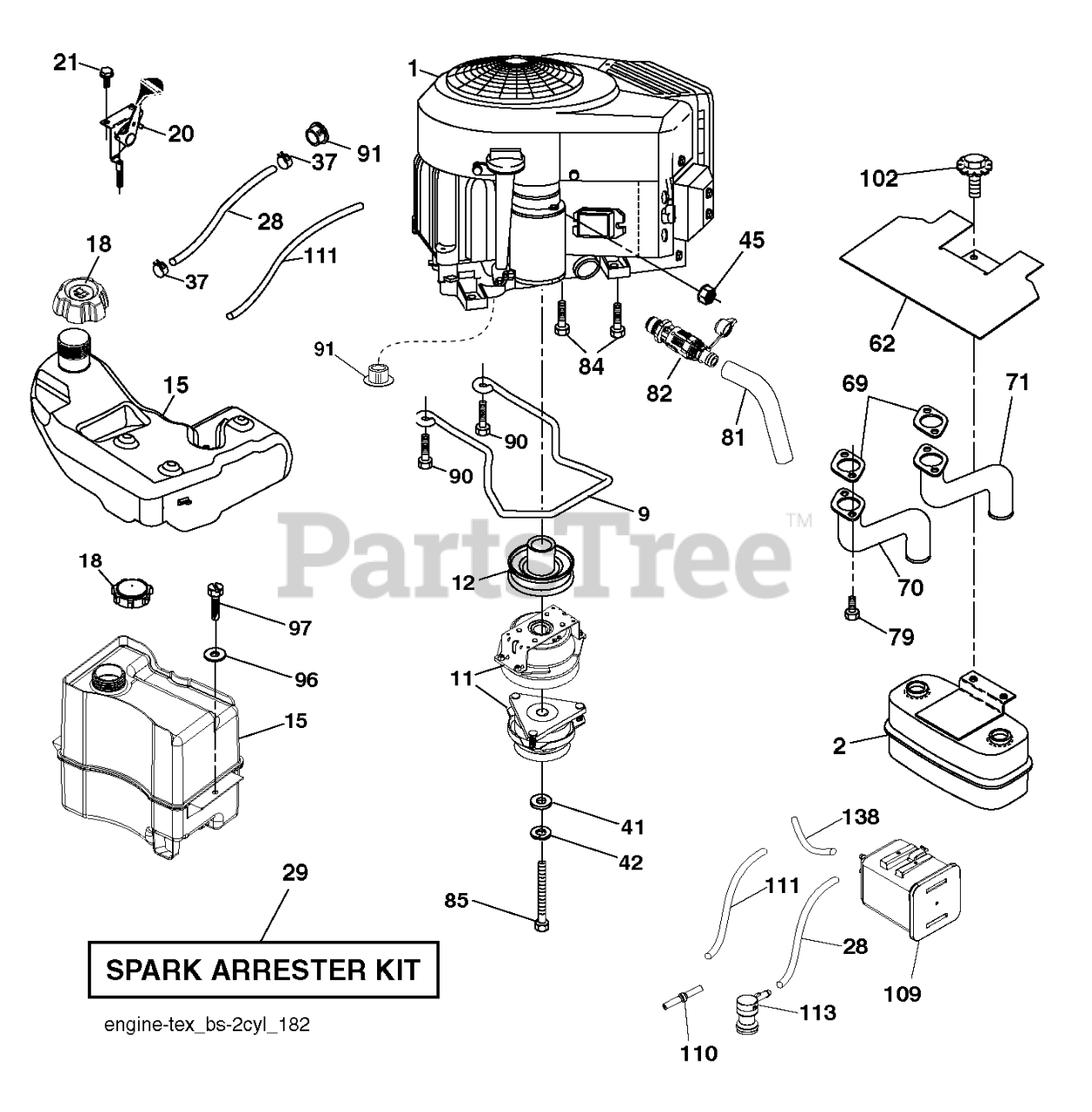

YTH 24V48 - Husqvarna 48" Yard Tractor (Original) ENGINE Parts Diagram

48" Yard Tractor

ENGINE Parts Diagram

  • Title

97

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

Note: For 96045006400, 96043025900, 96045006401

$4.99

$

In Stock, only 2 left!

0

15

Husqvarna 597954501

FUEL TANKS

Note: Fits 2.75" filler neck. For 96045006400, 96043025900, 96045006401

$

$

Not available

110

Husqvarna 532414118

VALVE.ASM.ANTI-SLOSH

Note: For 96043018900, 96045006900

$27.99

$

Usually ships in 3-10 days

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$23.99

$

In Stock, Qty 20+

0

41

Husqvarna 532126197

WASHER

$8.49

$

In Stock, Qty 15

0

113

Husqvarna 532414127

VALVE.SLANT.CARTRDG.90 DEG.TEX
(Superseded to 597791601)

Note: For 96043018900, 96045006900

$14.99

$

In Stock, only 2 left!

0

20

Husqvarna 587242501

THROTTLE.COBRA.38"READSTART.BK
(Superseded to 587242504)

Note: For 96045006400, 96043025900, 96045006900, 96045006401

$41.99

$

Usually ships in 3-10 days

0

2

Husqvarna 589818701

MUFFLER.ASM.TWIN.MNTG.BRACKET
(Superseded to 589818702)

Note: For 96043018800, 96043018900, 96045006400, 96043025900, 96045006900, 96045006401

$71.99

$

In Stock, Qty 17

0

9

Husqvarna 596501502

Keepers

$14.99

$

In Stock, only 1 left!

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

Note: For 289640, 96043018800, 96043018900

$3.99

$

In Stock, Qty 13

0

111

Husqvarna 596941501

TUBE.PURGE.FUEL.1875
(Superseded to 587044580)

Note: For 96043018900, 96045006400, 96043025900, 96045006900, 96045006401

$15.99

$

Usually ships in 3-10 days

0

20

Husqvarna 587242504

THROTTLE CABLE

Note: For 96045006900

$41.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532439208

CAP.ASM.FL.RITCH.3"E10.SYM.498

Note: Fits 2.75" filler neck. For 289640, 96043018900

$41.99

$

In Stock, only 2 left!

0

1

000000000

Note: For 289640, ENGINE BRIGGS MODEL NO. 445677-1198-B1

$

$

Not available

71

Husqvarna 581881001

EXHAUST.TUBE.RH.B&S.TWIN.INTEK

Note: RH

$29.99

$

In Stock, only 4 left!

0

102

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

Note: For 96043018800, 96043018900, 96045006400, 96043025900, 96045006900

$5.99

$

In Stock, Qty 20+

0

109

Husqvarna 532414114

CANNISTER, CARBON

Note: For 96043018900, 96045006900

$68.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 2 left!

0

85

Husqvarna 501606601

BOLT.HEX.7/16-20X3.75.GR5.RED

$3.99

$

In Stock, Qty 11

0

70

Husqvarna 581881101

EXHAUST.TUBE.LH.BS/TWIN

Note: LH

$35.99

$

In Stock, only 3 left!

0

15

Husqvarna 599837601

FUEL TANKS
(Superseded to 598703202)

Note: Fits 2.75" filler neck. For 96045006900

$

$

Not available

18

Husqvarna 529989702

FUEL CAP
(Superseded to 529989701)

Note: Fits 2.00" filler neck

$29.99

$

Usually ships in 3-10 days

0

96

Husqvarna 596135301

Washers

Note: For 96045006400, 96043025900, 96045006401

$3.99

$

In Stock, Qty 6

0

28

Husqvarna 532401137

LINE.FUEL.20"FRONT.EMI
(Superseded to 587044822)

Note: For 96043025900, 96045006400, 96045006401

$14.99

$

In Stock, only 2 left!

0

45

Husqvarna 596133601

Hardware

$3.99

$

In Stock, only 2 left!

0

18

Husqvarna 581075501

CAP.2.25'.VENTED.RATCHET.EPA

Note: Fits 2.75" filler neck. For 96045006400

$27.99

$

In Stock, Qty 6

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

Note: For 289640, 96043018800, 96043018900

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532438031

FUEL TANKS
(Superseded to 599306005)

Note: For 96043018800, 289640

$335.99

$

In Stock, Qty 11

0

69

Husqvarna 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

1

000000000

Note: For 96043018800, Engine Briggs & Stratton Model No. 44N877-0002-G1 (587813201)

$

$

Not available

91

Husqvarna 532187495

BUSHING.1.375OD

Note: For 289640, 96043018800, 96043018900, 96045006900

$5.99

$

In Stock, only 2 left!

0

102

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

79

Husqvarna 596134202

Screws

$3.99

$

In Stock, Qty 13

0

79

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18
(Superseded to 596134202)

Note: For 289640, 96043018800, 96043018900

$3.99

$

In Stock, Qty 13

0

18

Husqvarna 599502201

Fuel Caps

Note: Fits 2.75" filler neck. For 96043018900, 96045006900

$71.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

Note: For 289640, 96043018800, 96043018900, 96045006900

$27.99

$

In Stock, only 2 left!

0

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

Note: For 289640

$53.99

$

In Stock, only 2 left!

0

85

Husqvarna 501606501

BOLT.HEX.7/16-20X4.GR5.1.5BLUE

Note: For 289640

$3.49

$

Usually ships in 3-10 days

0

28

Husqvarna 587044822

HOSE.1/4".LOW.PERM.FUEL.LN.22"

Note: For 96045006400, 96043025900

$14.99

$

In Stock, only 2 left!

0

11

Husqvarna 587241601

CLUTCH.OGURA.5.0PD.GT1.5A-EH07

$299.99

$

In Stock, Qty 6

0

15

Husqvarna 532438028

Tanks
(Superseded to 532438031)

Note: Fits 2.75" filler neck. For 289640, 96043018800

$

$

Not available

15

Husqvarna 597954502

FUEL TANKS

Note: Fits 2.75" filler neck. For 96045006401

$

$

Not available

20

Husqvarna 587242504

THROTTLE CABLE

Note: For 96043025900, 96045006400, 96045006401, 96045006900

$41.99

$

Usually ships in 3-10 days

0

1

000000000

Note: For 96045006401, 96045006900 Briggs Model No. 44N877-0019-G1 (529582001)

$

$

Not available

15

Husqvarna 532414151

TANK.ASM.FUEL.3GA.CARB
(Superseded to 532420709)

Note: Fits 2.75" filler neck. For 96043018900

$

$

Not available

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

45

Husqvarna 586668901

NUT HEX_LRG FLG_1_4-20_LOCK

Note: For 289640, 96043018800, 96043018900

$3.99

$

In Stock, Qty 20+

0

138

Husqvarna 532420718

PURGE.LINE.36"REAR.CALIFORNIA

Note: For 96043018900, 96045006900

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532405097

PULLEY.ENGINE.TUFFTORQ

$71.99

$

Usually ships in 3-10 days

0

42

Husqvarna 596238901

Washers

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 598703202

FUEL TANKS

Note: Fits 2.75" filler neck. For 96043018900, 96045006900

$

$

Not available

1

000000000

Note: For 96043018900, ENGINE B&S MODEL NO. 44R877-0007-G1 (586004701)

$

$

Not available

11

Husqvarna 532414336

KIT.SVC.CLUTCH.ELECTRIC.

Note: For 289640

$395.99

$

In Stock, Qty 10

0

18

Husqvarna 587382901

FUEL.CAP.ASM.2.25TETHRED.RATCH

Note: Fits 2.75" filler neck. For 96043025900

$21.99

$

In Stock, only 1 left!

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 13

0

102

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

Note: For 289640

$5.99

$

In Stock, Qty 10

0

20

Husqvarna 532423502

CONTROL.TH/CK.COBRA.B&S.TWN.BK

Note: For 289640, 96043018800, 96043018900

$26.99

$

In Stock, Qty 20+

0

1

000000000

Note: For 96045006400, 96043025900, Model No.44N877-0003-G1 (501259701)

$

$

Not available

9

Husqvarna 501832602

KEEPER.BELT.ENG.4.25"2.BLT.431
(Superseded to 596501502)

$14.99

$

In Stock, only 1 left!

0

21

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 13

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

18

Husqvarna 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

Note: Fits 2.75" filler neck. For 96045006400, 96045006401

$27.99

$

In Stock, Qty 6

0

15

Husqvarna 597954503

FUEL TANK

Note: Fits 2.75" filler neck. For 96043025900, 96045006400, 96045006401

$

$

Not available

18

Husqvarna 585124801

CAP ASSY FUEL 3" GRAY

Note: Fits 2.75" filler neck. For 96043018800, 289640

$23.99

$

In Stock, only 4 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

85

Husqvarna 532179953

BOLT HEX 7/16-20 X 3.75 GR. 5
(Superseded to 501606601)

Note: For 96043018900

$3.99

$

In Stock, Qty 11

0

18

Husqvarna 529989703

FUEL CAP

Note: Fits 2.00" Filler Neck - Carb - 960450069

$23.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0
