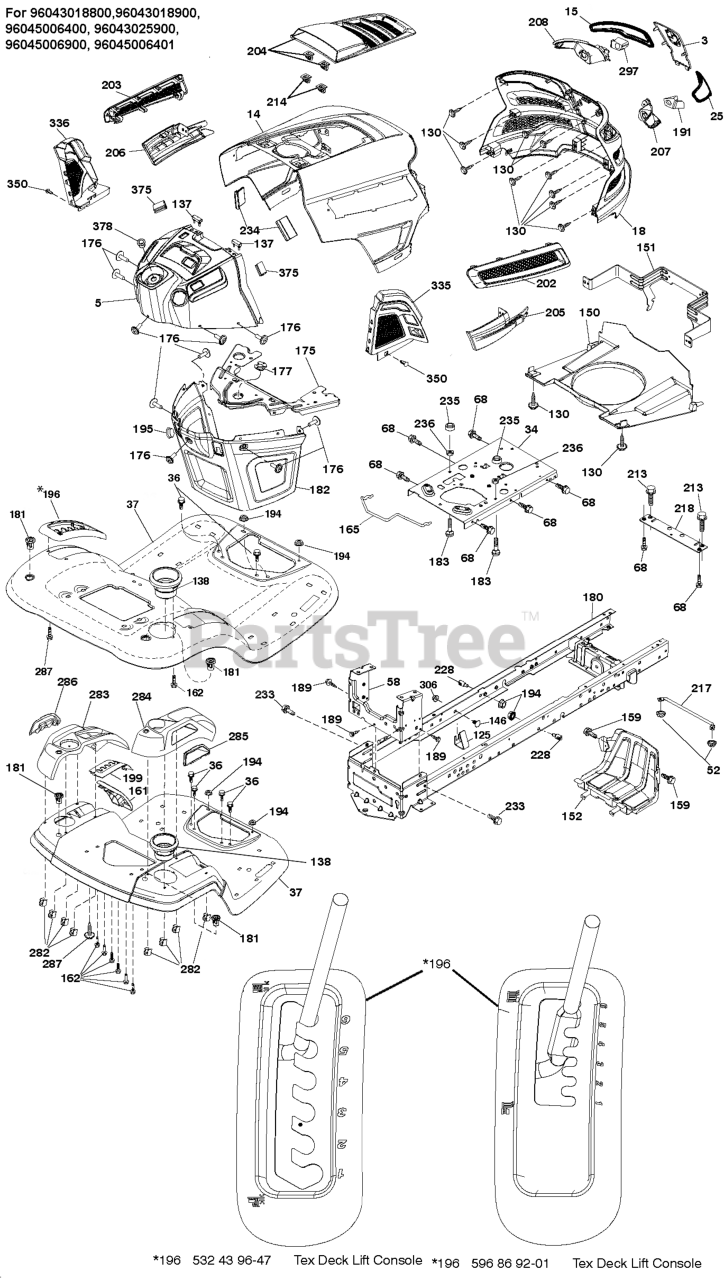

YTH 24V54 - Husqvarna 54" Yard Tractor (Original) CHASSIS / FRAME Parts Diagram

54" Yard Tractor

CHASSIS / FRAME Parts Diagram

  • Title

180

Husqvarna 532415063

CHASS.WLDMNT.TL.12GA/2P.48/54

$275.99

$

Usually ships in 3-10 days

0

183

Husqvarna 595305701

Screws

$4.99

$

In Stock, only 1 left!

0

146

Husqvarna 581857901

BOLT.RDHD.SHT.SQNK.3/8-16X5/8

$3.99

$

Usually ships in 3-10 days

0

284

Husqvarna 532439823

CONCOLE.CNTRL.PDL.HUSQ.LT.498
(Superseded to 532439150)

Note: For 96043018800, 96043018900

$45.99

$

Usually ships in 3-10 days

0

235

Husqvarna 532406129

SPACER FENDER
(Superseded to 596564201)

Note: For 96043018800, 96043018900

$5.99

$

Usually ships in 3-10 days

0

204

Husqvarna 587485801

VENT.TOP.ASM.HUSQ.GT2

Note: For 96045006400, 96043025900, 96045006900, 96045006401, 96043018800, 96043018900

$28.99

$

In Stock, Qty 9

0

175

Husqvarna 590607702

PLATE.PNT.CROSSMEMBER.HUSQ/PRE

$41.99

$

Usually ships in 3-10 days

0

236

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$3.49

$

In Stock, only 4 left!

0

233

Husqvarna 532196539

BOLT.SHOULDER

$1.49

$

In Stock, Qty 20+

0

15

Husqvarna 532439733

LENS.HEADLIGHT.LH.GTII.2011

Note: LH

$14.99

$

In Stock, only 3 left!

0

235

Husqvarna 596564201

Spacers

$5.99

$

Usually ships in 3-10 days

0

150

Husqvarna 532439774

AIR.DUCT.GTV.BLACK

$53.99

$

In Stock, Qty 5

0

68

Husqvarna 596030701

Screws

$3.99

$

In Stock, Qty 7

0

58

Husqvarna 532412280

DRAWBAR UPPER 2PC SMALL FENDER
(Superseded to 531152601)

$59.99

$

In Stock, Qty 10

0

214

Husqvarna 532199145

CLIP.RETAINER.TINNER.

$3.99

$

In Stock, Qty 10

0

283

Husqvarna 532439861

CONSOLE.DECK.LIFT.R.SDFL.HUSQ
(Superseded to 532413491)

Note: For 96043018800, 96043018900

$47.99

$

Usually ships in 3-10 days

0

208

Husqvarna 587464501

HEADLIGHT.CUP.BEZEL.HUS.GT2.LH

Note: LH

$14.99

$

In Stock, only 2 left!

0

204

Husqvarna 532416615

VENT.ASM.TORPHD.HUSQGT.LOGO.CL

$

$

Not available

378

Husqvarna 590849801

BUSHING FLANGE; PLASTIC

Note: For 96045006400, 96043025900, 96045006900, 96045006401

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532440653

GRILLE.SUBSTRATE.2011.
(Superseded to 584439702)

Note: For 96043018800, 96043018900

$119.99

$

In Stock, only 4 left!

0

228

Husqvarna 593824001

STUD.W/"D"ANTI-ROTATION

$4.99

$

In Stock, only 3 left!

0

287

Husqvarna 817600406

SCREW 1/4X20

$3.99

$

Usually ships in 3-10 days

0

183

Husqvarna 874520520

BOLT.5/16-18X1-1/4 FULL THD
(Superseded to 595305701)

Note: For 96043018800, 96043018900

$4.99

$

In Stock, only 1 left!

0

37

Husqvarna 532418673

FENDER.TLT.W/CPH.W/FW.ORANGE

Note: For 96045006900

$263.99

$

Usually ships in 3-10 days

0

182

Husqvarna 532406859

DASH.LOWER.COMMON.12V.ADAPTOR

$131.99

$

In Stock, only 2 left!

0

25

Husqvarna 532443385

LENS.HEADLIGHT.RH.GTII.2011

Note: RH

$14.99

$

In Stock, Qty 5

0

189

Husqvarna 817000612

SCREW, 3/8-16X3/4

Note: For 96045006400, 96043025900, 96045006900

$4.99

$

In Stock, Qty 17

0

159

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

Note: For all except 96043018900

$5.99

$

In Stock, Qty 20+

0

165

Husqvarna 532196826

SUPPORT.TANK.REAR.W/TEX

Note: For 96043018800, 96043018900, 96045006900

$33.99

$

Usually ships in 3-10 days

0

*196

Husqvarna 596869201

Consoles

Note: For 96045006400, 96043025900, 96045006900, 96045006401

$23.99

$

Usually ships in 3-10 days

0

5

Husqvarna 590748821

DASHBOARD.UPPER.ASM.GT2.498

Note: For 96045006400, 96043025900, 96045006900, 96045006401

$53.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532437471

DASH.UPR.ASSY.GT2.SRVMNDER.PTO

Note: For 96043018900

$

$

Not available

177

Husqvarna 532195228

BUSHING STEERING

$5.99

$

In Stock, Qty 20+

0

36

Husqvarna 817060512

SCREW 5/16"
(Superseded to 532171877)

$5.99

$

In Stock, Qty 10

0

34

Husqvarna 580910801

PLATE.ENGINE.WELDED.CHASSIS

$77.99

$

Usually ships in 3-10 days

0

336

Husqvarna 532445309

COVER-LH.LOWER.DASH.GT2.BLACK

$33.99

$

In Stock, Qty 9

0

286

Husqvarna 532416317

CONSOLE.INSRT.LH.HUSQ.LT.BLACK

Note: For 96043018800, 96043018900, LH

$14.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532423694

FENDER.TLT.FS.W/CPH/FW/RSF.ORN

Note: For 96043018800, 96043018900

$263.99

$

Usually ships in 3-10 days

0

207

Husqvarna 587464801

HEADLIGHT.CUP.BEZEL.HUS.GT2.RH

Note: RH

$14.99

$

In Stock, only 3 left!

0

375

Husqvarna 586908201

BUMPER CLIP-ON. DASH 1"

Note: For 96043018800, 96045006400, 96043025900, 96045006900, 96043018900, 96045006401

$4.99

$

Usually ships in 3-10 days

0

213

Husqvarna 874760512

BOLT
(Superseded to 539976934)

Note: For 96043018800, 96043018900

$4.99

$

In Stock, Qty 20+

0

176

Husqvarna 532400776

SCREW.#10-24X5/8.RN.QU

$4.99

$

In Stock, only 2 left!

0

181

Husqvarna 532439746

BUSHING.MNT.FEND.CRGO.TEX.49
(Superseded to 532403025)

Note: For 96045006400, 96043025900, 96045006900, 96045006401

$5.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532437483

DASH
(Superseded to 584357601)

Note: For 96043018800

$101.99

$

Usually ships in 3-10 days

0

159

Husqvarna 817000616

SCREW 3/8-16X1

Note: For 96043018900

$7.49

$

In Stock, Qty 20+

0

189

Husqvarna 817000512

SCREW
(Superseded to 532428867)

Note: For 96045006401, 96045006900

$5.99

$

In Stock, Qty 20+

0

125

Husqvarna 581684801

CLIP.FUEL.LINE

$3.49

$

Usually ships in 3-10 days

0

159

Husqvarna 817000512

SCREW
(Superseded to 532428867)

Note: For 96045006401, 96045006400, 96043025900, 96045006900, 96043018800

$5.99

$

In Stock, Qty 20+

0

218

Husqvarna 532196395

X-PIECE.HOOD.STOP.NON/

$8.49

$

In Stock, only 2 left!

0

213

Husqvarna 596030501

SCREW HEXAGON HEAD SCREW 5/16-

$4.99

$

In Stock, Qty 20+

0

297

Husqvarna 532437456

INSERT.REFLECTIVE.LH.HUSQ.GTII

$21.99

$

Usually ships in 3-10 days

0

283

Husqvarna 532439151

CONSOLE.ASM.LFT.RSF.HUSQ.LT

Note: For 96043018800, 96043018900.

$47.99

$

Usually ships in 3-10 days

0

151

Husqvarna 532436670

BRACKET.PIVOT.HOOD.GT.HUSQ.II
(Superseded to 531077401)

$53.99

$

In Stock, only 2 left!

0

*196

Husqvarna 532439647

DECKLFT.CONSOL FULL ASSM GREY

Note: For 96045006400, 96043025900, 96045006900, 96045006401

$

$

Not available

152

Husqvarna 532439870

SHIELD.BROWNING.PNT.GT.V2

$23.99

$

In Stock, Qty 20+

0

138

Husqvarna 532439747

HOLDER.CUP.LT.GREY

Note: For 96045006400, 96043025900, 96045006900, 96045006401

$5.99

$

Usually ships in 3-10 days

0

18

Husqvarna 597247201

Grilles

$119.99

$

In Stock, only 4 left!

0

202

Husqvarna 532439728

VENT.SIDE.RH.GT.HUSQ.II.

Note: RH

$21.99

$

In Stock, Qty 7

0

350

Husqvarna 532445143

CLIP.X-MAS.TREE

$3.49

$

In Stock, Qty 20+

0

199

Husqvarna 532413485

PLATE.DECK.LIFT.HUSQ.LT

Note: For 96043018800, 96043018900

$14.99

$

In Stock, only 2 left!

0

161

Husqvarna 532439781

WINDOW.FUEL.LT.HUSQ.TEX.498

Note: For 96043018800, 96043018900, 96045006900

$8.49

$

Usually ships in 3-10 days

0

234

Husqvarna 532404742

BUMPER.HOOD.TEX.HUSQVARNA

Note: For 96043018900

$7.49

$

Usually ships in 3-10 days

0

130

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 9

0

335

Husqvarna 532448204

COVER.LOWER.DASH.RH.BLACK

$33.99

$

In Stock, Qty 7

0

137

Husqvarna 532407590

BUMPER DASH

$4.99

$

Usually ships in 3-10 days

0

282

Husqvarna 532414110

CLIP.RETAINER.CONSOLE.LT.HUSQ

Note: For 96043018800, 96043018900

$3.49

$

In Stock, Qty 14

0

284

Husqvarna 532439150

CONSOLE.SHFT.PDL.CNTRL.HUSQ.LT

Note: For 96043018800, 96043018900

$45.99

$

Usually ships in 3-10 days

0

195

Husqvarna 532404137

PLUG.HOLE.DASH.LOWER.12V.BLK

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 596040501

Hardware

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 590748813

Dashes

Note: For 96043018900, 96043018800

$47.99

$

Usually ships in 3-10 days

0

14

Husqvarna 587483301

KIT.HOOD.ASM.HUSQ.GT.TEX.668

$119.99

$

In Stock, only 1 left!

0

194

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

Note: For 96043018800, 96043018900

$

$

Not available

194

Husqvarna 596135701

GSPW Nuts

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 584357601

DASH.UPR.ASSY.GT2.SRVMNDER.PTO

$101.99

$

Usually ships in 3-10 days

0

285

Husqvarna 532416315

CONSOLE INSERT RH

Note: For 96043018800, 96043018900, RH

$29.99

$

Usually ships in 3-10 days

0

162

Husqvarna 596134101

Screws

$3.99

$

In Stock, Qty 13

0

206

Husqvarna 532439729

SIDE.TRIM.LH.GT.HUSQ.II.GRAY

$21.99

$

In Stock, only 4 left!

0

3

Husqvarna 532444481

APPLIQUE.SUBASM.GT.HUSQ.II

$27.99

$

Usually ships in 3-10 days

0

306

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

162

Husqvarna 532142432

SCREW.HI-LO.CONSOLE
(Superseded to 596134101)

Note: For 96043018800, 96043018900

$3.99

$

In Stock, Qty 13

0

203

Husqvarna 532439727

VENT.SIDE.LH.GT.HUSQ.II.498

Note: LH

$21.99

$

In Stock, only 4 left!

0

205

Husqvarna 532439730

SIDE.TRIM.RH.GT.HUSQ.II

Note: RH

$17.99

$

In Stock, only 1 left!

0

189

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$5.99

$

In Stock, Qty 20+

0

191

Husqvarna 532437455

INSERT.REFLECTIVE.RH.HUSQ.GTII

$21.99

$

In Stock, only 2 left!

0

217

Husqvarna 532409167

ROD.PIVOT.HOOD

$14.99

$

In Stock, only 2 left!

0

37

Husqvarna 532441206

FENDER.TLT.PDL.CNTRL.W/CPH.ORG

Note: For 96043025900, 96045006400, 96045006401

$

$

Not available
