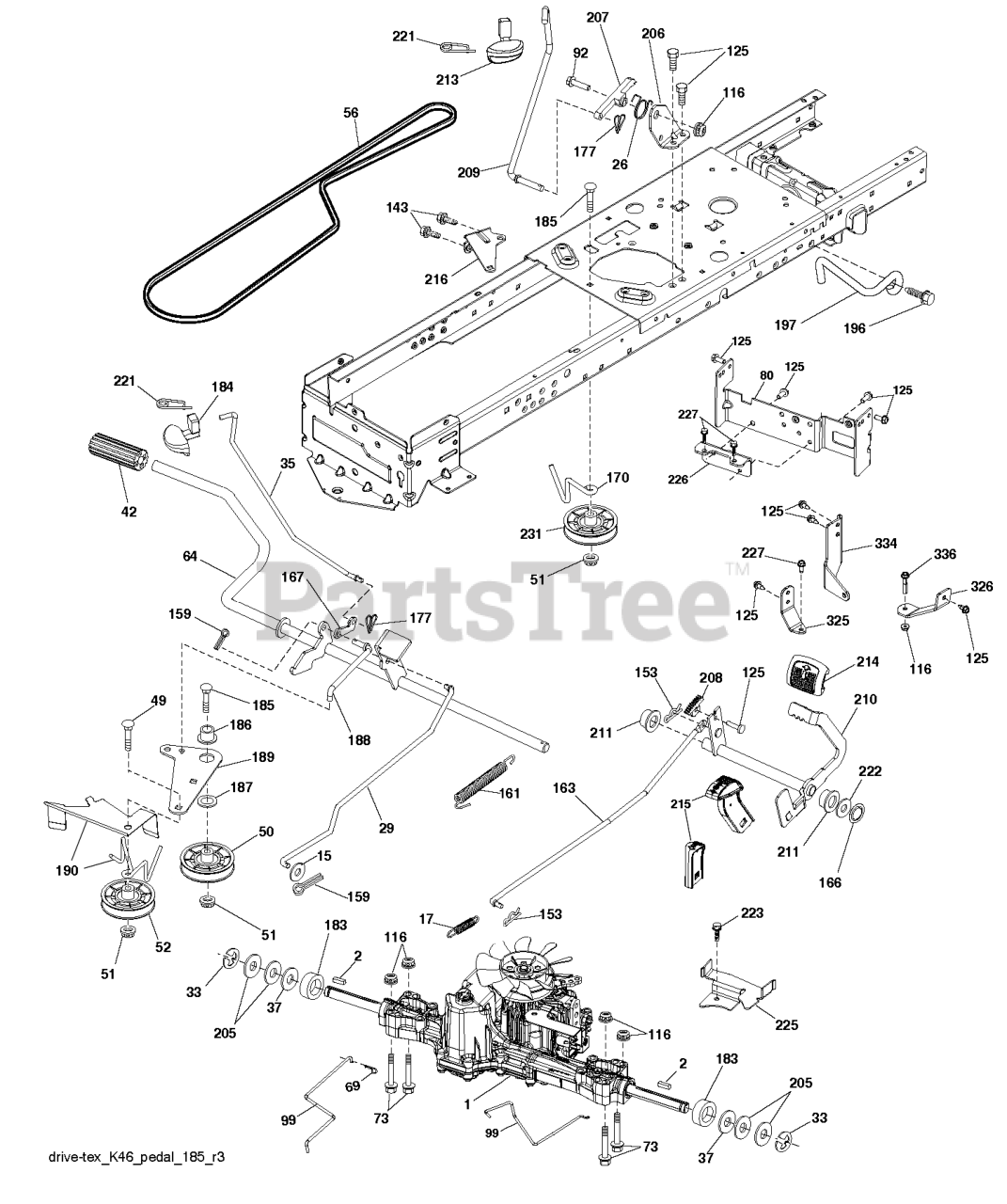

YTH 24V54 - Husqvarna 54" Yard Tractor (Original) DRIVE Parts Diagram

54" Yard Tractor

DRIVE Parts Diagram

  • Title

186

Husqvarna 532194321

SPACER.RETAINER

$7.49

$

Usually ships in 3-10 days

0

207

Husqvarna 587031402

Latch

$3.49

$

In Stock, only 1 left!

0

221

Husqvarna 532403187

RETAINER.SPRING.CLIP.H

$6.49

$

In Stock, Qty 9

0

69

Husqvarna 583404901

HAIRPIN.SOFT.ZINC.059X1.125

Note: For 96043018800, 96043025900, 96045006400, , 96045006401, 96045006900

$6.49

$

In Stock, only 2 left!

0

223

Husqvarna 598662601

BOLTS

$2.49

$

Usually ships in 3-10 days

0

170

Husqvarna 532413430

KEEPER.CENTER SPAN.1.688

$7.49

$

Usually ships in 3-10 days

0

210

Husqvarna 532400980

ROCKER.ASM.PEDAL.CONTR

$34.99

$

In Stock, only 1 left!

0

208

Husqvarna 596564101

Gears

$3.99

$

In Stock, Qty 5

0

64

Husqvarna 532197865

SHAFT.ASM.PEDAL.BRK.CNTR

$53.99

$

In Stock, only 1 left!

0

35

Husqvarna 583864502

Rods

Note: For 289640, 96043018900, 96043025900

$5.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532123583

SQUARE KEY

$4.99

$

In Stock, Qty 10

0

161

Husqvarna 532105709

SPRING, RETURN LT

$10.99

$

In Stock, Qty 17

0

153

Husqvarna 532004497

RETAINER M

$10.99

$

In Stock, Qty 19

0

99

Husqvarna 532415742

ROD.SPRING.BYPASS.K46.LT.Z

Note: For 289640, 96043018900

$10.99

$

Usually ships in 3-10 days

0

196

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 13

0

159

Husqvarna 876020412

COTTER PIN
(Superseded to 539990365)

Note: For 289640, 96043018800, 96043018900

$6.49

$

In Stock, Qty 20+

0

56

Husqvarna 592855201

Belts

$31.99

$

In Stock, Qty 20+

0

1

000000000

Note: Transaxle, Tufftorq K46BT(426120)

$

$

Not available

33

Husqvarna 812000001

E-RING LT

$4.99

$

In Stock, Qty 14

0

326

Husqvarna 586001102

BRCKT.PNT.TRQ.STP.46.18TIRE.RH

Note: RH

$4.99

$

Usually ships in 3-10 days

0

73

Husqvarna 874490540

BOLT

Note: For 289640, 96043018800, 96043018900

$4.99

$

Usually ships in 3-10 days

0

214

Husqvarna 532421263

PEDAL.FORWARD.PAD.TEX

$8.99

$

In Stock, Qty 5

0

15

Husqvarna 596565301

WASHER PLAIN WASHER 3/8 X 0.08

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 532403806

ROD.BRAKE.K46

$31.99

$

In Stock, only 1 left!

0

205

Husqvarna 532121748

WASHER

$3.49

$

In Stock, Qty 20+

0

183

Husqvarna 532137057

SPACER AXLE

$7.49

$

In Stock, Qty 10

0

325

Husqvarna 586431202

TORQUE.STRAP.K46.LT.LH
(Superseded to 586431203)

Note: LH

$3.49

$

Usually ships in 3-10 days

0

143

Husqvarna 596030701

Screws

$3.99

$

In Stock, only 2 left!

0

163

Husqvarna 593861001

Rods

$17.99

$

In Stock, only 4 left!

0

209

Husqvarna 596869801

Rods

Note: For 96043018900, 96043025900, 289640

$4.99

$

Usually ships in 3-10 days

0

227

Husqvarna 596135901

Bolts

Note: For 96043018800, 96043018900, 96043025900, 96045006400, 96045006401, 96045006900,

$2.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532008883

PEDAL COVER
(Superseded to 510089501)

$6.49

$

In Stock, Qty 14

0

326

Husqvarna 586001101

BRACKET.TRQ.STP.K46.18"TIRE.RH
(Superseded to 586001102)

Note: RH

$4.99

$

Usually ships in 3-10 days

0

226

Husqvarna 532401564

BRACKET.MOUNT.TORQUE.K46.TLT

Note: For 289640

$18.99

$

Usually ships in 3-10 days

0

52

Husqvarna 532194326

IDLER.V-GROOVE.910.OFFSET

$12.99

$

In Stock, Qty 20+

0

73

Husqvarna 596136501

Bolts

$3.99

$

In Stock, only 4 left!

0

51

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

223

Husqvarna 817000512

SCREW
(Superseded to 532428867)

Note: For 289640, 96043018800, 96043018900, 96045006401

$6.49

$

In Stock, Qty 20+

0

26

Husqvarna 532199679

SPRING.RETURN.CRUISE

$6.49

$

Usually ships in 3-10 days

0

184

Husqvarna 587653701

HANDLE.PARKING.BRAKE.H (BLK)
(Superseded to 532196439)

$12.99

$

In Stock, Qty 20+

0

325

Husqvarna 586431201

TORQUE.STRAP.K46.LT.LH
(Superseded to 586431203)

Note: LH

$3.49

$

Usually ships in 3-10 days

0

190

Husqvarna 532194318

KEEPER.BELLCRANK.DRIVE

$8.99

$

In Stock, Qty 18

0

209

Husqvarna 590527802

ROD ROD.CRUISECONTROL.GT.HUSQ/

Note: For96043018800, 96045006400, 96045006900, 96045006401

$6.49

$

Usually ships in 3-10 days

0

37

Husqvarna 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 15

0

187

Husqvarna 596135501

Washers

$3.99

$

In Stock, Qty 17

0

35

Husqvarna 590605902

ROD ROD.PARKINGBRAKE.GT.HUSQ/P

Note: For 96043018800, 96045006400, 96045006900, 96045006401

$6.49

$

Usually ships in 3-10 days

0

185

Husqvarna 872110622

BOLT

$3.99

$

In Stock, only 2 left!

0

92

Husqvarna 595305701

Screws

$3.99

$

In Stock, only 4 left!

0

56

Husqvarna 532130969

V-BELT.MOWER.92.40.42/K46

Note: For 289640, 96043018800, 96043018900

$31.99

$

In Stock, Qty 20+

0

50

Husqvarna 532194327

IDLER.FLAT.910.OFFSET

$13.99

$

In Stock, Qty 20+

0

49

Husqvarna 872110614

BOLT

Note: For 289640, 96043018800, 96043018900

$6.49

$

Usually ships in 3-10 days

0

197

Husqvarna 532195804

LINK.CLUTCH.ANIT-ROTAT

Note: For 289640

$8.99

$

In Stock, Qty 12

0

184

Husqvarna 532196439

HANDLE.PARKING.BRAKE.H (BLK)

$12.99

$

In Stock, Qty 20+

0

206

Husqvarna 532448596

BRACKET.MOUNT.CRUISE.LATCH

$4.99

$

In Stock, only 1 left!

0

125

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 20+

0

211

Husqvarna 532120183

BEARING.NYLON

$6.49

$

In Stock, only 3 left!

0

17

Husqvarna 532413678

SPRING.BRAKE.K46.GREEN

$7.49

$

In Stock, Qty 11

0

207

Husqvarna 532197868

LATCH.CONTROL.CRUISE
(Superseded to 587031401)

Note: For 289640, 96043018800, 96043018900

$

$

Not available

209

Husqvarna 532199592

ROD.CONTROL.CRUISE.GT.

Note: For 289640, 96043018800, 96043018900

$10.99

$

Usually ships in 3-10 days

0

166

Husqvarna 532429164

NUT.PUSH.625

$6.49

$

In Stock, only 1 left!

0

159

Husqvarna 596029501

Pins

$3.99

$

In Stock, only 1 left!

0

189

Husqvarna 532194317

BELLCRANK.GROUND.DRIVE.TEX.

$

$

Not available

216

Husqvarna 532196131

BRACKET.PULLEY.IDLER.W/TEX

$7.49

$

In Stock, only 2 left!

0

334

Husqvarna 585882202

SWAY.ROD.BRACKET.K46.X431

$7.99

$

Usually ships in 3-10 days

0

225

Husqvarna 532403319

KEEPER.BELT.TRANSAXLE.K46

$3.49

$

In Stock, only 3 left!

0

15

Husqvarna 819131316

WASHER
(Superseded to 596565301)

Note: For 289640, 96043018800, 96043018900, 96045006400

$3.99

$

In Stock, Qty 20+

0

116

Husqvarna 596135701

GSPW Nuts

$3.99

$

In Stock, Qty 20+

0

167

Husqvarna 532405257

LATCH.BRAKE.SPRING

$4.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532423303

HAIRPIN.SOFT.ZINC.059X1.125
(Superseded to 583404901)

Note: For 96043018800, 96043025900, 96045006400, 96045006401, 96045006900

$6.49

$

In Stock, only 2 left!

0

177

Husqvarna 587225301

PIN COTTER;LOCKING;BOWTIE;1IN

$4.99

$

In Stock, only 3 left!

0

188

Husqvarna 582217001

LINK.CLUTCH.GROUND DRIVE.LONG
(Superseded to 532194323)

$4.99

$

In Stock, Qty 13

0

222

Husqvarna 879212010

WASHER 21/32 X 1-1/4 X 10 GA.

$6.49

$

In Stock, only 3 left!

0

336

Husqvarna 596135701

GSPW Nuts

Note: For 96045006900, 96045006401

$3.99

$

In Stock, Qty 20+

0

116

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

Note: For 289640, 96043018800, 96043018900

$

$

Not available

49

Husqvarna 596136201

Bolts

$3.99

$

In Stock, Qty 7

0

197

Husqvarna 585658601

CLUTCH.ANTIROTATION.WIREFORM.

Note: For 96043018800, 96043018900

$4.99

$

Usually ships in 3-10 days

0

336

Husqvarna 587259602

Bolts

Note: For 96043018800, 96043018900, 96043025900, 96045006400, 96045006401, 96045006900

$3.99

$

Usually ships in 3-10 days

0

231

Husqvarna 532407287

IDLER.V-GROOVE.1.688.OFFSET

$18.99

$

In Stock, Qty 20+

0

227

Husqvarna 596030501

SCREW HEXAGON HEAD SCREW 5/16-

Note: For 289640

$3.99

$

In Stock, Qty 20+

0

197

Husqvarna 585658602

Stop

$3.99

$

In Stock, only 1 left!

0

213

Husqvarna 532403119

KNOB.CONTROL.CRUSIE.HU

$12.99

$

In Stock, only 1 left!

0

177

Husqvarna 596029401

GSPW Retainers

Note: For 289640, 96043018800, 96043018900

$3.99

$

In Stock, Qty 13

0

215

Husqvarna 532401723

PEDAL.REVERSE.TEX.GT.4

Note: For 289640, 96043018900

$7.49

$

Usually ships in 3-10 days

0

80

Husqvarna 532410024

STRAP TORQUE
(Superseded to 532440619)

Note: For 289640

$24.99

$

Usually ships in 3-10 days

0

336

Husqvarna 587259601

BOLT.5/16-18X1-3/4.FLANGED.HEX

Note: For 96043018800, 96043018900

$

$

Not available

99

Husqvarna 582404501

ARM.PIVOTING.TCRD.GEN2.5.BAGGE

Note: For 96043018800, 96045006400, 96043025900, 96045006900, 96045006401

$6.49

$

Usually ships in 3-10 days

0

1

000000000

Note: Transaxle, Tufftorq K46BT(532426120)

$

$

Not available

215

Husqvarna 586606502

PEDAL.COVER.REVERSE.CRD.X428BK

Note: For 96043018800, 96045006400, 96045006401, 96043025900, 96045006900,

$10.99

$

In Stock, only 1 left!

0
