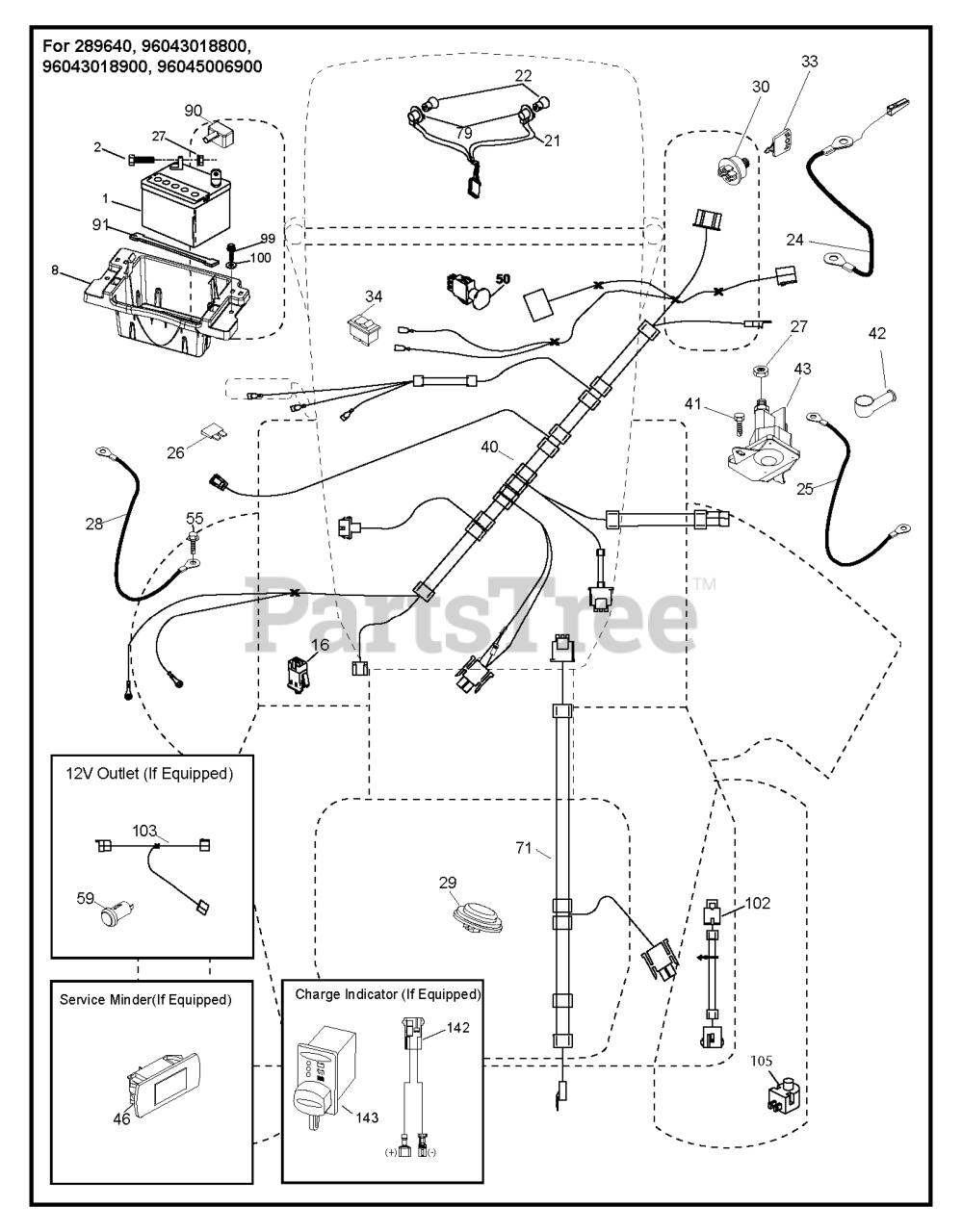

YTH 24V54 - Husqvarna 54" Yard Tractor (Original) ELECTRICAL Parts Diagram

54" Yard Tractor

ELECTRICAL Parts Diagram

  • Title

105

Husqvarna 532407568

REVERSE SWITCH

$17.99

$

In Stock, only 2 left!

0

42

Husqvarna 532131563

TERMINAL COVER
(Superseded to 532154336)

$7.49

$

In Stock, only 4 left!

0

102

Husqvarna 532404454

HARNESS PIGTAIL PCH TEX ROS

$21.99

$

In Stock, only 2 left!

0

21

Husqvarna 532183759

HARNESS ASSY LIGHT

Note: For 289640

$35.99

$

In Stock, only 1 left!

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$3.99

$

In Stock, only 2 left!

0

46

Husqvarna 586161801

GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

Note: For 96043018800

$

$

Not available

71

Husqvarna 532194276

HARNESS-CHASSIS SUB

Note: For 96043018900, 96043018800, 96045006900, 289640

$35.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532435395

COVER.TERMINAL.BATTERY

Note: For 96043018800, 96043018900, 96045006900

$5.99

$

In Stock, only 1 left!

0

90

Husqvarna 532400724

COVER.TERMINAL.BATTERY

Note: For 289640

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 594919101

GUAGE.SRVCMNDR.HRMTR.

$

$

Not available

50

Husqvarna 582107602

RP SWITCH.PTO.TERMINAL.STD.RED
(Superseded to 582107601)

$31.99

$

In Stock, Qty 20+

0

28

Husqvarna 532145491

CABLE GROUND 6 GA 21" 90T BLK

Note: For 289640

$10.99

$

In Stock, only 2 left!

0

40

Husqvarna 532401104

HARNESS.IGN.DASH.HUQ/P

Note: For 289640, 96043018900

$79.99

$

In Stock, only 3 left!

0

33

Husqvarna 532411935

KEY.CHAIN.BLISTER.PACK.GEN.INT

Note: For 289640

$11.99

$

In Stock, Qty 20+

0

71

Husqvarna 501133701

HARNESS.CHASSIS.RRBATT.RDYSTRT

Note: For 96043025900, 96045006400, 96045006401

$77.99

$

In Stock, only 1 left!

0

21

Husqvarna 532400252

HARNESS.LIGHT W/4152J BULBS

Note: For all except 289640

$27.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532186491

BOX.BATTERY.MOUNT.FRONT.LT

Note: For 289640

$

$

Not available

55

Husqvarna 817060512

SCREW 5/16"
(Superseded to 532171877)

$5.99

$

In Stock, Qty 10

0

40

Husqvarna 581023201

HARNESS.TEX.DASH.ELEC.REAR BAT

Note: For 96043025900, 96045006400, 96045006401

$71.99

$

In Stock, only 2 left!

0

28

Husqvarna 532416588

CABLE.GROUND.21"BLK.8GA.90T

Note: For 96043018800, 96043018900, 96045006900

$14.99

$

In Stock, only 2 left!

0

40

Husqvarna 501132901

HARNESS HARNESS..DASH.ING.ELEC

Note: For 96043018800, 96045006900

$77.99

$

Usually ships in 3-10 days

0

24

Husqvarna 585555601

CABLE.FRBATT.W/WIRE.8GA.8

$9.49

$

In Stock, Qty 7

0

27

Husqvarna 596133601

Hardware

$3.99

$

In Stock, only 2 left!

0

8

Husqvarna 532414126

TRAY.ASM.BATTERY.FRT.TEX.CARB
(Superseded to 587210601)

Note: For 96043018900, 96045006900

$71.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532401763

RP.GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

Note: For 289640, 96043018900

$

$

Not available

43

Husqvarna 582042802

Solenoids

$33.99

$

In Stock, Qty 20+

0

79

Husqvarna 532175242

BULB HOLDER ASM.

$17.99

$

In Stock, Qty 9

0

1

Husqvarna 532163465

Battery 12 Volt 25 Amp
(Superseded to 532123899)

$205.99

$

In Stock, Qty 7

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 20+

0

27

Husqvarna 586668901

NUT HEX_LRG FLG_1_4-20_LOCK

Note: For 289640, 96043018800, 96043018900

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 532401545

SWITCH.SEAT.DELTA.OPC.

$45.99

$

In Stock, Qty 18

0

8

Husqvarna 587205101

TRAY.BATTERY BOX.FRONT

Note: For 96043018800, 289640

$21.99

$

Usually ships in 3-10 days

0

41

Husqvarna 817720408

SCREW
(Superseded to 596437001)

$3.99

$

In Stock, only 1 left!

0

26

Husqvarna 532175158

FUSE 20AMP

$5.99

$

In Stock, Qty 5

0

22

Husqvarna 532004152

LIGHTBULB

$5.99

$

In Stock, Qty 20+

0

100

Husqvarna 596135301

Washers

$3.99

$

In Stock, Qty 6

0

30

Husqvarna 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$35.99

$

In Stock, Qty 20+

0

99

Husqvarna 817670412

SCREW HEXWSHR 1/4-20X3/4

$4.99

$

In Stock, only 2 left!

0

33

Husqvarna 532411933

KEY.CHAIN.BLISTER.PACK.GEN.USA
(Superseded to 532411935)

Note: For 96043018800, 96043018900, 96045006900

$11.99

$

In Stock, Qty 20+

0

25

Husqvarna 585555501

CABLE.STARTER.8GA.17.5

$9.49

$

In Stock, Qty 11

0

91

Husqvarna 532190270

STRAP.BATTERY.MOUNT.FRONT(2 2)

Note: For 289640, 96043018900

$8.49

$

In Stock, only 3 left!

0

34

Husqvarna 532110712

SWITCH LT

$9.49

$

In Stock, Qty 10

0
