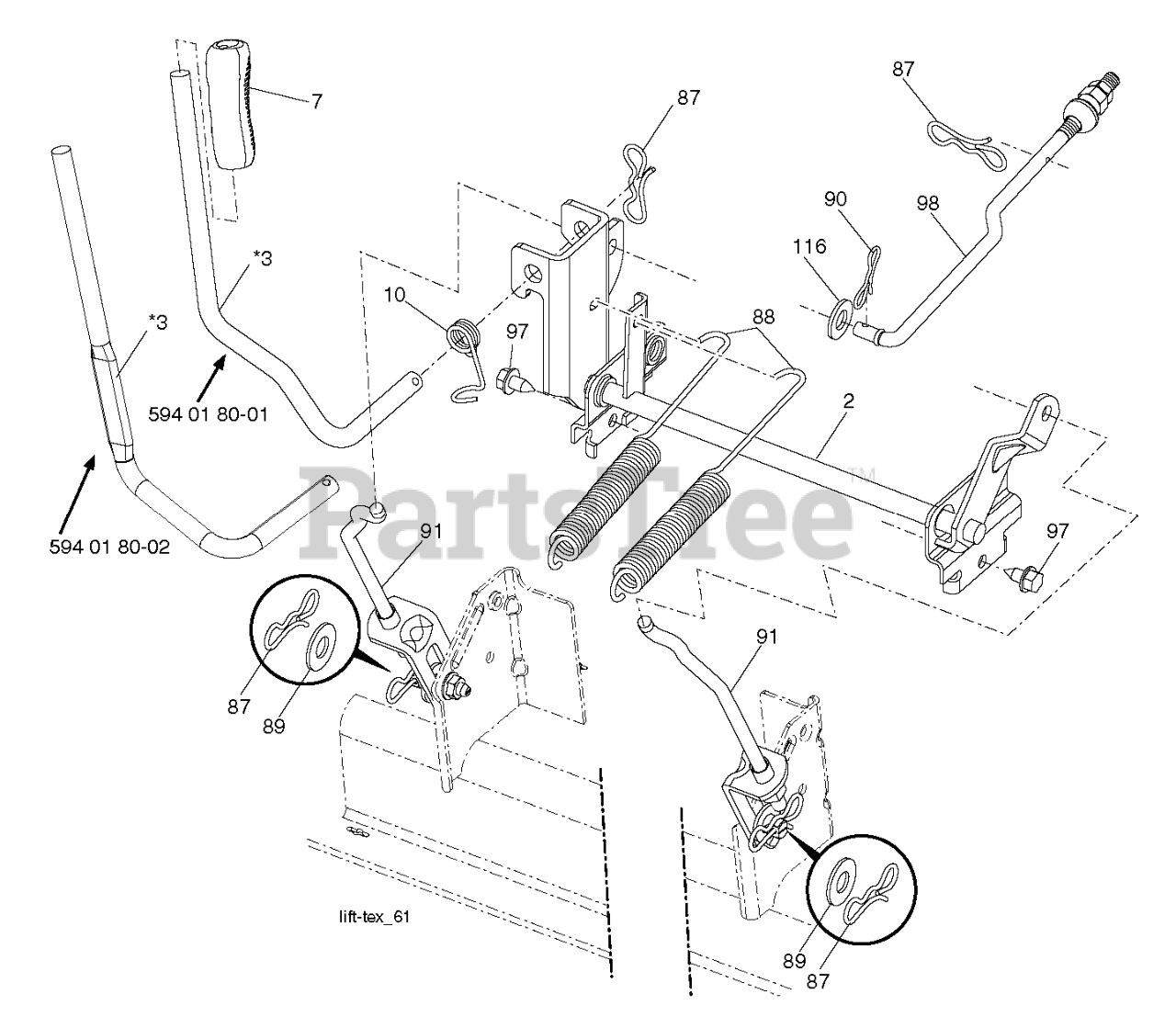

YTH 24V54 - Husqvarna 54" Yard Tractor (Original) MOWER LIFT / DECK LIFT Parts Diagram

54" Yard Tractor

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

116

Husqvarna 594976501

Washers

$3.49

$

In Stock, only 2 left!

0

7

Husqvarna 532411555

GRIP.HANDLE.LIFT.PVC.BLACK

Note: For 289640

$9.49

$

In Stock, only 2 left!

0

116

Husqvarna 819151516

WASHER
(Superseded to 594976501)

Note: For 96043018800

$3.49

$

In Stock, only 2 left!

0

*3

Husqvarna 594018002

Levers

Note: For 96045006400, 96043025900, 96045006900, 96045006401

$20.99

$

In Stock, only 2 left!

0

10

Husqvarna 532196314

SPRING.TORSION.LIFT.HANDLE

$4.99

$

In Stock, only 1 left!

0

97

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

90

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$1.49

$

In Stock, Qty 20+

0

89

Husqvarna 819191912

WASHER.CLEAR.ZINC

$3.49

$

In Stock, Qty 10

0

*3

Husqvarna 594018001

Levers

Note: For 96043018800, 96043018900, 289640

$22.99

$

In Stock, only 1 left!

0

91

Husqvarna 589464805

Links

$22.99

$

In Stock, only 2 left!

0

98

Husqvarna 581506902

Links

$13.99

$

In Stock, Qty 20+

0

7

Husqvarna 580962301

GRIP.HANDLE.LIFT.PVC.BLACK
(Superseded to 532411555)

$9.49

$

In Stock, only 2 left!

0

87

Husqvarna 532194209

PIN.COTTER.7/16.BOW TI.

$3.49

$

In Stock, Qty 20+

0

88

Husqvarna 532410710

SPRING.LIFT.ASSIST

$13.99

$

In Stock, only 2 left!

0

2

Husqvarna 532422027

SHAFT.ASM.CROSS.LIFT

$79.99

$

In Stock, only 1 left!

0

116

Husqvarna 819191912

WASHER.CLEAR.ZINC

Note: For 289640, 96043018900

$3.49

$

In Stock, Qty 10

0
