YTH 2548 (954571984-A) - Husqvarna 48" Yard Tractor (2004-06) Mower Deck Parts Diagram

48" Yard Tractor

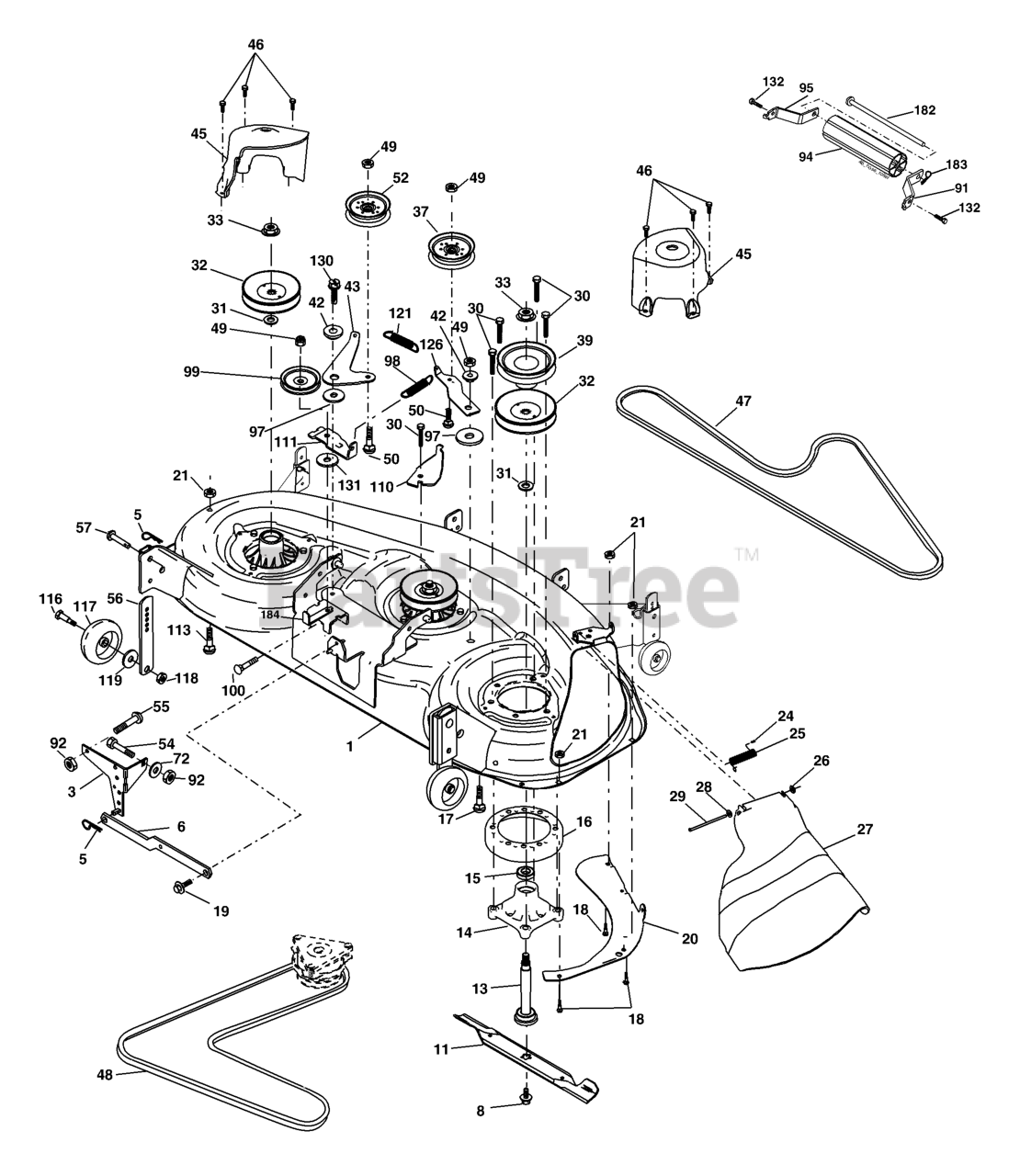

Mower Deck Parts Diagram

  • Title

1

Husqvarna 532181848

DECK WELDMENT MOWER, 48
(Superseded to 532184233)

$

$

Not available

3

Husqvarna 532138017

BRKT ASM SWAY BAR
(Superseded to 531165401)

$21.99

$

In Stock, Qty 13

0

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

6

Husqvarna 532178024

BAR SWAY DECK
(Superseded to 531149301)

$14.99

$

In Stock, only 2 left!

0

8

Husqvarna 532174365

BOLT 7/16 ASM BLADE
(Superseded to 532193003)

$9.49

$

In Stock, Qty 20+

0

11

Husqvarna 532180054

48" HI-LIFT BLADE

$29.99

$

In Stock, Qty 20+

0

13

Husqvarna 532175147

SHAFT, ASM. MANDEREL SEALED

$

$

Not available

14

Husqvarna 532174358

HOUSING, MANDREL 48"

$65.99

$

In Stock, Qty 7

0

15

Husqvarna 532110485

BEARING

$17.99

$

In Stock, Qty 20+

0

16

Husqvarna 532174493

STRIPPER.MANDREL.ROUND.BLACK
(Superseded to 531167701)

$10.99

$

In Stock, Qty 20+

0

17

Husqvarna 872110610

BOLT
(Superseded to 596987501)

$4.99

$

In Stock, Qty 10

0

18

Husqvarna 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available

20

Husqvarna 532174378

BAFFLE, VORTEX MWR
(Superseded to 531167501)

$21.99

$

In Stock, Qty 20+

0

21

Husqvarna 873680500

LOCKNUT
(Superseded to 873690500)

$

$

Not available

24

Husqvarna 532105304

CAP-SLEEVE LT

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 532178102

SPRING, TORSION
(Superseded to 539107609)

$5.99

$

In Stock, Qty 20+

0

26

Husqvarna 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 532181707

DEFLECTOR SUBS TO 532 180655
(Superseded to 532180655)

$53.99

$

In Stock, Qty 20+

0

28

Husqvarna 819111016

Washer 11/32 x 5/8 x 16 Ga.

$

$

Not available

29

Husqvarna 532131491

ROD.HINGE
(Superseded to 595297001)

$7.49

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$3.99

$

In Stock, Qty 20+

0

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$5.99

$

In Stock, Qty 20+

0

32

Husqvarna 532177865

PULLEY, MANDREL
(Superseded to 532173436)

$21.99

$

In Stock, Qty 20+

0

33

Husqvarna 532178342

NUT, FLG TOPLOCK 9/16"
(Superseded to 596134801)

$2.49

$

In Stock, Qty 20+

0

37

Husqvarna 532177968

PULLEY.IDLER.FLAT

$33.99

$

In Stock, Qty 20+

0

39

Husqvarna 532174375

PULLEY.DRIVEN.DECK.48'

$43.99

$

In Stock, Qty 20+

0

42

Husqvarna 532122052

SPACER RETAINER
(Superseded to 532165723)

$7.49

$

In Stock, Qty 20+

0

43

Husqvarna 532174373

ARM, IDLER SECONDARY

$

$

Not available

45

Husqvarna 532180806

COVER.MANDREL.DECK.48"

$

$

Not available

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$2.49

$

In Stock, Qty 20+

0

47

Husqvarna 532180808

V-BELT, 48"SECONDARY

$65.99

$

In Stock, Qty 16

0

48

Husqvarna 532174368

V-BELT PRIMARY 48"

$65.99

$

In Stock, Qty 20+

0

49

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

50

Husqvarna 872110612

BOLT.3/8-16X1.50
(Superseded to 596136101)

$3.99

$

In Stock, Qty 9

0

52

Husqvarna 532175820

PULLEY.IDLER.FLAT.46.PR.DR.
(Superseded to 596481401)

$33.99

$

In Stock, only 1 left!

0

54

Husqvarna 874780616

BOLT
(Superseded to 596564401)

$4.99

$

In Stock, Qty 14

0

55

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$4.99

$

In Stock, only 2 left!

0

56

Husqvarna 532155986

BAR.ADJUST.WHEEL.ANTI.SCALP.BL

$27.99

$

In Stock, only 3 left!

0

57

Husqvarna 532156941

RIVET.PIN.HEAD.YELLOW.

$5.99

$

Usually ships in 3-10 days

0

72

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.99

$

In Stock, Qty 20+

0

91

Husqvarna 532180535

BRKT.NOSEROLLER.RH.48"
(Superseded to 529846201)

$7.49

$

In Stock, only 1 left!

0

92

Husqvarna 873800600

NUT
(Superseded to 873680600)

$

$

Not available

94

Husqvarna 532176066

NOSE ROLLER 48"

$14.99

$

In Stock, Qty 20+

0

95

Husqvarna 532180534

BRKT.NOSEROLLER.LH.48"
(Superseded to 529846101)

$

$

Not available

97

Husqvarna 532178515

WASHER

$7.49

$

In Stock, Qty 20+

0

98

Husqvarna 532179479

SPRING PRIMARY DRIVE

$

$

Not available

99

Husqvarna 532184058

IDLER PULLEY
(Superseded to 532193195)

$71.99

$

In Stock, only 3 left!

0

100

Husqvarna 872110616

BOLT
(Superseded to 596136301)

$3.99

$

In Stock, Qty 18

0

110

Husqvarna 532175016

ARM, SPRING SECONDARY

$

$

Not available

111

Husqvarna 532174610

ARM SPRING FIXED TENSION

$

$

Not available

113

Husqvarna 872110506

BOLT.CARR.SQNK.5/16-18UNC.X3/4

$6.99

$

In Stock, Qty 6

0

116

Husqvarna 532184219

SHOULDER BOLT
(Superseded to 532193406)

$2.49

$

In Stock, Qty 20+

0

117

Husqvarna 532133957

WHEEL GAGE DONUT

$14.99

$

In Stock, Qty 20+

0

118

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$

$

Not available

119

Husqvarna 819121414

WASHER.5/16.FLAT.STE.STD.
(Superseded to 596134901)

$3.99

$

In Stock, Qty 20+

0

121

Husqvarna 532174371

SPRING.DRIVE.SECONDARY.48".DEC

$

$

Not available

126

Husqvarna 532174372

ARM, IDLER PRIMARY DECK

$

$

Not available

130

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

131

Husqvarna 819131606

Washer 13/32 x 1 x 6 Ga.

$

$

Not available

132

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 20+

0

182

Husqvarna 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$8.49

$

In Stock, Qty 20+

0

183

Husqvarna 532163552

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

184

Husqvarna 532173979

KEEPER BELT IDLER PLATED

$

$

Not available

Husqvarna 532174357

MANDREL ASSY

Note: (Includes Housing, Shaft and Shaft Hardware Only-Pulley Not Included)

$74.99

$

In Stock, Qty 5

0

Husqvarna 532186353

DECK ASM SVC.48"N/P.HD/HP.431

Note: (Std. Deck-Order separately nose roller components key nos. 91, 94, 95, 132, 182, 183)

$

$

Not available
