YTH 26V54 (960480011-00) - Husqvarna 54" Yard Tractor (2010-12) ENGINE Parts Diagram

54" Yard Tractor

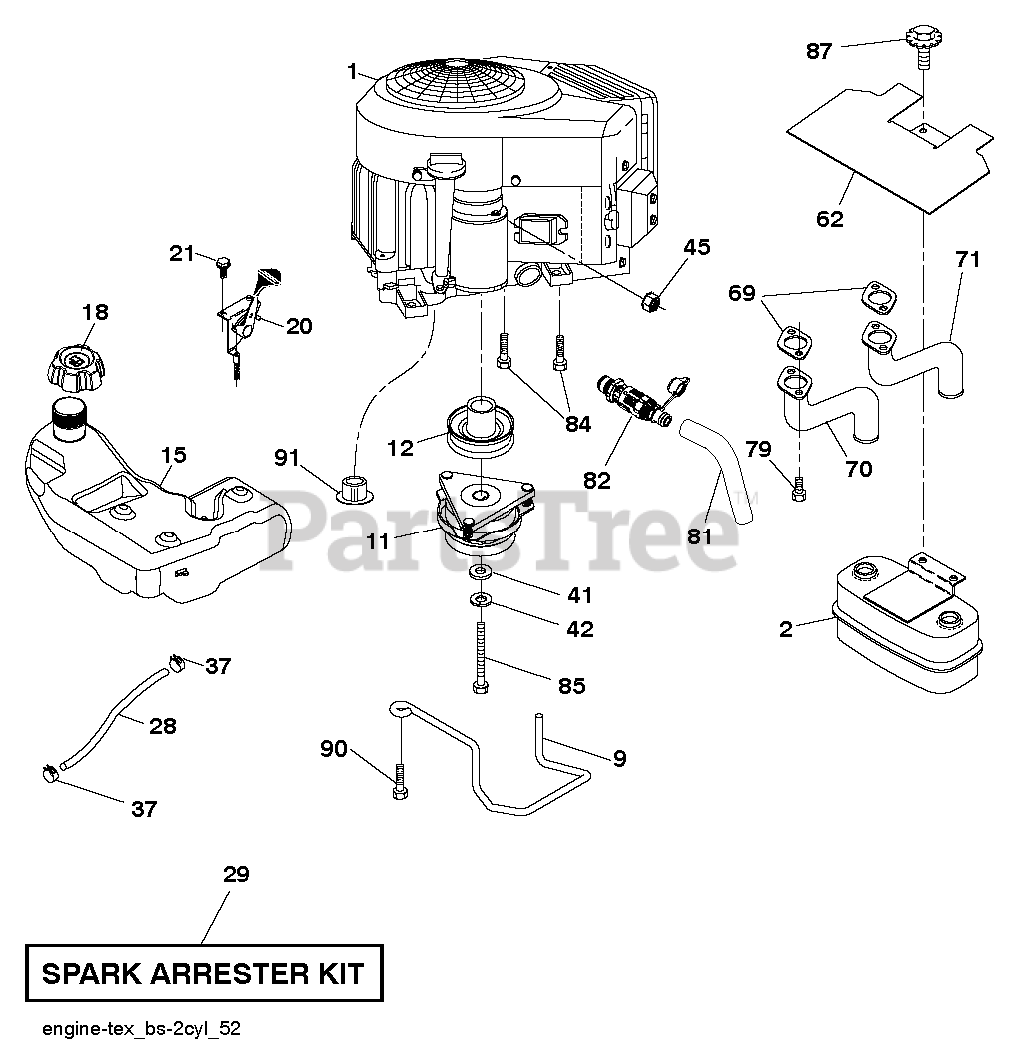

ENGINE Parts Diagram

  • Title

62

Husqvarna 532434017

SHIELD.HEAT.MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 2 left!

0

15

Husqvarna 532438080

RP_TANK.ASSY.3.GAL.EPA
(Superseded to 599306005)

$319.99

$

In Stock, Qty 10

0

87

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$5.99

$

In Stock, Qty 10

0

20

Husqvarna 532423502

CONTROL.TH/CK.COBRA.B&S.TWN.BK

$26.99

$

In Stock, Qty 20+

0

69

Husqvarna 532165391

GASKET.MUFFLER

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

41

Husqvarna 532126197

WASHER

$8.49

$

In Stock, Qty 14

0

91

Husqvarna 532187495

BUSHING.1.375OD

$5.99

$

In Stock, only 2 left!

0

45

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

2

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$53.99

$

In Stock, only 2 left!

0

12

Husqvarna 532405097

PULLEY.ENGINE.TUFFTORQ

$71.99

$

Usually ships in 3-10 days

0

81

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 9

0

71

Husqvarna 581881001

EXHAUST.TUBE.RH.B&S.TWIN.INTEK

Note: RH

$29.99

$

In Stock, only 3 left!

0

85

Husqvarna 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$3.99

$

In Stock, only 2 left!

0

42

Husqvarna 810040700

LOCKWASHER
(Superseded to 596238901)

$3.99

$

In Stock, only 2 left!

0

82

Husqvarna 532428287

VALUE.OIL.DRAIN

$23.99

$

In Stock, Qty 20+

0

70

Husqvarna 581881101

EXHAUST.TUBE.LH.BS/TWIN

Note: LH

$35.99

$

In Stock, only 3 left!

0

84

Husqvarna 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 20+

0

9

Husqvarna 532194320

KEEPER.BELT.ENGINE.4.2
(Superseded to 596501502)

$14.99

$

In Stock, only 2 left!

0

90

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, Qty 20+

0

18

Husqvarna 532439208

CAP.ASM.FL.RITCH.3"E10.SYM.498

$41.99

$

In Stock, only 2 left!

0

1

000000000

Note: Briggs Model No. 44P777-1526-B1 (438925)

$

$

Not available

79

Husqvarna 532183906

SCREW.SOCKET.HEAD.5/16-18
(Superseded to 596134202)

$3.99

$

In Stock, Qty 9

0

21

Husqvarna 532416358

SCREW.#10 X 0.750.BOS
(Superseded to 596321701)

$3.99

$

In Stock, Qty 8

0

11

Husqvarna 532400008

CLUTCH.ELECTRIC.LT.48"*
(Superseded to 532414336)

$395.99

$

In Stock, Qty 9

0

28

Husqvarna 532401135

LINE.FUEL.64"REAR.EMIS
(Superseded to 587044864)

$27.99

$

In Stock, only 2 left!

0
