YTH 2748 (960130010-00) - Husqvarna 48" Yard Tractor (2004-12) Electrical Parts Diagram

48" Yard Tractor

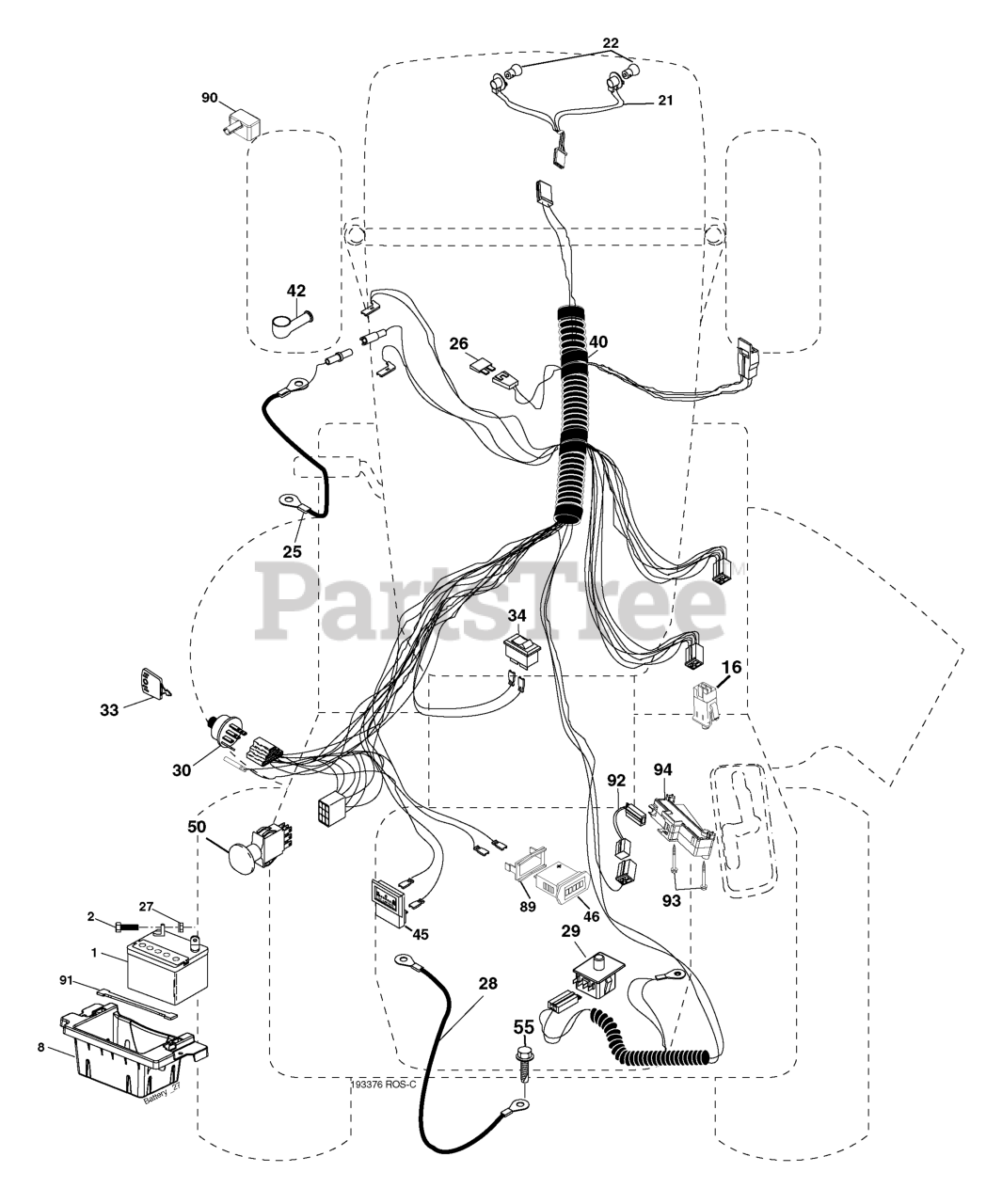

Electrical Parts Diagram

  • Title

1

Husqvarna 532144927

BATTERY 12V .35 AMP
(Superseded to 532123899)

$205.99

$

In Stock, Qty 7

0

2

Husqvarna 874760412

BOLT.HEX.1/4.X.3/4.DICHROMATE

$3.99

$

In Stock, only 2 left!

0

8

Husqvarna 532186491

BOX.BATTERY.MOUNT.FRONT.LT

$

$

Not available

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 20+

0

21

Husqvarna 532183759

HARNESS ASSY LIGHT

$35.99

$

In Stock, only 1 left!

0

22

Husqvarna 532004152

LIGHTBULB

$5.99

$

In Stock, Qty 20+

0

25

Husqvarna 532178909

CABLE.BATTERY.6GA.RED

$39.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532175158

FUSE 20AMP

$5.99

$

In Stock, Qty 5

0

27

Husqvarna 873510400

NUT
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 532145491

CABLE GROUND 6 GA 21" 90T BLK

$10.99

$

In Stock, only 2 left!

0

29

Husqvarna 532192749

SWITCH.SEAT.DP W/RAMPS

$20.99

$

In Stock, Qty 13

0

30

Husqvarna 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$35.99

$

In Stock, Qty 20+

0

33

Husqvarna 532140401

KEY MLD GEN DELTA

$7.49

$

In Stock, Qty 20+

0

34

Husqvarna 532110712

SWITCH LT

$9.49

$

In Stock, Qty 10

0

40

Husqvarna 532193376

HARNESS.IGN.ELECT.STL

$

$

Not available

42

Husqvarna 532154336

COVER.TERMINAL.RED

$7.49

$

In Stock, only 4 left!

0

45

Husqvarna 532122822

AMMETER

$33.99

$

In Stock, only 3 left!

0

46

Husqvarna 532169635

HOUR METER
(Superseded to 532169642)

$

$

Not available

50

Husqvarna 532174651

RP.PTO.SWITCH.8 TERMINAL.BLACK
(Superseded to 582107601)

$31.99

$

In Stock, Qty 20+

0

55

Husqvarna 817490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 539990858)

$

$

Not available

89

Husqvarna 532169639

BRACKET SNAP-IN HOURMETER

$

$

Not available

90

Husqvarna 532180449

COVER TERMINAL
(Superseded to 532435395)

$5.99

$

In Stock, only 1 left!

0

91

Husqvarna 532190270

STRAP.BATTERY.MOUNT.FRONT(2 2)

$8.49

$

In Stock, only 3 left!

0

92

Husqvarna 532193465

HARNESS.PIGTAIL.REVERSE.SWITCH

$4.99

$

Usually ships in 3-10 days

0

93

Husqvarna 532192540

SCREW.PLASTITE
(Superseded to 596039601)

$2.49

$

Usually ships in 3-10 days

0

94

Husqvarna 532191834

MODULE.REVERSE.ROS

$27.99

$

In Stock, only 2 left!

0
