YTH 2748 (960130010-00) - Husqvarna 48" Yard Tractor (2004-12) Engine Parts Diagram

48" Yard Tractor

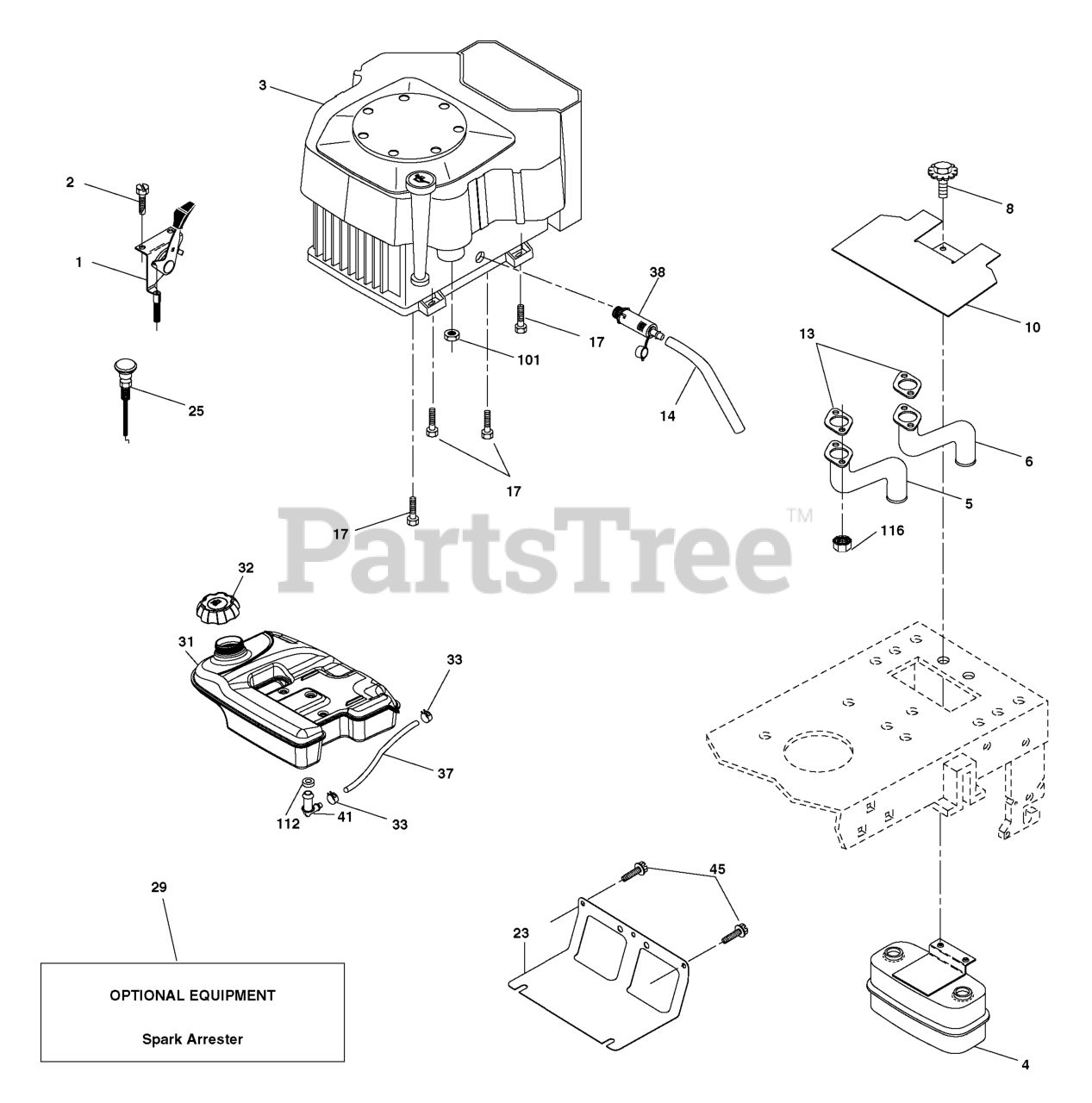

Engine Parts Diagram

  • Title

1

Husqvarna 532190259

CONTROL THROTTLE
(Superseded to 532190192)

$

$

Not available

2

Husqvarna 817720408

SCREW
(Superseded to 596437001)

$3.99

$

In Stock, only 2 left!

0

3

Engine Kohler Model CV740 (Order Parts from Engine Mfg.)

$

$

Not available

4

Husqvarna 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$53.99

$

In Stock, only 2 left!

0

5

Husqvarna 532146699

RP.PIPE-EXHAUST LH
(Superseded to 583954501)

$26.99

$

In Stock, Qty 6

0

6

Husqvarna 532146700

RP.PIPE-EXHAUST RH
(Superseded to 583954801)

$22.99

$

In Stock, only 3 left!

0

8

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$5.99

$

In Stock, Qty 10

0

10

Husqvarna 532146629

RP SHIELD HEAT MUFFLER
(Superseded to 531154901)

$14.99

$

In Stock, only 2 left!

0

13

Muffler Gasket (Order from Eng. Mfgr.)

$

$

Not available

14

Husqvarna 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 9

0

17

Husqvarna 817060624

SCREW 3/8-16 X 1-1/2

$5.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532169837

SHIELD.BROWNING.DBR.GUARD
(Superseded to 531150701)

$27.99

$

In Stock, Qty 7

0

25

Husqvarna 532190260

CHOKE CONTROL
(Superseded to 532190194)

$

$

Not available

29

Husqvarna 532137180

KIT.SPARK ARRESTOR 794945 B&S

$203.99

$

In Stock, only 1 left!

0

31

Husqvarna 532179022

4.0 REAR FUEL TANK

$

$

Not available

32

Husqvarna 532181803

TANK CAP
(Superseded to 532179124)

$37.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

37

Husqvarna 532142158

REPL BY 532 00 85-43
(Superseded to 587044854)

$23.99

$

In Stock, only 4 left!

0

38

Plug Drain Oil Easy (Order from Eng. Mfgr.)

$

$

Not available

41

Husqvarna 532139277

STEM FUEL TANK

$7.49

$

In Stock, Qty 20+

0

45

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, Qty 16

0

101

Husqvarna 532163305

FLANGE NUT
(Superseded to 596433401)

$3.99

$

In Stock, only 3 left!

0

112

Husqvarna 532124952

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

In Stock, Qty 20+

0
