YW 210 - Shindaiwa Yardware String Trimmer Cylinder Parts Diagram

Yardware String Trimmer

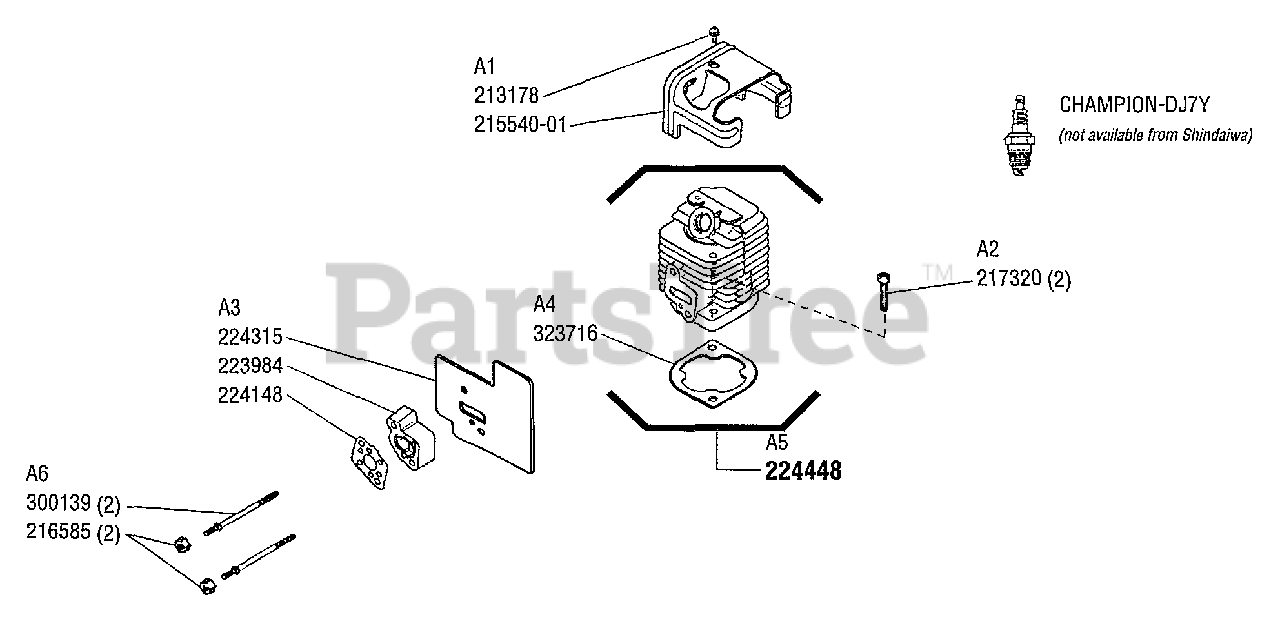

Cylinder Parts Diagram

  • Title

A1-213178

Echo 213178

SCREW, PN M5X8.5 SEMS T
(Superseded to Discontinued)

$

$

Not available

A1-215540-01

Echo 215540-01

COVER, CYLINDER
(Superseded to Discontinued)

$

$

Not available

A2-217320

Echo 217320

SCREW, PN M6X18 TORX SE
(Superseded to Discontinued)

$

$

Not available

A3-224315

Echo 224315

GASKET, SHIELD INSULATOR

$1.99

$

In Stock, only 1 left!

0

A3-223984

Echo 223984

INSULATOR, S/T
(Superseded to Discontinued)

$

$

Not available

A3-224148

Echo 224148

GASKET, CARBURETOR

$1.49

$

Usually ships in 2-4 days

0

A4-323716

Echo 323716

GASKET, CYLINDER

$1.99

$

In Stock, only 1 left!

0

A5-224448

Echo 224448

CYLINDER KIT, USE 224448-01
(Superseded to 224448-01)

$

$

Not available

A6-300139

Echo 300139

STUD, INTAKE M5 X 66.5
(Superseded to Discontinued)

$

$

Not available

A6-216585

Echo 216585

NUT LOCK M5
(Superseded to Discontinued)

$

$

Not available
